Hikvision DS-2XS3Q47G1-LDH 為4 MP ColorVu Solar-Powered Security Camera Setup，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2XS3Q47G1-LDH 香港價格連安裝報價。
| 影像感測器 | 1/3" Progressive Scan CMOS |
|---|---|
| 最低照度 | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| 最大解像度 | 2688 × 1520 |
| 快門速度 | 1/3 s to 1/100,000 s |
| 日夜切換 | 24/7 color imaging |
| 角度調節 | Solar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105° |
| 鏡頭類型 | Fixed focal lens, 4 and 6 mm optional |
| 光圈類型 | Fixed |
| 光圈 | F1.0 4 mm: 2.7 m to ∞ 6 mm: 5.9 m to ∞ 4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89° 6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57° |
| 鏡頭接口 | M12 4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m 6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m |
| 補光類型 | White Light |
| 補光距離 | Performance mode: up to 30 m, proactive mode: up to 10 m |
| 智能補光 | Yes 50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360) Main stream: H.265/ H.264 |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG H.264+ and H.265+: main stream supports under performance mode |
| 視頻碼率 | 32 Kbps to 8 Mbps |
| H.264 類型 | Baseline Profile, Main Profile, High Profile |
| H.265 類型 | Main Profile |
| 碼率控制 | CBR, VBR |
| 感興趣區域 ROI | 1 fixed region for main stream |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 音訊取樣率 | 8 kHz/16 kHz |
| 環境噪音過濾 | Yes |
| 音訊壓縮 | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| 同時取流 | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK |
| 網絡協議 | TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP Up to 32 users 3 user levels: administrator, operator, and user |
| 網絡儲存 | Auto Network Replenishment (ANR) |
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11, |
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Uplink and Downlink Data Rate | Cat 4, uplink: 50 Mbps, downlink: 150 Mbps |
| SIM Card Type | Micro SIM EU: LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 WCDMA: B1/B5/B8 GSM: B3/B5/B8 LA: |
| Frequency | LTE-TDD: B38/B40 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66 WCDMA:B1/B2/B3/B4/B5/B8 GSM: B2/B3/B5/B8 US: LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71 WCDMA: B2/B4/B5 |
| 標準 | LTE-TDD, LTE-FDD, WCDMA, GSM |
| 信噪比 SNR | ≥ 52 dB |
| 隱私遮蔽 | 4 programmable polygon privacy masks |
| 寬動態 WDR | 120 dB |
| 日夜模式 | Day, Night, Auto, Schedule |
| 影像增強 | BLC, HLC, 3D DNR Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Built-in eMMC storage, up to 64 GB, |
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, For eMMC storage, 50 GB is available for recording. |
| 內置麥克風 | Yes |
| Built-in Speaker | Yes |
| 重設鍵 | Yes Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error Upload to NAS/memory card, notify surveillance center, trigger recording, trigger capture, audible warning Power Consumption and Current: Typical power scenarios: 1.85 W (4G working) Standby scenarios: 40 mW Max. power consumption: 6 W Power Supply: |
| 供電 | 12 VDC ± 25% *For debugging only 40 W (deviation: ± 2 W) Solar panels Power Interface: Power supply interface: Ø 5.5 mm coaxial power plug Extened solar panel: four-core aviation connector Camera: Plastic, Solar panel: Metal |
| 儲存環境 | -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Braz |
| 一般功能 | Heartbeat, mirror, flash log -20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing) |
| 尺寸 | 686.6mm × 442.6mm × 760 mm (27.03" × 17.42" × 29.9") |
| 包裝尺寸 | 902 mm × 342 mm × 440 mm (35.5" × 13.5" × 17.3") |
| 重量 | Approx. 11.70 kg (25.8 lb.) |
| 連包裝重量 | Approx. 15.01 kg (33.1 lb.) |
| Battery Type | Ternary Lithium |
| 容量 | 8.4 Ah × 2 packs |
| Max. Charging Voltage | 12.6 V Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F) |
| Battery Voltage | 9 V to 12.6 V Performance mode: 3.6 days, |
| Cycle Lifetime | Proactive mode: 6 days, Standby mode: 30 days |
| Battery Life | More than 500 cycles |
| Battery Weight | Approx. 1400 g (3.1 lb.) CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, *IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region. IC ID (RSS-247(BT or 2.4G)), CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), |
| RF | 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G) *IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region. CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1, *CE and LOA certifications are only for the device sold in the European region. CE-RoHS: 2011/65/EU, WEEE: 2012/19/ |
| 防護等級 | IP65: IEC60529-2013 |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

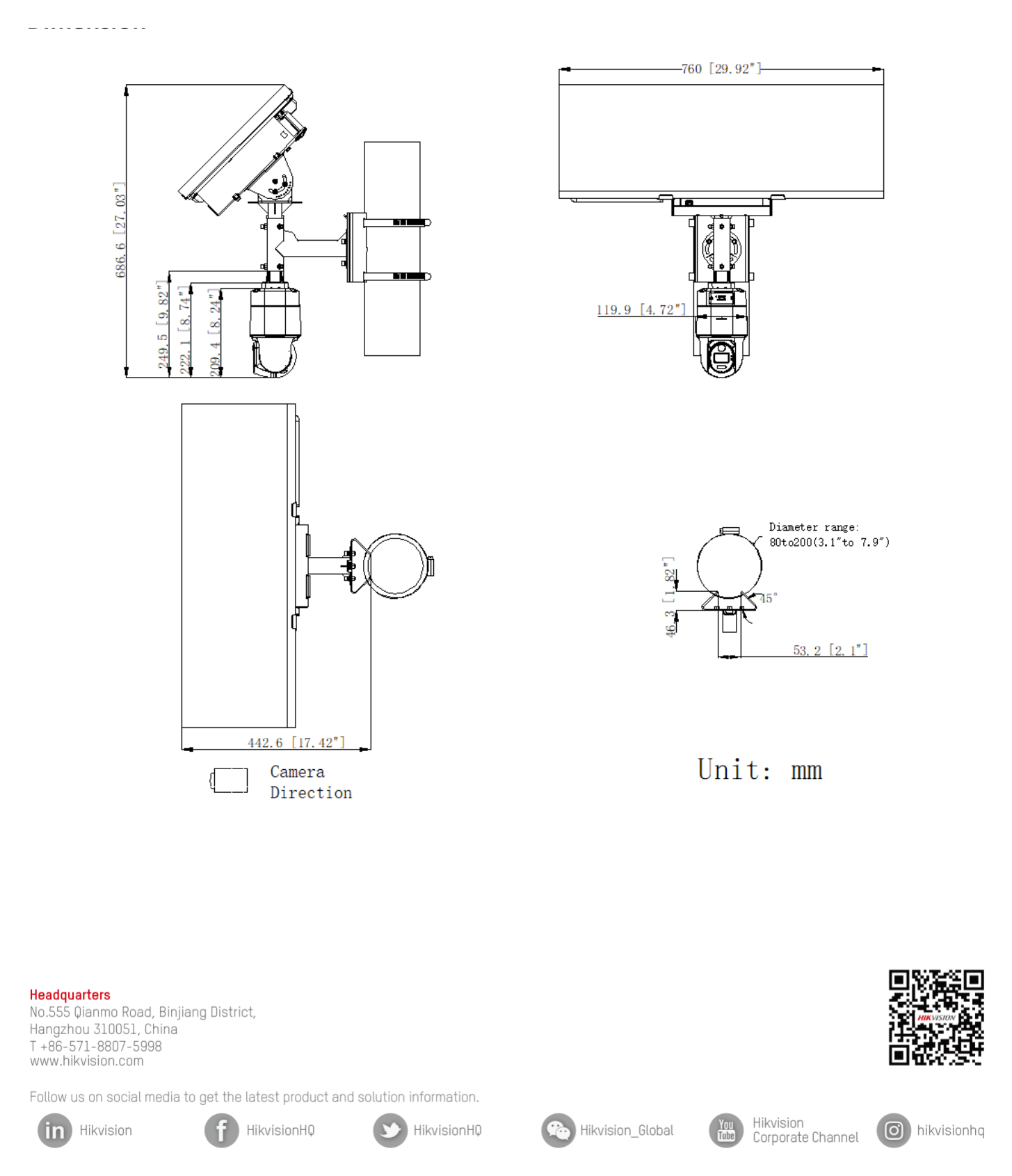

686.6mm × 442.6mm × 760 mm (27.03" × 17.42" × 29.9")｜重量 Approx. 11.70 kg (25.8 lb.)｜Unit: mm
DS-2XS3Q47G1-LDH Hikvision 4 MP ColorVu Solar-Powered Security Camera Setup亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2XS3Q47G1-LDH 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，DS-2XS3Q47G1-LDH 係 1/3" Progressive Scan CMOS，DS-2XE6885G0-ILZHS 係 1/2″ Progressive Scan CMOS；最大解像度方面，DS-2XS3Q47G1-LDH 係 2688 × 1520，DS-2XE6885G0-ILZHS 係 3840 × 2160；快門速度方面，DS-2XS3Q47G1-LDH 係 1/3 s to 1/100,000 s，DS-2XE6885G0-ILZHS 係 1 s to 1/100,000 s。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2XE6885G0-ILZHS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2XS3Q47G1-LDH 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
