| 影像感測器 | 1/2.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| 最低照度 | Color: 0.002 Lux @ (F1.2, AGC ON) |
|---|
| 角度調節 | Pan: -20° to 20°,tilt: -20° to 20°,rotate: 0° to 360° |
|---|
| 鏡頭類型 | Fixed focal lens, 2.8 and 4 mm optional 2.8 mm, horizontal FOV 109.0°, vertical FOV 60.0°, diagonal FOV 128.3° 4 mm, horizontal FOV 82.8°, vertical FOV 45.1°, diagonal FOV 98° |
|---|
| 光圈類型 | Fixed 2.8 mm: 0.43 m to ∞ 4 mm: 0.63 to 11.9 m 50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720) |
|---|
| 主碼流 | 60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720) *High frame rate is supported under certain settings. 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Main stream: H.265/H.264 /H.265+/H.264+, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 8 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR,VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 1 fixed region for main stream and sub-stream |
|---|
| Target Cropping | Yes TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, |
|---|
| 網絡協議 | UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets |
|---|
| API | Open Network Video Interface (Profile S, Profile G),ISAPI,SDK,ISUP Up to 32 users 3 user levels: administrator, operator, and user Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address) |
|---|
| 網絡儲存 | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
|---|
| 客戶端 | iVMS-4200,Hik-Connect,Hik-Central |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
|---|
| 圖像參數切換 | Yes Rotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser |
|---|
| 日夜模式 | Day,Night,Auto,Schedule |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 信噪比 SNR | ≥ 50 dB |
|---|
| 影像增強 | BLC,HLC,3D DNR,Defog |
|---|
| 網絡接口 | 1 RJ45 10 M/100 M self-adaptive Ethernet port Motion detection (support alarm triggering by specified target types (human and |
|---|
| 基本事件 | vehicle)),video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) scene change detection,defocus detection, unattended baggage detection,object removal detection Upload to FTP/NAS,notify surveillance center,send email,trigger recording,trigger capture Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specif |
|---|
| 材質 | Metal |
|---|

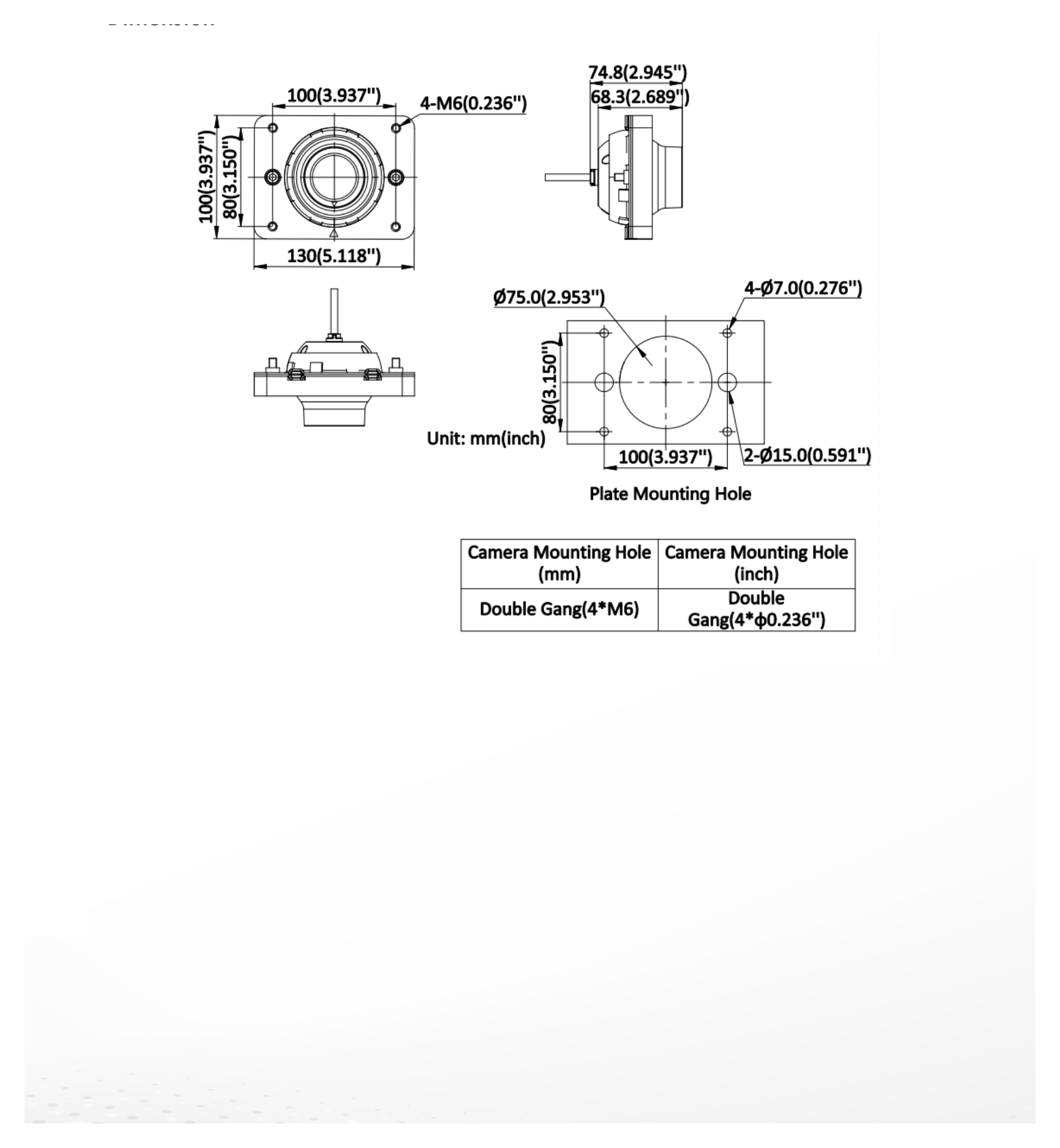

| 尺寸 | 130 mm × 100 mm × 74.8 mm (5.12" × 3.94" × 2.94") |
|---|
| 包裝尺寸 | 245 mm × 195 mm × 205 mm (9.65" × 7.68" × 8.07") |
|---|
| 重量 | Approx. 0.755 kg (1.66 lb.) |
|---|
| 連包裝重量 | Approx. 2.134 kg (4.7 lb.) |
|---|
| 儲存環境 | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Roma nian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditiona |
|---|
| Heater | Yes CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 CE-LVD: EN 62368-1: 2014/A11: 2017, CB: IEC 62368-1: 2014+A11 |
|---|
| 防護等級 | IP68: IEC 60529-2013 |
|---|
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018),C5 |
|---|
