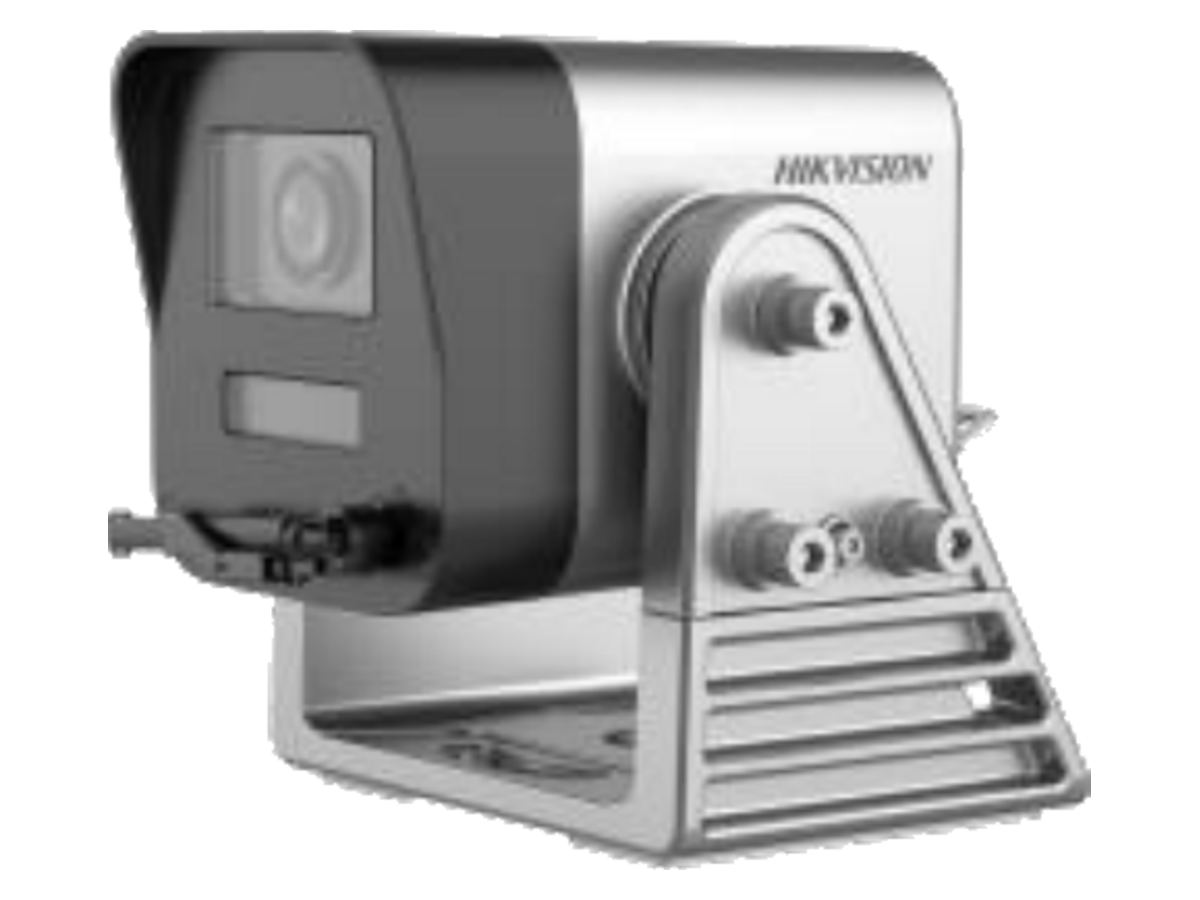

Hikvision DS-2XV6626G0-LIZHRS 為2 MP Gantry Crane Varifocal Network Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-2XV6626G0-LIZHRS 香港價格連安裝報價。
| 影像感測器 | 1/1.8" Progressive Scan CMOS |
|---|---|
| 最大解像度 | 1920 × 1080 |
| 快門速度 | 1 s to 1/100,000 s Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light,B/W: 0.0001 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR |
| 日夜切換 | IR cut filter |
| 角度調節 | Pan: -15° to 15°,tilt: -120°to 45° |
| 對焦 | Auto,Semi-auto,Manual 2.8 to 12 mm, horizontal FOV 99.6° to 39.8°, vertical FOV 52.3° to 22.4°, diagonal FOV 119.9° to 45.7° 8 to 12 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5° |
| 光圈類型 | Auto-iris |
| 光圈 | 2.8 to 12 mm: Max. F1.47, 8 to 32 mm: Max. F1.7 |
| 補光類型 | IR,White Light 2.8 to 12 mm: IR: up to 50 m, White Light: up to 30 m 8 to 32 mm: IR: up to 80 m, White Light: up to 50 m System memory: 150 MB |
| Open Resources | Smart RAM: 1800 MB Flash: 3200 MB |
| Computing Power | 8 TOPS |
| Deep Learning Structure | Caffe,PyTorch,TensorFlow |
| Programming Language | C,C++ 50 Hz: 50 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 60 fps (1920 × 1080, 1280 × 960, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Main stream: H.265/H.264/H.265+/H.264+ |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
| H.265 類型 | Main Profile |
| 碼率控制 | CBR,VBR |
| SVC 分級編碼 | H.264 and H.265 encoding |
| 感興趣區域 ROI | 5 fixed regions for main stream |
| Target Cropping | Yes |
| 環境噪音過濾 | Yes |
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
| 音訊壓縮 | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Type | Mono sound Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| 同時取流 | Up to 20 channels |
| API | ONVIF, ISAPI, SDK, ISUP TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, |
| 網絡協議 | UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets Up to 32 users 3 user levels: administrator, operator, and user NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11, |
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
| 寬動態 WDR | 120 dB |
| 防抖 | EIS |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bi t bmp format. |
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
| 影像增強 | BLC,HLC,3D DNR,Defog |
| 圖像參數切換 | Yes |
| 信噪比 SNR | ≥ 50 dB |
| 隱私遮蔽 | 8 programmable polygon privacy masks |
| Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| 網絡接口 | 1 1000 M self-adaptive Ethernet port, 8-core M12 aviation plug |
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 1 KΩ, interface type: non-equilibrium 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| 警報 | 1 input, 1 output (max. 12 VDC, 30 mA) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Motion detection (support alarm triggering by specified target types (human and |
| 基本事件 | vehicle)), video tampering alarm, exception (network disconnected, IP address con flict, illegal login, HDD full, HDD error) Scene change detection, audio exception detection, defocus detection, unattended Smart Event baggage detection, object removal detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm Linkage output, trigger recording, trigger capture Li |
| 供電 | protection, PoE: IEEE 802.3at, 42.5 V to 57 V, 0.56 A to 0.42 A, Class 4 |
| 材質 | ADC12 |
| 尺寸 | 155 mm × 177 mm × 171 mm (6.1" × 7.0" × 6.7") |
| 包裝尺寸 | 295 mm × 275 mm × 260 mm (11.6" × 10.8" × 10.2") |
| 重量 | Approx. 2.525 kg (5.57 lb.) |
| 連包裝重量 | Approx. 3.535 kg (7.79 lb.) |
| 儲存環境 | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) Conditions 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Sloven |
| Wiper | -R: Yes |
| 一般功能 | Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | CB: IEC 62368-1: 2014 |
| 防護等級 | IP68: IEC 60529:1989+AMD1:1999+AMD2:2013 IATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Transport Certification Dangerous Goods Code, Railway Dangerous Goods List |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

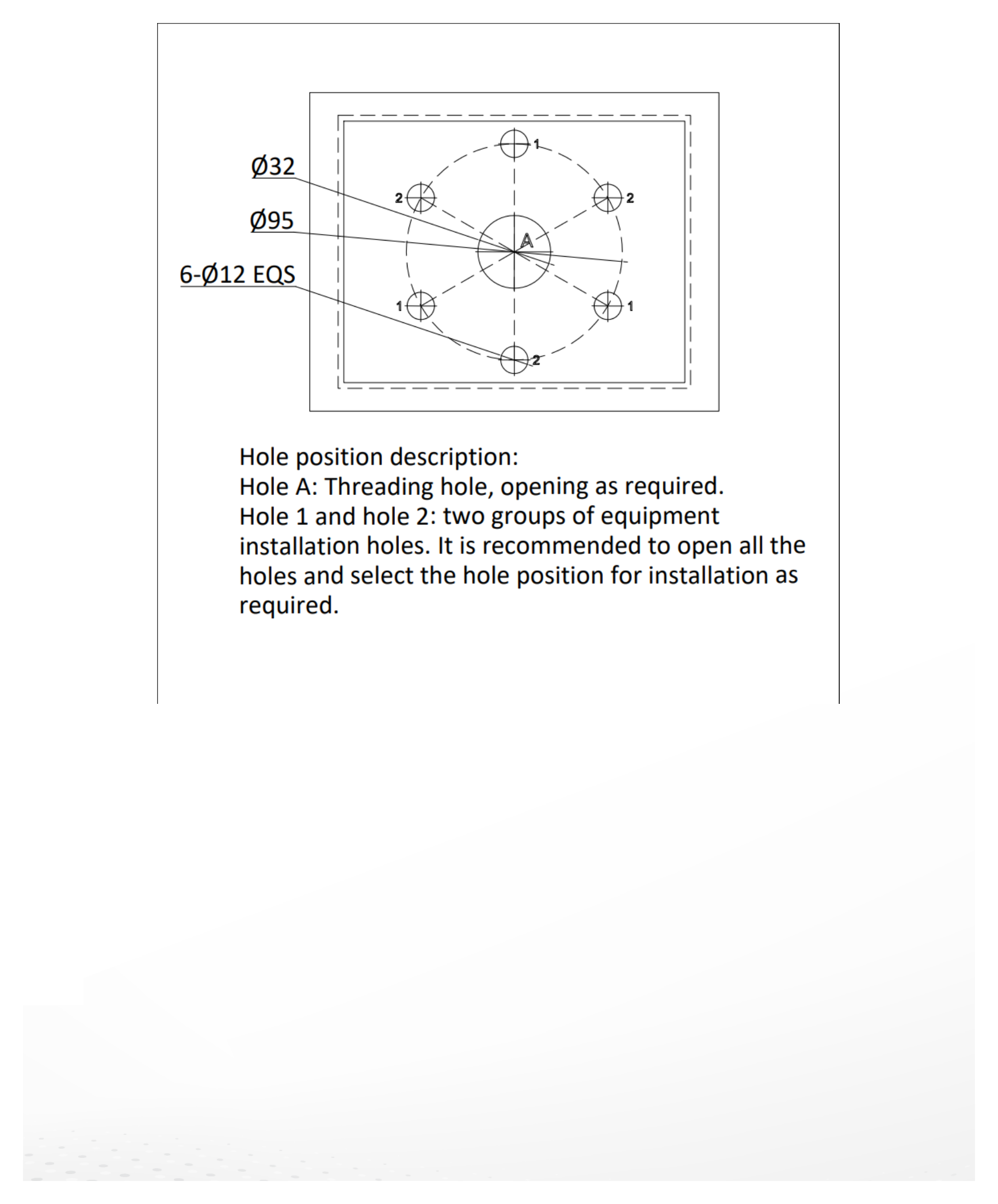

155 mm × 177 mm × 171 mm (6.1" × 7.0" × 6.7")｜重量 Approx. 2.525 kg (5.57 lb.)｜Unit: mm
DS-2XV6626G0-LIZHRS Hikvision 2 MP Gantry Crane Varifocal Network Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-2XV6626G0-LIZHRS 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，DS-2XV6626G0-LIZHRS 係 1/1.8" Progressive Scan CMOS，DS-2DF8425IXG1-ELWY 係 1/1.8" progressive scan CMOS；最大解像度方面，DS-2XV6626G0-LIZHRS 係 1920 × 1080，DS-2DF8425IXG1-ELWY 係 2688 × 1520；視頻碼率方面，DS-2XV6626G0-LIZHRS 係 32 Kbps to 16 Mbps，DS-2DF8425IXG1-ELWY 係 32 Kbps to 16384 Kbps。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-2DF8425IXG1-ELWY 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-2XV6626G0-LIZHRS 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
