| 最大解像度 | 2688 × 1520 |
|---|
| 快門速度 | 1 s to 1/100,000 s 2.8 to 12 mm/8 to 32 mm: Color: 0.0005 Lux @ (F1.2, AGC ON), 0 Lux with light, B/W: |
|---|
| 最低照度 | 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR; 4.8 to 120mm: Color: 0.001 Lux @ (F1.2, AGC ON), 0 Lux with light, B/W: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|---|
| 日夜切換 | IR cut filter |
|---|
| 角度調節 | Pan: -15° to 15°,tilt: -120°to 45° |
|---|
| 對焦 | Auto,Semi-auto,Manual 2.8 to 12 mm, horizontal FOV 99.6° to 39.8°, vertical FOV 52.3° to 22.4°, diagonal FOV 119.9° to 45.7° 8 to 12 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5° 4.8 to 120 mm, horizontal FOV 53.3° to 2.6°, vertical FOV 30.6° to 1.5°, diagonal FOV 60.5° to 3° |
|---|
| 光圈類型 | Auto-iris |
|---|
| 光圈 | 2.8 to 12 mm: Max. F1.47, 8 to 32 mm: Max. F1.7, 4.8 to 120 mm: Max. F1.7 |
|---|
| 補光類型 | IR,White Light 2.8 to 12 mm: IR: up to 50 m, White Light: up to 30 m |
|---|
| 補光距離 | 8 to 32 mm: IR: up to 80 m, White Light: up to 50 m 4.8 to 120 mm: IR: up to 100 m, White Light: up to 50 m System memory: 150 MB |
|---|
| Open Resources | Smart RAM: 1800 MB Flash: 3200 MB |
|---|
| Computing Power | 8 TOPS |
|---|
| Deep Learning Structure | Caffe,PyTorch,TensorFlow |
|---|
| Programming Language | C,C++ 50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) 50 Hz: 10 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Main stream: H.265/H.264/H.265+/H.264+ |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 碼率控制 | CBR,VBR |
|---|
| SVC 分級編碼 | H.264 and H.265 encoding |
|---|
| 感興趣區域 ROI | 5 fixed regions for main stream |
|---|
| Target Cropping | Yes |
|---|
| 環境噪音過濾 | Yes |
|---|
| 音訊取樣率 | 8 kHz/16 kHz/32 kHz/48 kHz |
|---|
| 音訊壓縮 | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
|---|
| Audio Type | Mono sound Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
|---|
| 同時取流 | Up to 20 channels |
|---|
| API | ONVIF, ISAPI, SDK, ISUP TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, |
|---|
| 網絡協議 | UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets Up to 32 users 3 user levels: administrator, operator, and user NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), |
|---|
| 網絡儲存 | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
|---|
| 客戶端 | iVMS-4200, Hik-Connect, Hik-Central Plug-in required live view: IE 10, IE 11, |
|---|
| 瀏覽器 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ Rotate mode, saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
|---|
| 寬動態 WDR | 120 dB |
|---|
| 防抖 | EIS |
|---|
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
|---|
| 日夜模式 | Day,Night,Auto,Schedule,Alarm Trigger |
|---|
| 影像增強 | BLC,HLC,3D DNR,Defog |
|---|
| 圖像參數切換 | Yes |
|---|
| 信噪比 SNR | ≥ 52 dB |
|---|
| 隱私遮蔽 | 8 programmable polygon privacy masks |
|---|
| Video Output | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
|---|
| 網絡接口 | 1 1000 M self-adaptive Ethernet port, 8-core M12 aviation plug |
|---|
| 機身儲存 | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB non-equilibrium 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
|---|
| 警報 | 1 input, 1 output (max. 12 VDC, 30 mA) |
|---|
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) Motion detection (support alarm triggering by specified target types (human and |
|---|
| 基本事件 | vehicle)), video tampering alarm, exception (network disconnected, IP addr ess conflict, illegal login, HDD full, HDD error) Scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture Line crossing, intrusi |
|---|
| 供電 | protection, PoE: IEEE 802.3at, 42.5 V to 57 V, 0.56 A to 0.42 A, Class 4 |
|---|
| 材質 | Front cover: Metal, body: Metal, bracket: Metal |
|---|

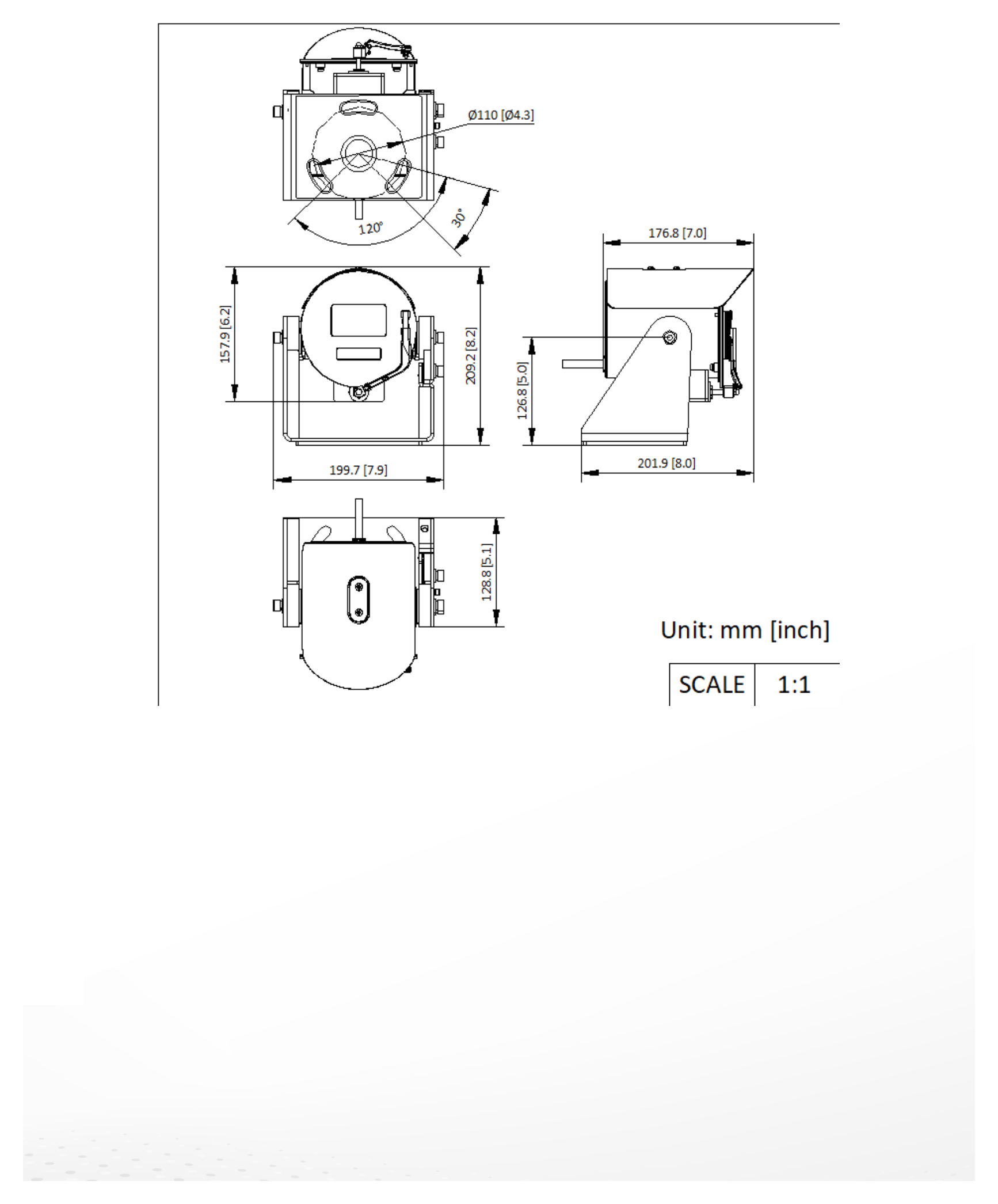

| 尺寸 | 199.7 mm × 201.9 mm × 209.2 mm (7.9" × 8" × 8.2") |
|---|
| 包裝尺寸 | 340 mm × 298 mm × 290 mm (13.4" × 11.7" × 11.4") |
|---|
| 重量 | Approx. 3000 g (6.61 lb.) |
|---|
| 連包裝重量 | Approx. 4000 g (8.82 lb.) |
|---|
| 儲存環境 | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or les s (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditiona |
|---|
| Wiper | -R: Yes |
|---|
| 一般功能 | Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
|---|
| Safety | CB: IEC 62368-1: 2014 |
|---|
| 防護等級 | IP68: IEC 60529:1989+AMD1:1999+AMD2:2013 |
|---|
| Anti-Corrosion Protection | NEMA 4X (NEMA 250-2018),C5 IATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Transport Certification Dangerous Goods Code, Railway Dangerous Goods List |
|---|
