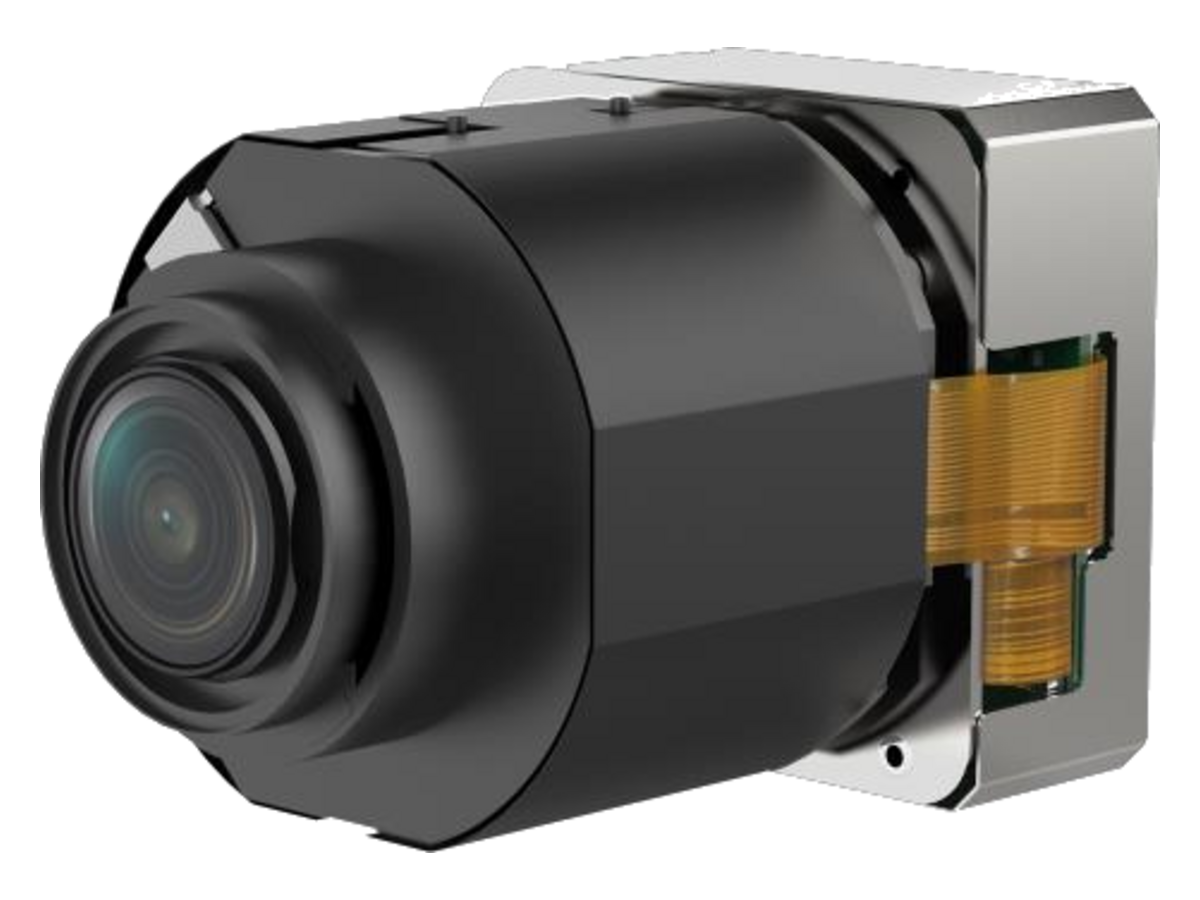

| 影像感測器 | 1/2.8" progressive scan CMOS |
|---|
| 最低照度 | color: 0.005Lux @ (F1.6, AGC ON); B/W: 0.01Lux @(F1.6, AGC ON) main stream: 50Hz: 25fps (1920×1080, 1280×960, 1280×720); 60Hz: 30fps |
|---|
| Resolution and Frame Rate | (1920×1080, 1280×960, 1280×720); sub-stream: 50Hz: 25fps (704×576, 640×480, 352×288); 60Hz: 30fps (704×480, 640×480, 352×240) |
|---|
| 視頻壓縮 | H.264, H.265 |
|---|
| 音訊壓縮 | G.722.1, G.711-a law, G.711-u law, MP2L2, G.726, PCM |
|---|
| White Balance | manual, auto 1, auto 2, sodium lamp, indoor, outdoor, fluorescent lamp |
|---|
| Gain Control | auto, manual |
|---|
| 信噪比 SNR | > 52dB |
|---|
| BLC | yes |
|---|
| Regional Focus | yes |
|---|
| Shutter | 1/1s to 1/30,000s |
|---|
| 日夜切換 | Auto/Color/BW/Scheduled-Switch/Triggered by Alarm Input |
|---|
| Digital Zoom | 12 × |
|---|
| 對焦 | auto, semi-auto, manual |
|---|
| Regional Exposure | yes |
|---|
| 視頻碼率 | 32Kbps to 16Mbps |
|---|
| Heartbeat | yes |
|---|
| Exposure Mode | auto, iris priority, shutter priority, manual |
|---|
| 日夜模式 | IR Cut Filter |
|---|
| 焦距 | 2.8 mm to 12 mm, 4 × optical |
|---|
| 變焦速度 | approx. 1.7 s (optical, wide-tele) |
|---|
| 光圈 | F1.6 to F2.7 Horizontal field of view: 107.4° to 39.8°, vertical field of view: 55.7° to 21.8°, diagonal field of view: 131.4° to 44.6° |
|---|
| 影像增強 | WDR, HLC |
|---|
| Smart Encoding | low bit rate, ROI |
|---|
| Exception Detection | illegal login |
|---|
| 斷電記憶 | yes motion detection, video tampering detection, audio exception detection, intrusion detection, line crossing detection IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, Bonjour open-ended, support ONVIF and ISAPI, support HIKVISION SDK and third-party management platform |
|---|
| 瀏覽器 | IE 8 to 11, Chrome 31.0+, Firefox 30.0+, Safari 11+ |
|---|
| 同時取流 | up to 20 channels |
|---|
| User | up to 32 users; 3 levels: administrator, operator, and user Security Measures encryption; IEEE 802.1x port-based network access control |
|---|
| 電源接口 | DC12V ±10% |
|---|
| 通訊接口 | 10 M/100 M ethernet interface |
|---|
| Audio I/O | 1-ch audio input and 1-ch audio output |
|---|
| Alarm I/O | 1-ch alarm input and 1-ch alarm output |
|---|
| Video Output | no |
|---|
| SDI Output | no |
|---|
| RS-485 | yes |
|---|
| 機身儲存 | yes (no on-board MicroSD card socket) 36pin FFC (including network interface, RS485, RS232,SDHC, alarm in/out, line in/out, power supply) |
|---|
| Communication | RS232 interface, HIKVISION protocol, RS485 interface, Pelco protocol |
|---|
| 功耗 | static: 2.5W; dynamic: 4.5W |
|---|
| Operating Conditions | temperature: -10 °C to 60 °C (14°F to 140°F); humidity: ＜90% |
|---|

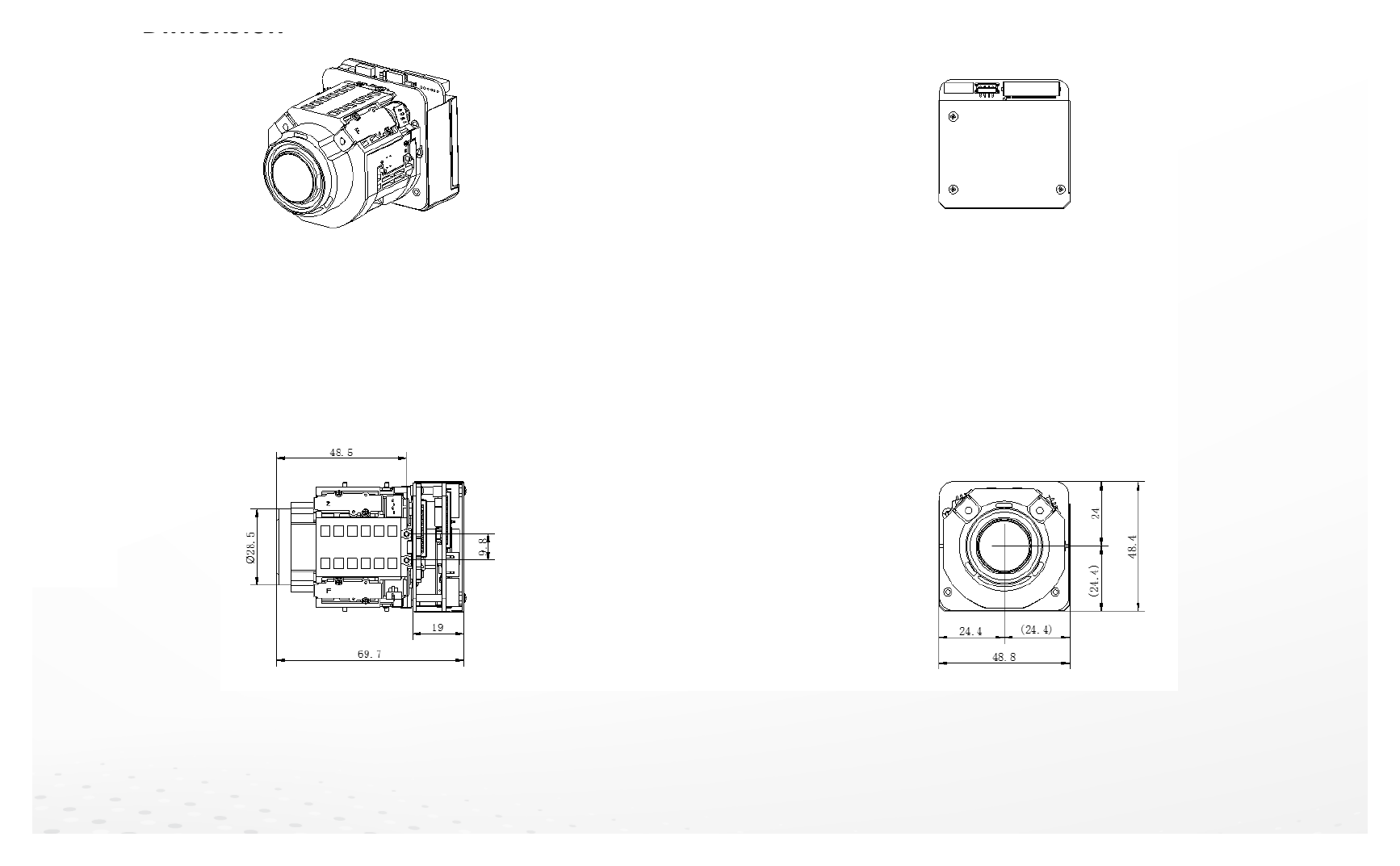

| 尺寸 | 49 mm×48 mm×70 mm |
|---|
| 重量 | 170g |
|---|
