| 機身 | Metal material |
|---|
| 淨重 | 2.98 kg (6.57 lb) |
|---|

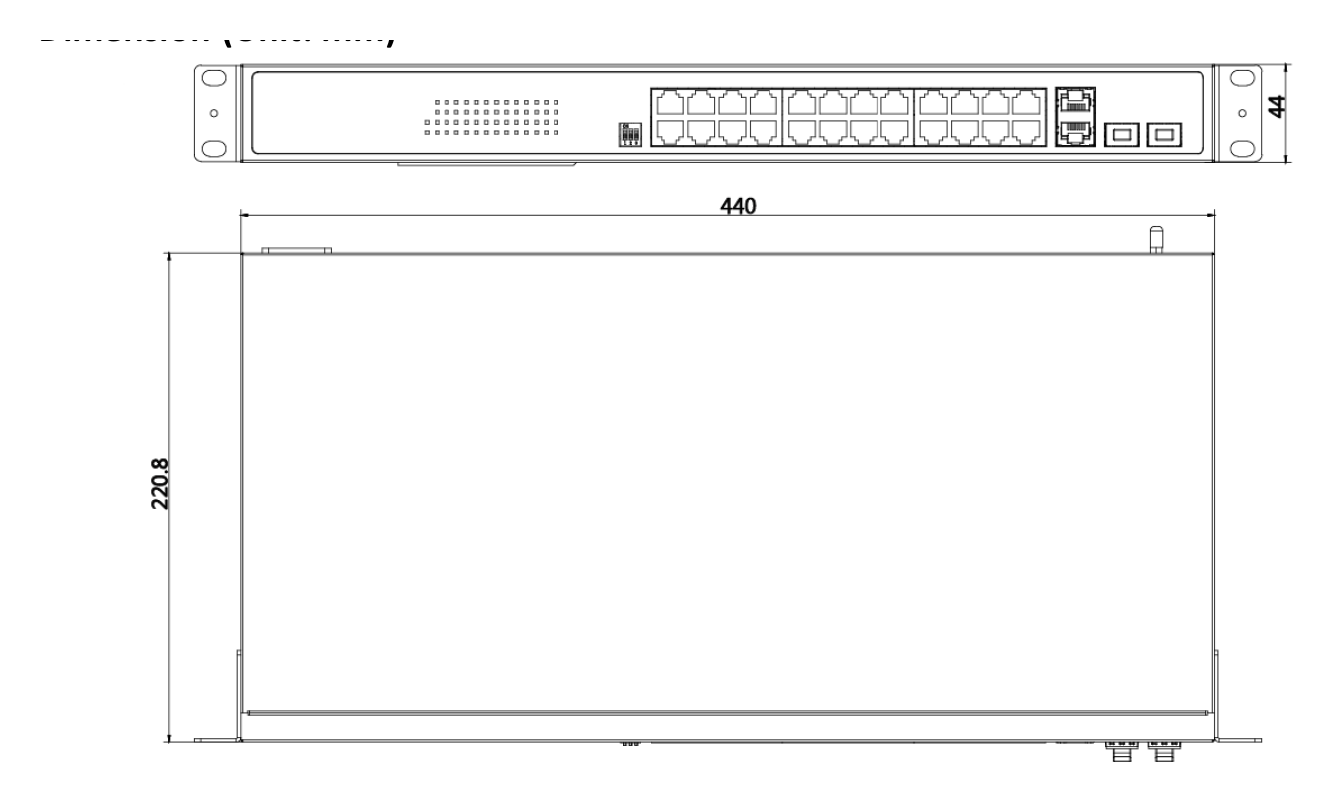

| 尺寸 | 440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'') |
|---|
| 工作溫度 | 0 °C to 45 °C (32 °F to 113 °F) |
|---|
| 儲存溫度 | -40 °C to 85 °C (-40 °F to 185 °F) |
|---|
| 工作濕度 | 5% to 95% (no condensation) |
|---|
| 相對濕度 | 5% to 95% (no condensation) |
|---|
| 供電 | 100~240 V AC, 50/60 Hz, Max. 6.5 A |
|---|
| 最大功耗 | 400 W |
|---|
| 閒置功耗 | 30 W |
|---|
| 安裝方式 | Rack (equipped with mounting ears) |
|---|
| 防雷 | 6 kV |
|---|
| Ports | 24 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port |
|---|
| MAC 位址表 | 8K |
|---|
| 交換容量 | 56 Gbps Parameters |
|---|
| 包轉發率 | 41.664 Mpps |
|---|
| 內部緩存 | 4.1 Mbits |
|---|
| PoE 標準 | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt Hi-PoE: Ports 1 to 4 PoE Port |
|---|
| PoE Power | PoE: Ports 1 to24 |
|---|
| Supply | PoE Power Pin 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
|---|
| 單埠最大功率 | Ports 1 to 4: 90 W Ports 5 to 24: 30 W |
|---|
| PoE 功率預算 | 370 W Ports 21 to 24: up to 300 m. Long Range Long range performance may vary depend on camera model or cable condition. |
|---|
| Dialing | Ports 1 to 24: port isolation mode to improve network security. |
|---|
| Function | Port Isolation Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
|---|
| PoE Watchdog | Ports 1 to 24: auto detect and restart the cameras that do not respond. FCC (47 CFR Part 15, Subpart B),CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: |
|---|
| Approval | 2015) UL (UL 60950-1),CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|---|
| Chemistry | CE-RoHS (2011/65/EU) |
|---|
