HIKVISION DS-3E1105P-EI-V2 安裝、保養、維修

Name: HIKVISION DS-3E1105P-EI-V2 5口非網管交換機
Brand: Hikvision
SKU: DS-3E1105P-EI-V2

產品簡介

Hikvision DS-3E1105P-EI 為4 Port Fast Ethernet Smart PoE Switch，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-3E1105P-EI 香港價格連安裝報價。

4個PoE供電口＋1個上行口，一條網線就可以幫IP Cam同埠一齊供電同傳數據，唔使額外拉電源，慳晒佈線工夫
單埠最大30W、全機PoE總功率預算60W，普通球機/半球機隨便駁，就算駁埋帶雲台或紅外強燈嘅型號都夠力
金屬機殼設計，耐用穩陣，適合長期24小時運作嘅工程現場，唔怕日曬雨淋放喺閣樓或機櫃都撐得住
支援VLAN分流同Port Isolation埠隔離，等辦公網同監控網分開行，安全性同穩定性都提升
6kV防雷設計，喺香港夏天多雷雨嘅環境下可以減低因為雷擊而燒壞設備嘅風險，慳返日後維修錢

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

詳細規格

機身	Metal material
淨重	0.26 kg (0.573 lb)
毛重	0.75 kg (1.65 lb)

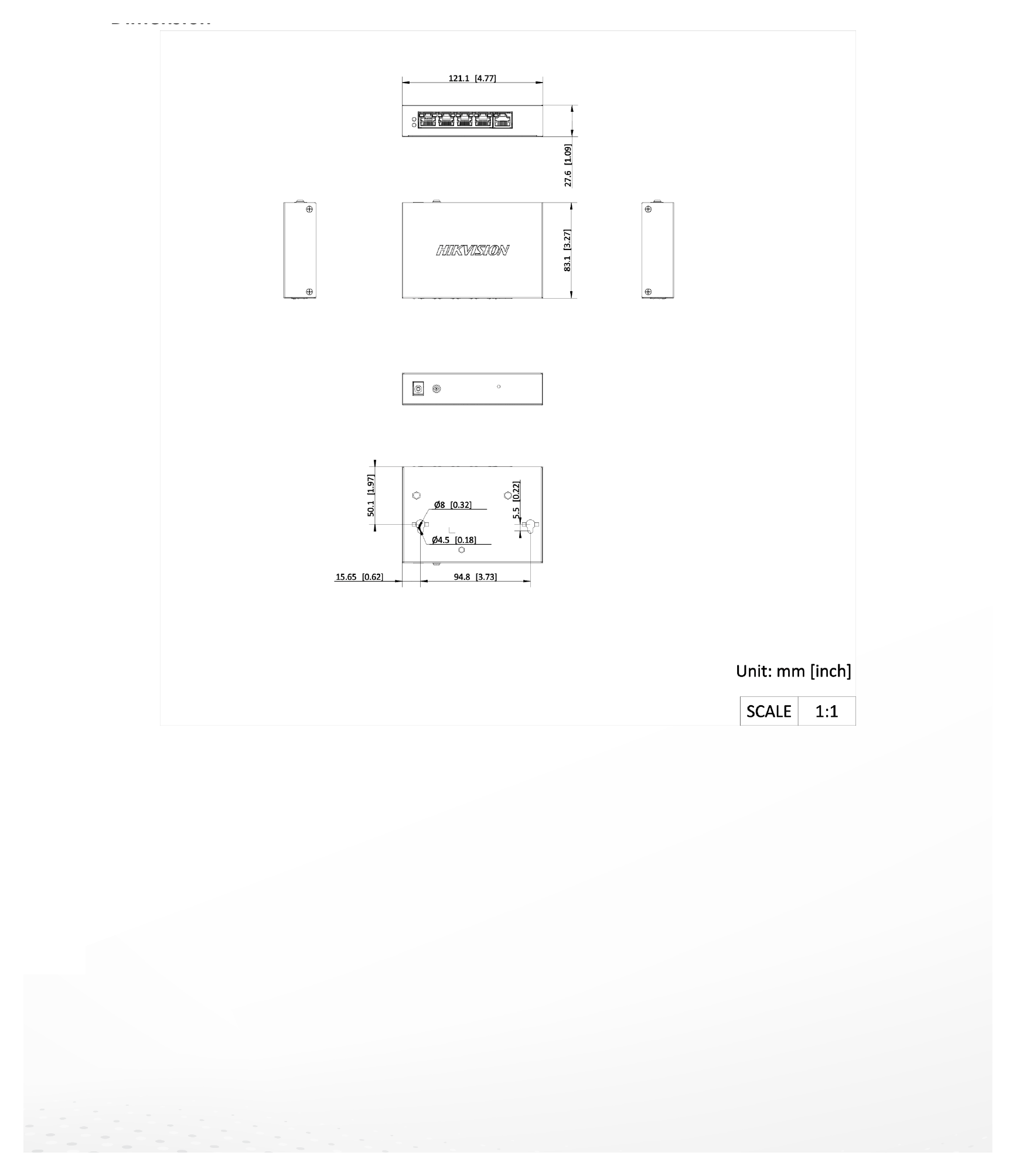

尺寸	121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
工作溫度	0 °C to 40 °C (32 °F to 104 °F)
儲存溫度	-40 °C to 85 °C (-40 °F to 185 °F)
工作濕度	5% to 95% (no condensation)
相對濕度	5% to 95% (no condensation)
供電	54 V DC, 1.2 A
安裝方式	Desk-Mounted,Wall-Mounted
最大功耗	65 W
閒置功耗	0.9 W
防雷	6 kV
Ports	4 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
MAC 位址表	2K
交換容量	1 Gbps
包轉發率	0.74 Mpps
內部緩存	768 Kbits
PoE 標準	IEEE 802.3af,IEEE 802.3at
PoE 供電腳位	End-span: 1/2(-), 3/6(+)
PoE 埠	PoE: Ports 1 to 4
單埠最大功率	30 W
PoE 功率預算	60 W Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. Ports 1 to 2: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient. Ports 1 to 4: port isolation mode to improve network security
Port Isolation	Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 4: auto detect and restart the cameras that do not respond. Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 1 aggregation group(s). Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network comm
VLAN	Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. HPP 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port l
System Maintenance	Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating. CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:
Chemistry	CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
