Name: HIKVISION DS-3E1506P-EI/M-4P1T1F 4 Port Gigabit Smart PoE Switch
Brand: Hikvision
SKU: DS-3E1506P-EI/M-4P1T1F

產品簡介

Hikvision DS-3E1506P-EI/M-4P1T1F 為4 Port Gigabit Smart PoE Switch，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-3E1506P-EI/M-4P1T1F 香港價格連安裝報價。

機身：Metal material
淨重：0.58 kg (1.28 lb)
毛重：1.37 kg (3.02 lb)

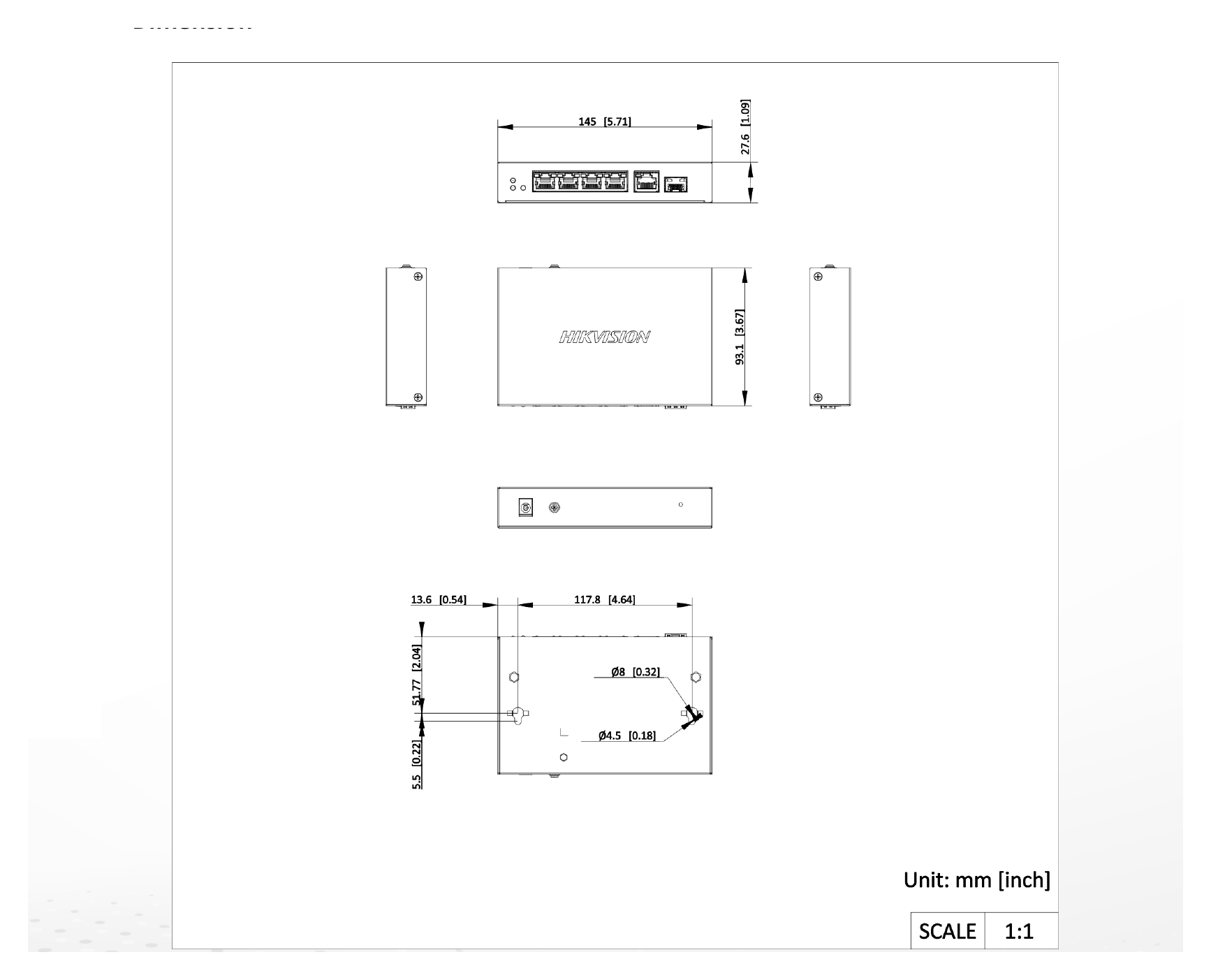

尺寸：145.0 mm × 27.6 mm × 93.1 mm (5.71'' × 1.09'' × 3.67'')
工作溫度：0 °C to 40 °C (32 °F to 104 °F)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-3E1506P-EI/M-4P1T1F Hikvision 4 Port Gigabit Smart PoE Switch 產品圖片

詳細規格

機身	Metal material
淨重	0.58 kg (1.28 lb)
毛重	1.37 kg (3.02 lb)
尺寸	145.0 mm × 27.6 mm × 93.1 mm (5.71'' × 1.09'' × 3.67'')
工作溫度	0 °C to 40 °C (32 °F to 104 °F)
儲存溫度	-40 °C to 85 °C (-40 °F to 185 °F)
工作濕度	5% to 95% (no condensation)
相對濕度	5% to 95% (no condensation)
供電	54 V DC, 0.92 A
安裝方式	Desk-Mounted,Wall-Mounted
最大功耗	50 W
閒置功耗	5W
防雷	6 kV
Ports	4 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
MAC 位址表	4K
交換容量	14 Gbps
包轉發率	10.42 Mpps
內部緩存	2 Mbits
PoE 標準	IEEE 802.3af,IEEE 802.3at
PoE 供電腳位	End-span: 1/2(-), 3/6(+)
PoE 埠	PoE: Ports 1 to 4
單埠最大功率	30 W
PoE 功率預算	45 W Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition. Ports 1 to 6: port isolation mode to improve network security
Port Isolation	Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 4: auto detect and restart the cameras that do not respond. Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 2 aggregation group(s). QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.
QoS	Support port-based priority configuration. Support SP and WRR priority scheduling modes. Support DSCP-based QoS policy. will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. VLAN is used for network scale planning and network health improvement. Support 802.1Q.
VLAN	Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port lon
System Maintenance	Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. DHCP Snooping can prevent unauthorized connections to DHCP servers from
DHCP Snooping	disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
DDM (Digital Diagnostic	Support real-time monitoring of key parameters in optical modules, such as operating
Monitoring)	temperature, operating voltage, operating current, and Rx and Tx optical power. CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368- 1: 2014+A11: 2017) CE-RoHS (201165EU);
Chemistry	WEEE (201219EU); Reach (Regulation (EC) No.19072006)
