HIKVISION DS-3E1518P-EI 安裝、保養、維修

Name: HIKVISION DS-3E1518P-EI 16埠千兆智能 PoE 交換機
Brand: Hikvision
SKU: DS-3E1518P-EI

產品簡介

Hikvision DS-3E1518P-EI 為16埠千兆智能PoE交換機，全部16個埠支援PoE供電（802.3af/at），總功率預算230W，單埠最大供電30W，足以支援AI鏡頭等較高功耗設備。另設1個千兆RJ45及1個千兆光纖上行埠，56Gbps交換容量應付多路高清影像同時傳輸。支援VLAN、鏈路聚合、環路預防等企業級網絡管理功能，並可透過Hik-Partner Pro遠程管理。金屬機身支援機架安裝，適合中型工程多鏡頭部署使用。

16個千兆PoE埠，總功率預算230W
單埠最大供電30W，支援高功耗AI鏡頭
56Gbps交換容量，應付多路高清影像傳輸
支援VLAN、鏈路聚合等企業級網絡管理功能
金屬機身，支援機架安裝，6kV防雷保護

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-3E1518P-EI Hikvision 16埠千兆智能 PoE 交換機產品圖片

詳細規格

機身	Metal
淨重	2.85 kg (6.28 lb)
毛重	3.05 kg (6.72 lb)

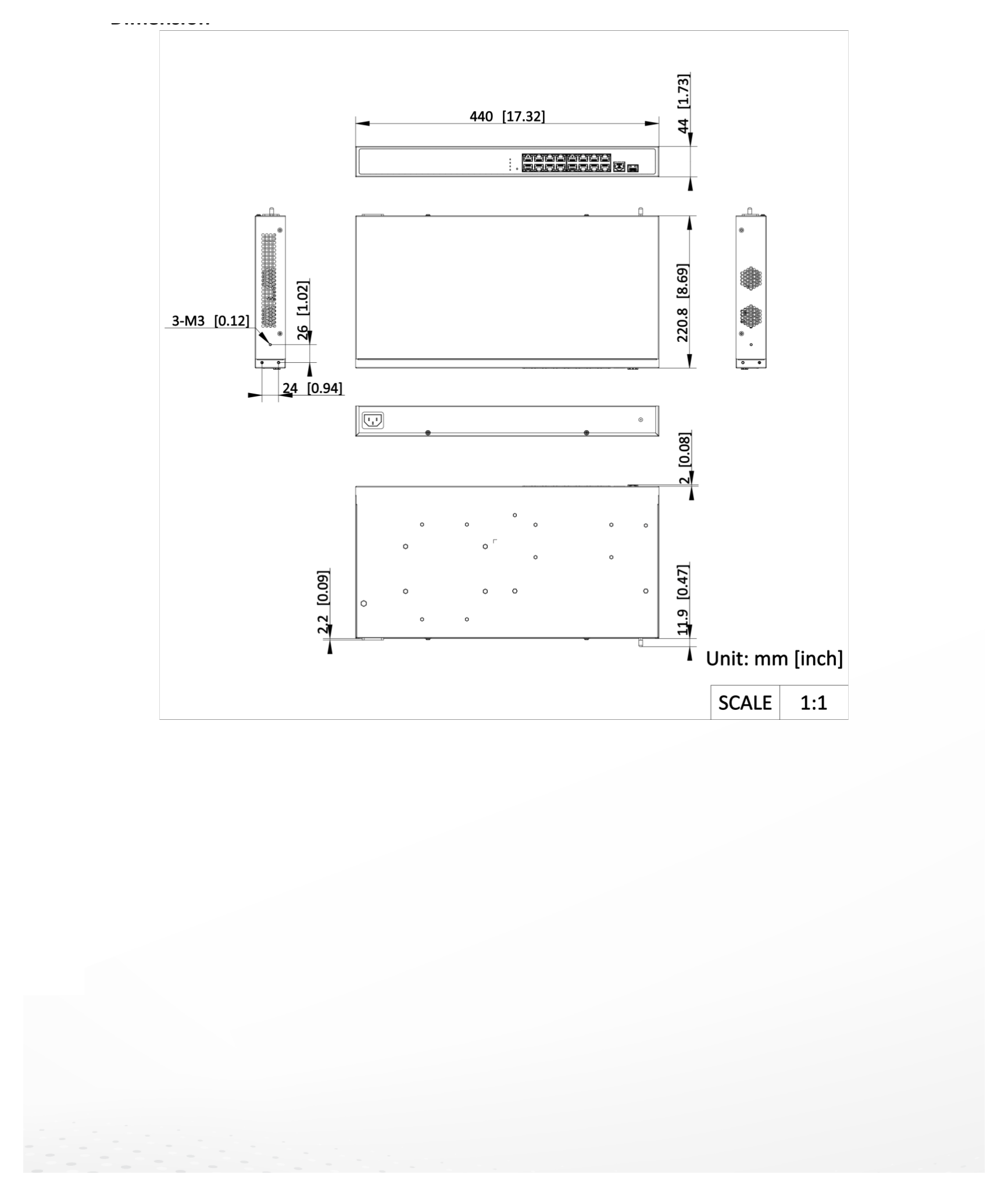

尺寸	440.0 mm × 44.0 mm× 220.8 mm (17.32'' × 1.73'' × 8.69'')
工作溫度	0 °C to 45 °C (32 °F to 113 °F)
儲存溫度	-40 °C to 85 °C (-40 °F to 185 °F)
工作濕度	5% to 95% (no condensation)
相對濕度	5% to 95% (no condensation)
供電	100~240 V AC, 50/60 Hz, Max. 4 A
安裝方式	Rack (equipped with mounting ears)
最大功耗	250 W
閒置功耗	20 W
防雷	6 kV
Ports	16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port
MAC 位址表	8K
交換容量	56 Gbps
包轉發率	41.66 Mpps
內部緩存	4.1 Mbits
PoE 標準	IEEE 802.3af,IEEE 802.3at
PoE 供電腳位	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE 埠	PoE: Ports 1 to 16
單埠最大功率	30 W
PoE 功率預算	230 W Ports 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition. Ports 1 to 16: port isolation mode to improve network security.
Port Isolation	Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 16: auto detect and restart the cameras that do not respond. Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation group(s). Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network com
VLAN	Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN. Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. HPP 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device. Support device m
System Maintenance	Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. CE-EMC (EN 55032: 2015, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011 +A1: 2014, EN 55035: 2017) CB (IEC 60950-1:2005, AMD
Safety	CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)
