HIKVISION DS-3E1518P-SI 網絡設備安裝・保養

Name: HIKVISION DS-3E1518P-SI Smart Managed 16-Port Gigabit PoE Switch
Brand: Hikvision
SKU: DS-3E1518P-SI

產品簡介

Hikvision DS-3E1518P-SI 為Smart Managed 16-Port Gigabit PoE Switch，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-3E1518P-SI 香港價格連安裝報價。

機身：Metal material
淨重：2.735 kg (6.03 lb)
毛重：3.31 kg (7.30 lb)

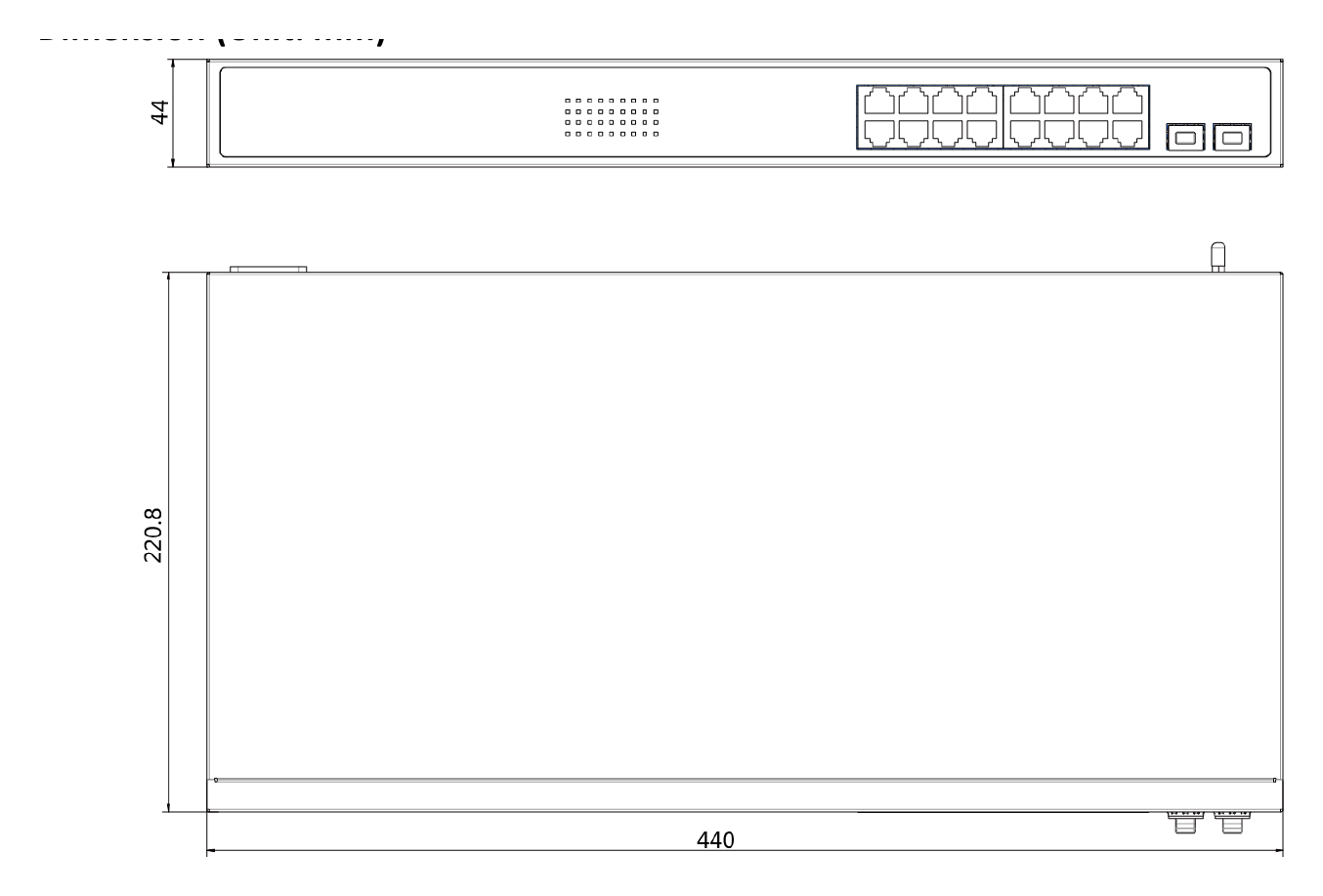

尺寸：440 mm × 44 mm × 220.8 mm (17.32” × 1.73” × 8.69”)
工作溫度：0 °C to 45 °C (0 °F to 113 °F)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

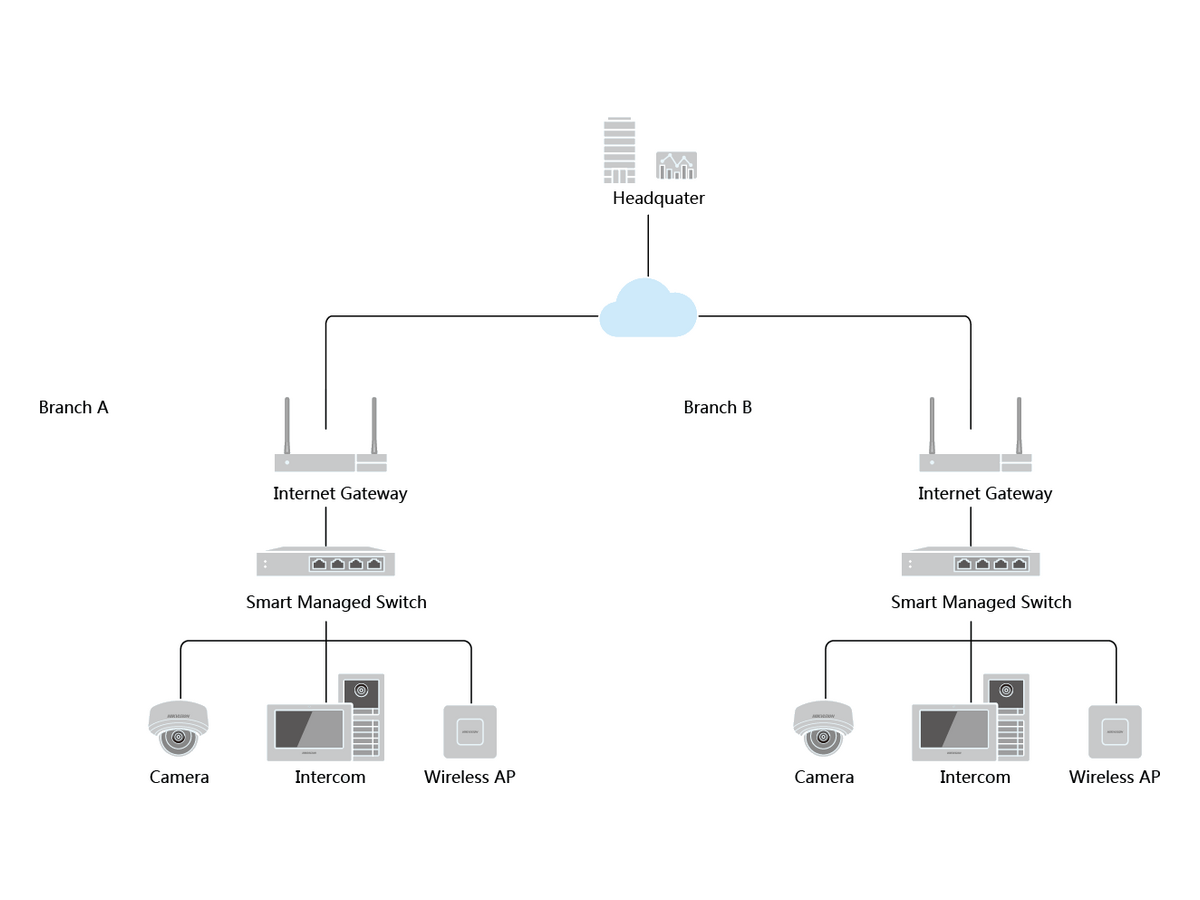

DS-3E1518P-SI Hikvision Smart Managed 16-Port Gigabit PoE Switch 產品圖片

詳細規格

機身	Metal material
淨重	2.735 kg (6.03 lb)
毛重	3.31 kg (7.30 lb)
尺寸	440 mm × 44 mm × 220.8 mm (17.32” × 1.73” × 8.69”)
工作溫度	0 °C to 45 °C (0 °F to 113 °F)
儲存溫度	-40 °C to 85 °C (-40 °F to 185 °F)
工作濕度	5% to 95% (no condensation)
相對濕度	5% to 95% (no condensation)
供電	100 to 240 V AC, 50/60 Hz, Max. 4 A
安裝方式	Rack (equipped with mounting ears)
最大功耗	250 W
閒置功耗	25 W
防雷	6 kV surge protection for PoE ports.
Ports	16 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC 位址表	8K
交換容量	56 Gbps
包轉發率	41.66 Mpps
內部緩存	4.1 Mbits
PoE 標準	IEEE 802.3af,IEEE 802.3at
PoE 供電腳位	End-span: 1/2(+), 3/6(-);
PoE 埠	PoE: Ports 1 to 16
單埠最大功率	30 W
PoE 功率預算	225 W Ports 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition. Ports 1 to 16: port isolation mode to improve network security.
Port Isolation	Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 16: auto detect and restart the cameras that do not respond. Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups. QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support
Loop Prevention	will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1Q.
VLAN	Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device. Remote upgrade, de
EMC	50130-4: 2011 +A1: 2014, EN 55035: 2017); IC (ICES-003: Issue 6); RCM (ASNZS CISPR 32: 2015) UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) CE-RoHS (201165EU);
Chemistry	WEEE (201219EU); Reach (Regulation (EC) No.19072006)
