HIKVISION DS-3E1552P-SI 網絡設備安裝・保養

Name: HIKVISION DS-3E1552P-SI 48 Port Gigabit Smart PoE Switch
Brand: Hikvision
SKU: DS-3E1552P-SI

產品簡介

Hikvision DS-3E1552P-SI 為48 Port Gigabit Smart PoE Switch，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-3E1552P-SI 香港價格連安裝報價。

機身：Metal material
淨重：4.35 kg (9.59 lb)
毛重：4.5 kg (9.92 lb)

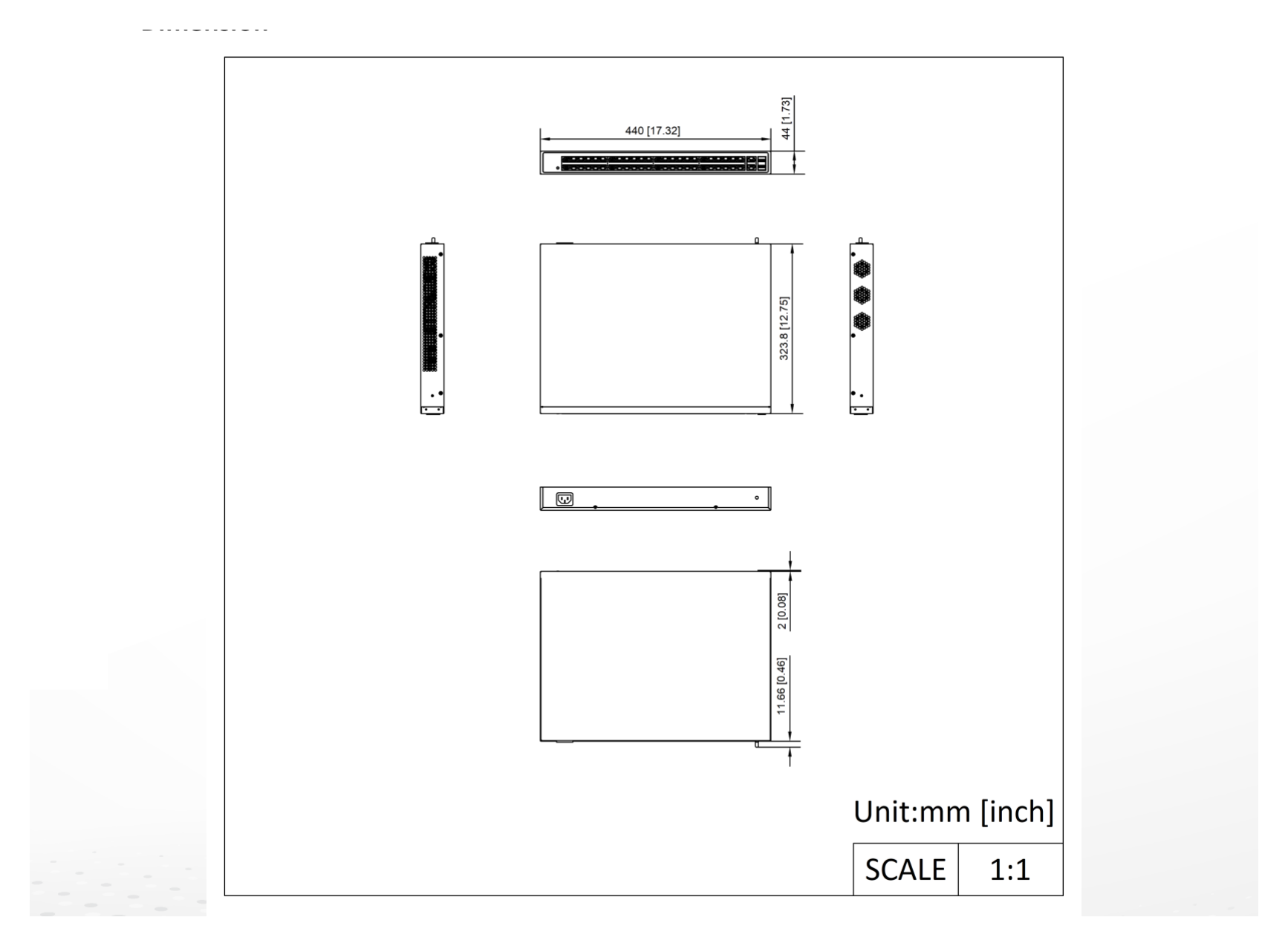

尺寸：440.00 mm × 44.00 mm × 323.80 mm (17.32'' × 1.73'' × 12.71''
工作溫度：0 °C to 45 °C (0 °F to 113 °F)

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

DS-3E1552P-SI Hikvision 48 Port Gigabit Smart PoE Switch 產品圖片

詳細規格

機身	Metal material
淨重	4.35 kg (9.59 lb)
毛重	4.5 kg (9.92 lb)
尺寸	440.00 mm × 44.00 mm × 323.80 mm (17.32'' × 1.73'' × 12.71'')
工作溫度	0 °C to 45 °C (0 °F to 113 °F)
儲存溫度	-40 °C to 85 °C (-40 °F to 185 °F)
工作濕度	5% to 95% (no condensation)
相對濕度	5% to 95% (no condensation)
供電	100 to 240 V AC, 50/60 Hz, Max. 7.5 A
安裝方式	Rack (equipped with mounting ears)
最大功耗	500 W
閒置功耗	30 W
防雷	6 kV
Ports	48 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port
MAC 位址表	16 K
交換容量	104 Gbps
包轉發率	77.38 Mpps
內部緩存	12 Mbits
PoE 標準	IEEE 802.3af,IEEE 802.3at
PoE 供電腳位	8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE 埠	PoE: Ports 1 to 48
單埠最大功率	30 W
PoE 功率預算	470 W Ports 1 to 48: up to 300 m. Long range performance may vary depend on camera model or cable condition. Ports 1 to 52: port isolation mode to improve network security
Port Isolation	Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 48: auto detect and restart the cameras that do not respond. Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups. QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support
Loop Prevention	Support 802.1D STP. Support 802.1w RSTP. Support G.8032 ERPS. VLAN is used for network scale planning and network health improvement. Support 802.1Q.
VLAN	Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port lon
DHCP Snooping	disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disable by default. Port security strategy.
ACL	Support up to 64 ACL entries. Support up to 128 configuration rules under all ACL entries. IPSG can control the security of port access device.
IPSG	Support port, MAC, IP binding. Support 256 security entries. CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368- 1: 2014+A11: 2017) CE-RoHS (201165EU);
Chemistry	WEEE (201219EU); Reach (Regulation (EC) No.19072006)
