| 機身 | Metal |
|---|
| 淨重 | 3.60 kg (7.93 lb) |
|---|

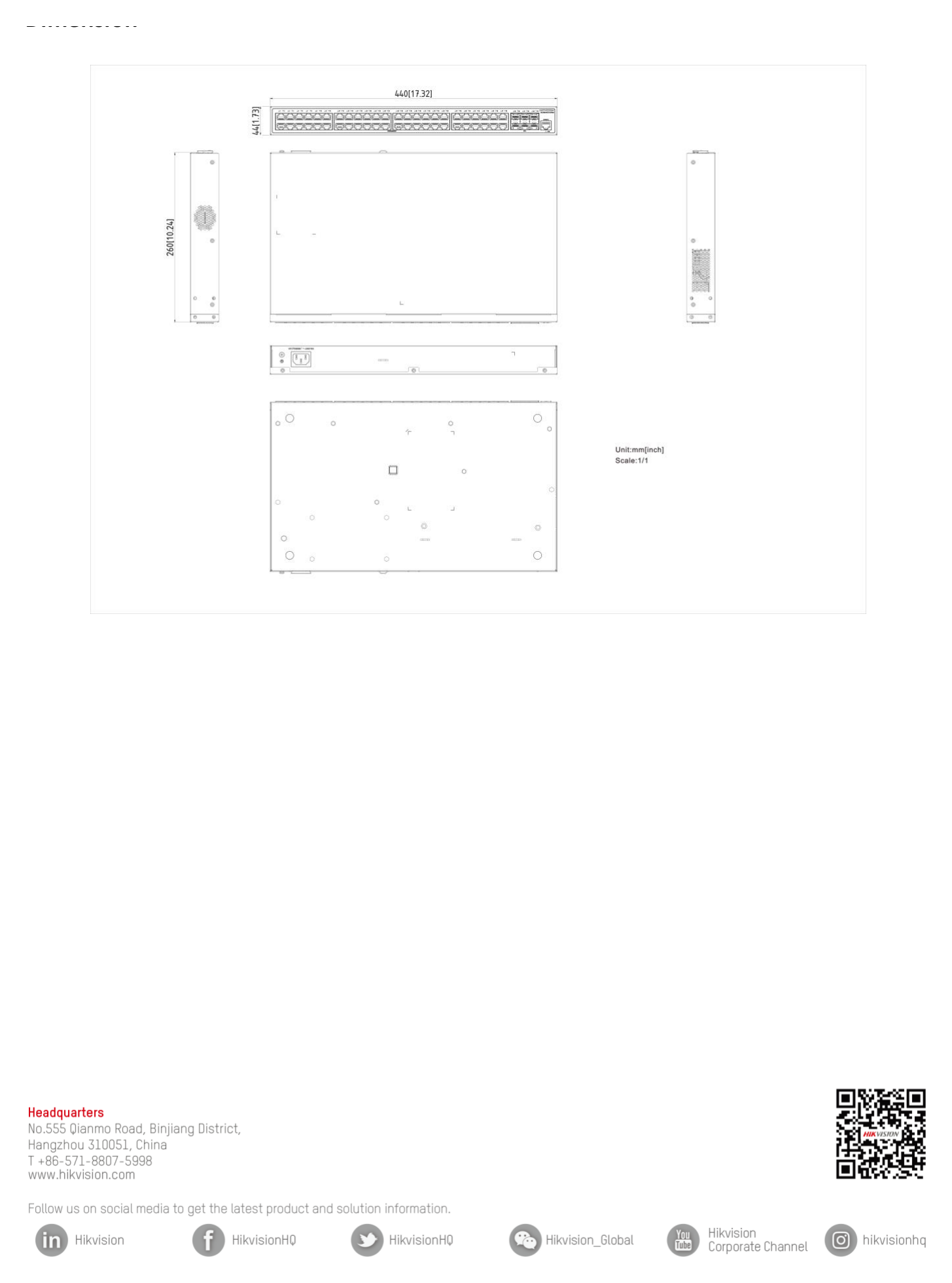

| 毛重 | 4.95 kg (10.91 lb) Dimensions 440.00 mm × 260.00 mm × 43.60 mm (17.32'' × 10.23'' × 1.71'') (W × H × D) Operating -5 °C to 45 °C (23 °F to 113 °F) Temperature Storage -40 °C to 70 °C (-40 °F to 158 °F) Temperature Operating 10% to 95% (no condensation) Humidity |
|---|
| General | Relative 5% to 95% (no condensation) Humidity |
|---|
| 供電 | AC：100 V～240 V AC，50/60 Hz Installation Rack (equipped with mounting ears) Mode Max. Power 53 W Consumption Power |
|---|
| 功耗 | 19 W in Idle Surge 6 kV Protection |
|---|
| Ports | 48 × Gigabit RJ45 port,6 × 10G fiber optical port MAC Address 32 K Table |
|---|
| Switching | Whole-Device Performance:216 Gbps |
|---|
| 容量 | Port Performance:216 Gbps Parameters Packet Whole-Device Performance:160.71 Mpps Forwarding Port Performance:160.71 Mpps Rate |
|---|
| 內部緩存 | 2.0 Mbits LLDP Static MAC configuration Limit of number of MAC addresses to be learned (up to 32K) Port mirroring and traffic mirroring |
|---|
| Software | Port aggregation (up to 24 groups and 8 ports for each group) Ethernet |
|---|
| Function | Port isolation STP/RSTP/MSTP IEEE 802.3ad (dynamic link aggregation) and static port aggregation RRPP/ERPS (Ethernet Ring Protection Switching) VRRP VLAN MVRP Static routing RIPv1/v2 and RIPng OSPFv1/v2 and OSPFv3 IP Routing IS-IS Hardware-based IPv4/IPv6 routing Inter VLAN routing DHCP Client DHCP Snooping |
|---|
| DHCP | DHCP Snooping option82 DHCP Relay DHCP Server IGMP V1/V2/V3 snooping PIM Snooping Multicast Multicast VLAN IPv6 multicast setting |
|---|
| QoS | SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit |
|---|
| ACL | ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL Ingress:1280.Egress:512 Hierarchical user management and password protection SSH for a secure encrypted channel for user login Specific IP address based FTP logging and password mechanism Prevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet |
|---|
| 安全 | MAC address limit IP+MAC+PORT binding IEEE 802.1x Radius and AAA SNMPv3 Broadcast suppression Command line configuration via console/AUX Modem/Telnet/SSH Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files SNMP V1/V2c/V3 sFlow Management NQA NTP clock System operating logs Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the por |
|---|
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) |
|---|
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
|---|
