Hikvision DS-3T1512HP-SI-8P4F 為Smart Gigabit Industrial PoE，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-3T1512HP-SI-8P4F 香港價格連安裝報價。
| 機身 | Metal material, IP40 |
|---|---|
| 淨重 | 0.84 kg (1.85 lb) |
| 毛重 | 1.16 kg (2.56 lb) |
| 尺寸 | 155.00 mm × 46.00 mm × 130.00 mm (6.10'' × 1.81'' × 5.12'') |
| 工作溫度 | -40 °C to 75 °C (-40 °F to 167 °F) |
| 儲存溫度 | -40 °C to 85 °C (-40 °F to 185 °F) |
| 工作濕度 | 5% to 95% (no condensation) |
| 相對濕度 | 5% to 95% (no condensation) 48~57 V DC, 7.5 A |
| 供電 | 52 V~57 V recommended input voltage to ensure stable power supply. Support dual power inputs and hot backup. |
| 安裝方式 | Desk-Mounted,Rail |
| 最大功耗 | 307 W |
| 閒置功耗 | 7W |
| 防雷 | 6 kV |
| Ports | 8 × Gigabit PoE port,4 × Gigabit fiber optical port |
| MAC 位址表 | 8K Whole-Device Performance: 56 Gbps Port Performance: 24 Gbps Whole-Device Performance: 41.66 Mpps Port Performance: 17.86 Mpps |
| 內部緩存 | 4.1 Mbits Ports 1 to 4: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 5 to 8: IEEE 802.3af, IEEE 802.3at Ports 1 to 4: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) Ports 5 to 8: End-span: 1/2(-), 3/6(+) Ports 1 to 4: 90 W Ports 5 to 8: 30 W Hi-PoE: Ports 1 to 4 PoE: Ports 5 to 8 |
| PoE 功率預算 | 300 W Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. Ports 1 to 8: port isolation mode to improve network security |
| Port Isolation | Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups. will seriously affect network communication. Disabled by default. |
| Loop Prevention | Support 802.1D STP. Support 802.1w RSTP. Support G.8032 ERPS. QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode. VLAN is used for network scale planning and network health improvement. Support 802.1Q. |
| VLAN | Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port lon |
| System Maintenance | Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating. Port rate-limiting is used for port bandwidth adjustment to prevent network conge |
| DHCP Snooping | disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default. Port security strategy. |
| ACL | Support up to 64 ACL entries. Support up to 128 configuration rules under all ACL entries. |
| IPSG | Support port, MAC, IP binding. Support 256 security entries. CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: |
| EMC | 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368- 1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

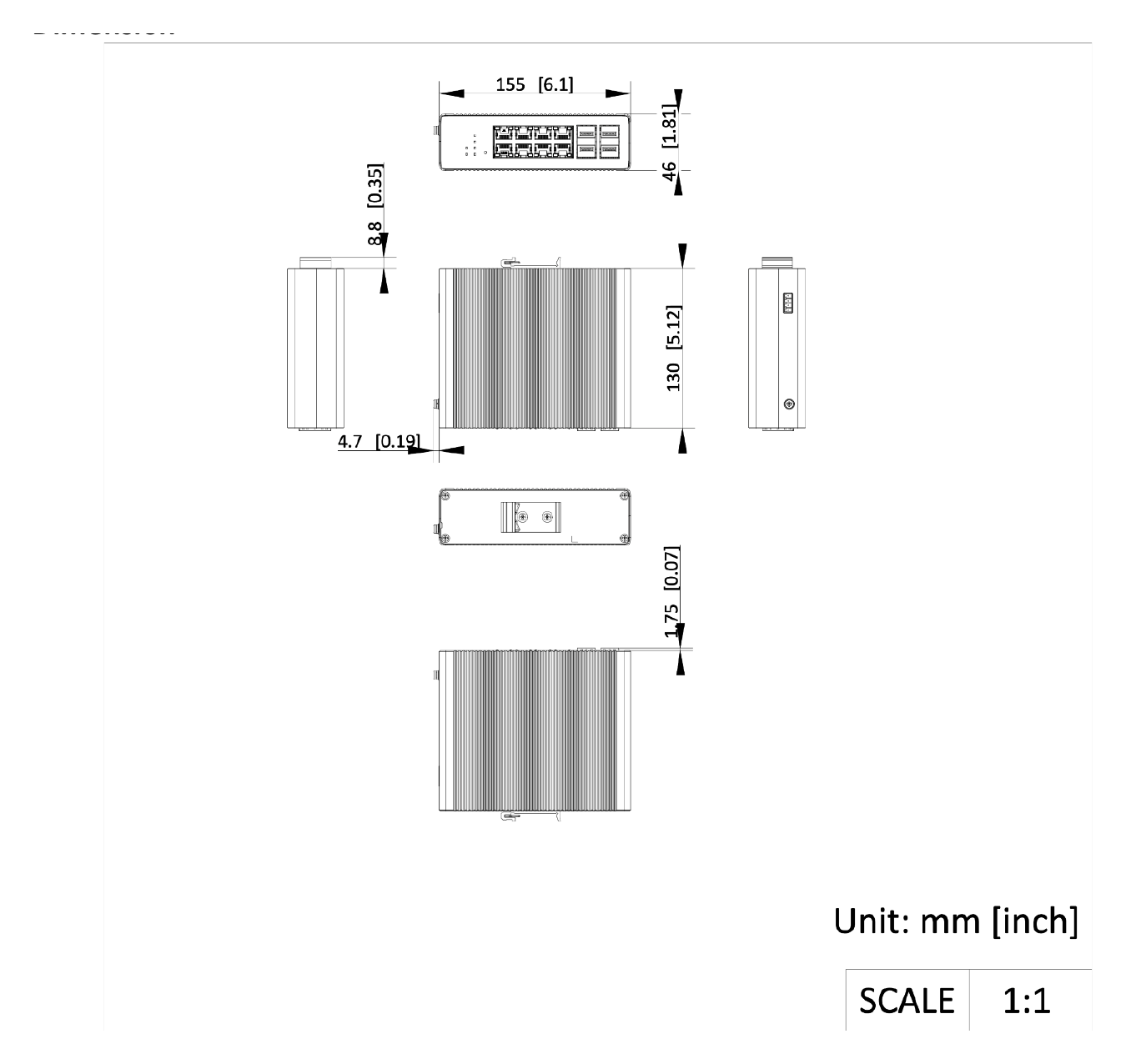

155.00 mm × 46.00 mm × 130.00 mm (6.10'' × 1.81'' × 5.12'')｜Unit: mm
DS-3T1512HP-SI-8P4F Hikvision Smart Gigabit Industrial PoE亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-3T1512HP-SI-8P4F 原廠行貨連保養，提供上門安裝、佈線及網絡設定一站式服務，全港 32 區均有服務。
詳細規格請參閱上方規格表；我們會按現場點位數量、距離及功率需求設計網絡架構，並提供整體方案報價。
原廠行貨保養，工程另設保養期；網絡設備我們會預先設定好即插即用，日後有問題可遠程協助或上門檢查。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-3T1512HP-SI-8P4F 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱網絡 WiFi安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-3T1512HP-SI-8P4F Hikvision Smart Gigabit Industrial PoE供貨連專業安裝服務（裝WIFI、裝ROUTER、裝FIREWALL），熱門地區包括：藍田網絡佈線 WiFi 工程、觀塘網絡佈線 WiFi 工程、銅鑼灣網絡佈線 WiFi 工程、鑽石山網絡佈線 WiFi 工程、長沙灣網絡佈線 WiFi 工程、青衣網絡佈線 WiFi 工程、香港仔網絡佈線 WiFi 工程、黃大仙網絡佈線 WiFi 工程。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-3T1512HP-SI-8P4F 香港價格連安裝報價。
