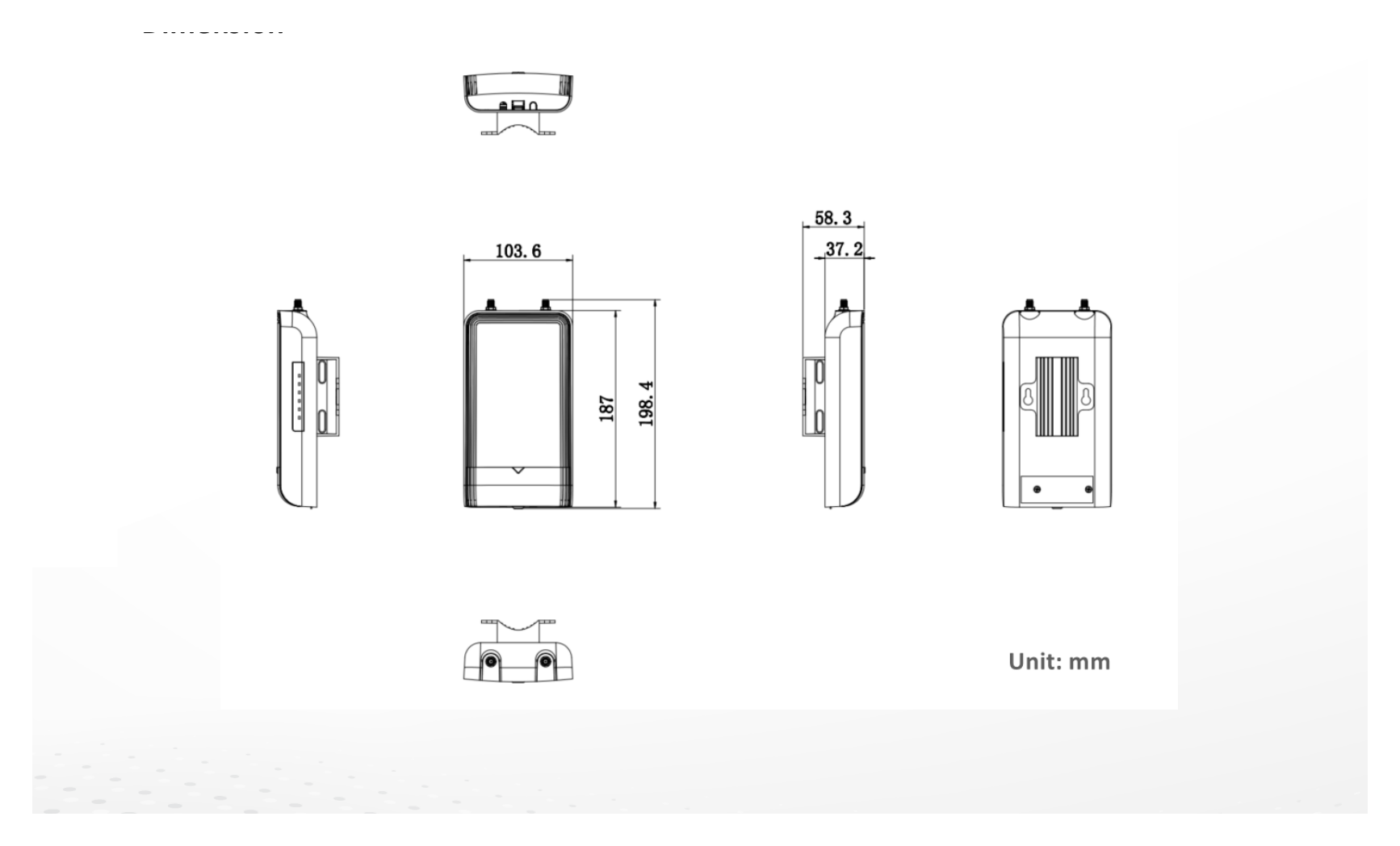

| 尺寸 | 103.6 mm × 58.3 mm × 198.4 mm (4.1'' × 2.3'' × 7.8'') |
|---|
| Package Dimensions (W × H × D) | 550 mm × 238 mm × 167 mm (21.6" × 9.3" × 6.5") |
|---|
| 淨重 | 0.3 kg (0.66 lb) |
|---|
| 毛重 | 3.5 kg (7.71 lb) Wireless Bridge × 1,Power Supply Adaptor × 1,Power Cord × 1,Regulatory Compliance |
|---|
| 包裝清單 | and Safety Information × 1,Quick Start Guide ×1,Screw Pack × 1,Binding Tape × 2,Antenna ×1 |
|---|
| 包裝方式 | Single unit packing |
|---|
| 工作溫度 | -30 °C to 60 °C (-22 °F to 140 °F) |
|---|
| 工作濕度 | 5% to 95% (no condensation) |
|---|
| 儲存溫度 | -40 °C to 80 °C (-40 °F to 176 °F) |
|---|
| Storage Humidity | 5% to 95% (no condensation) |
|---|
| 安裝方式 | Pole Mounting |
|---|
| 防護等級 | IP55 |
|---|
| 功耗 | 2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W |
|---|
| 無線標準 | IEEE 802.11/a/n/ac ≤ 867 Mbps 5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5825 MHz,(Note: Available channel may vary with local regulations.) |
|---|
| 天線增益 | 10 dBi |
|---|
| 天線角度 | (H) Beamwidth [3 dB] 360° (V) Beamwidth [3 dB] 8° |
|---|
| 發射功率 | 22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.) |
|---|
| 接收靈敏度 | -84±2dBm@AC80-MCS0 |
|---|

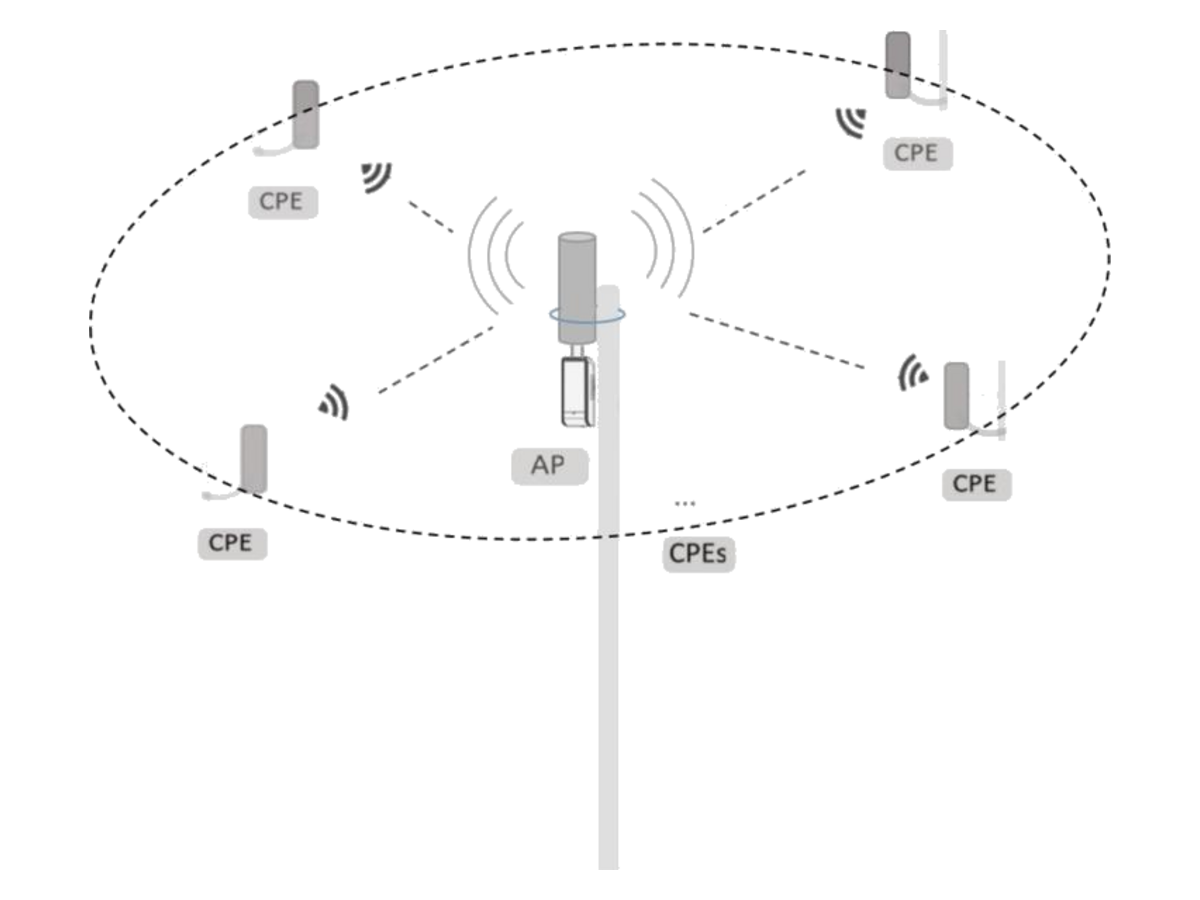

| PTP: | ,160 Mbps/0.5 KM(AC80),160 Mbps/1 KM(AC80),PTMP(1 to 8): ,110 Mbps/1 KM(AC80) |
|---|
| PoE 埠 | PoE IN/LAN 1 |
|---|
| PoE 距離 | 100m |
|---|
| 網絡接口 | 2 × 1000 Mbps RJ45 ports |
|---|
| LED 指示燈 | Power indicator,LAN indicator,Signal intensity indicator |
|---|
| 重設 | Hardware resetting button |
|---|
| 供電 | 48V 0.33A PoE or PoE(802.3af) 36 ～57V 0.13A |
|---|
| Application Function | TDMA,DFS,TPC,IFM,IPM |
|---|
| 頻寬 | 20/40/80 MHz |
|---|
| 選頻 | Auto/manual selection NTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging) |
|---|
| 加密模式 | WPA2-PSK |
|---|
| 安全機制 | Wireless network name hidden |
|---|
| 管理方式 | Web,iVMS-4200,HCP |
|---|
| 升級方式 | Web,iVMS-4200,HCP |
|---|
| 系統日誌 | Syslog,Control center information Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Reboot device 2. Restore device 3. Display the topology information |
|---|
| HPP | 4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate 5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power 6. Bridge alignment 7. Spectrum scanning CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN |
|---|
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
|---|
| Radio | EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17 |
|---|
