| 無線標準 | IEEE 802.11/a/n/ac ≤ 867 Mbps 5150 MHz ~ 5250 MHz, 5250 MHz~ 5350 MHz, 5470 MHz~ 5725 MHz, 5725 MHz~ 5825 MHz |
|---|
| 天線增益 | 8 dBi |
|---|
| 天線角度 | (H) Beamwidth [3 dB] 50° (V) Beamwidth [3 dB] 50° 22 dBm @11ac 80MHz MCS0 (Note: Transmitting power may vary with local regulations.) |
|---|
| 接收靈敏度 | -84 ±2dBm@AC80-MCS0 PTP: 90 Mbps/0.5 KM(AC80), 90 Mbps/1 KM(AC80), 40 Mbps/3 KM(AC80); PTMP(1 to 4): 20 Mbps/3 KM(AC80) |
|---|
| PoE 埠 | AP: LAN1 802.3af/at PoE IN; CPE: LAN1 passive PoE IN, LAN2 802.3 af PoE OUT |
|---|
| PoE 功率預算 | 10 W |
|---|
| PoE 距離 | 100 m |
|---|
| 網絡接口 | 2 × 10/100 Mbps RJ45 ports |
|---|
| LED 指示燈 | Power indicator, LAN indicator, Signal intensity indicator |
|---|
| 重設 | Hardware resetting button |
|---|
| 供電 | 48V PoE/12~24V DC;Check the physical interface image below for more details. |
|---|
| Application Function | IFM, IPM, DFS, TPC |
|---|
| 頻寬 | 20/40/80 MHz |
|---|
| 選頻 | Auto/manual selection NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management) |
|---|
| 加密模式 | WPA2-PSK |
|---|
| 安全機制 | Wireless network name hidden |
|---|
| 管理方式 | Web, iVMS-4200, HCP |
|---|
| 升級方式 | Web, iVMS-4200, HCP |
|---|
| 系統日誌 | Syslog, Control center information |
|---|

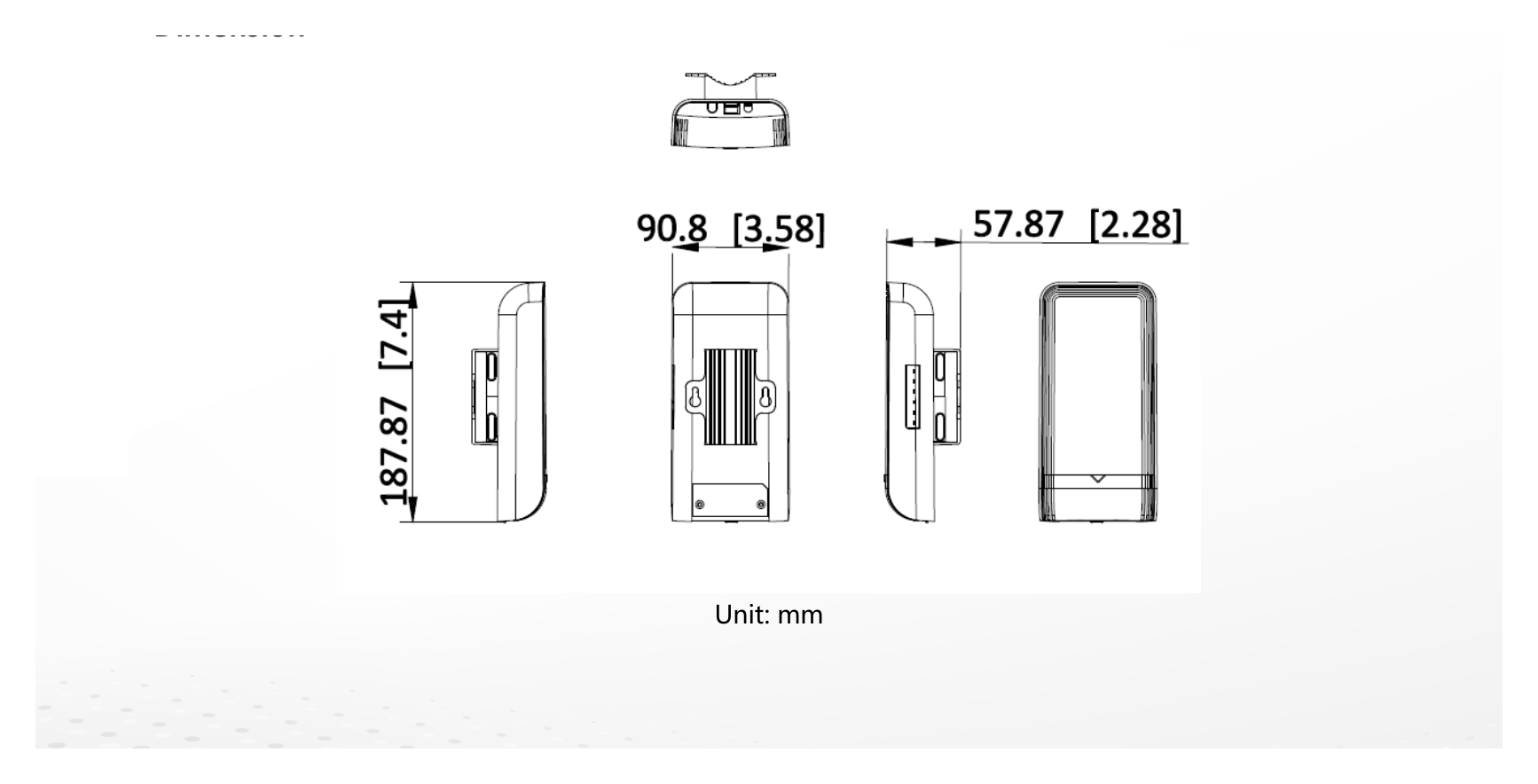

| 尺寸 | 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'') |
|---|
| Package Dimensions (W × H × D) | 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38") |
|---|
| 淨重 | 0.26 kg (0.57 lb) per device |
|---|
| 毛重 | 1.1 kg (2.43 lb) Wireless Bridge × 2, PoE Power Supply × 2, AC Cord × 2, Quick Start Guide ×1, Regulatory Compliance and Safety Information × 1, Binding Tape × 4 |
|---|
| 包裝方式 | Packing in pairs |
|---|
| 工作溫度 | -30 °C to 65 °C (-22 °F to 149 °F) |
|---|
| 工作濕度 | 5% to 95% (no condensation) |
|---|
| 儲存溫度 | -40 °C to 80 °C (-40 °F to 176 °F) |
|---|
| Storage Humidity | 5% to 95% (no condensation) |
|---|
| 安裝方式 | Pole Mounting |
|---|
| 防護等級 | IP55 |
|---|
| 功耗 | 2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: |
|---|
| EMC | 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
|---|
| Chemistry | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
|---|
| Radio | EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17 |
|---|
