Hikvision DS-3WG105GP-SI 為All in One 5 Port PoE AC Router，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-3WG105GP-SI 香港價格連安裝報價。
| 機身 | Metal |
|---|---|
| 重量 | 0.5 kg (1.1 lb) |
| 工作溫度 | 0 °C to 40 °C (32 °F to 104 °F) |
| 工作濕度 | 5% to 95% (no condensation) |
| 儲存溫度 | -40 °C to 70 °C (-40 °F to 158 °F) |
| Storage Humidity | 5% to 95% (no condensation) |

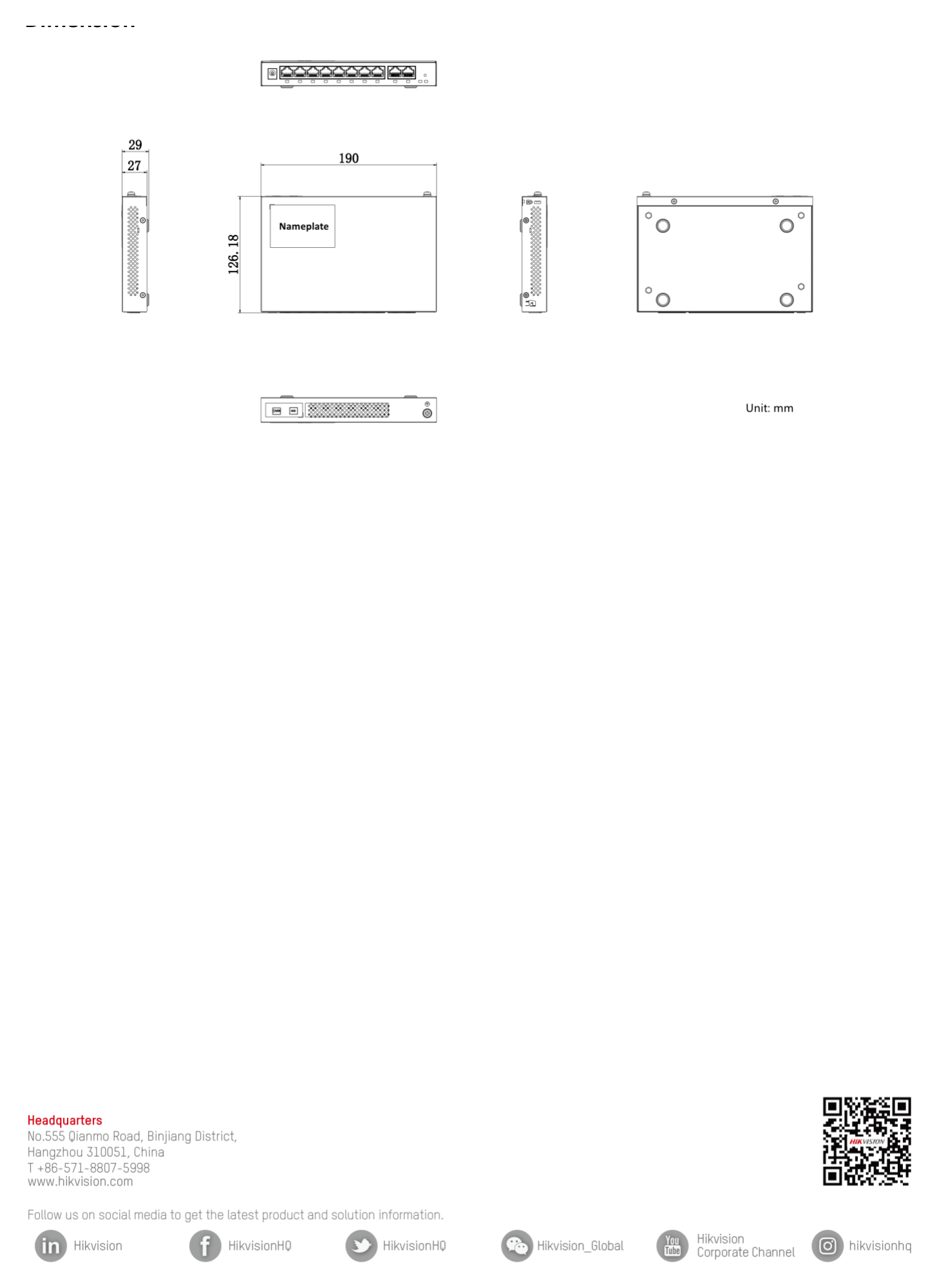

| 尺寸 | 190 mm × 125 mm × 27 mm (7.48'' × 4.92'' × 1.06'') AC Router × 1, Regulatory Compliance and Safety Information × 1, Quick Start Guide ×1, Screw Pack × 1, Power Supply Adaptor × 1, Power Cord × 1 |
| 功耗 | Max. 65 W |
| Maximum Number of Managed APs | 32 |
| Maximum Number of Clients | 100 |
| Bandwidth | 1 Gbps Support fixed IP address, DHCP automatic address acquisition, PPPoE dial-up and other methods |
| Number of WAN Access | Up to 2 WAN Load balancing Load balancing based on the destination address of the carrier, Load balancing based on link bandwidth, Load balancing based on user (IP address), Policy-based routing (PBR) for forwarding over specified lines, End-to-end link detection and backup functions Auto AP serial number entry, AC discovery (DHCP option43, DNS), Assign basic AP |
| CAPWAP Tunnel | network parameter through AC (Supported: Static IP, VLAN, Connected AC address) |
| Access Control | Open System, Shared-Key, WPA, WEP-64/128, dynamic WEP, WPA2, WPA3 |
| Layer 2 Protocol | ARP, VLAN, ARP (gratuitous ARP) IPv4, DDNS, UPnP, DHCP Server, NTP Client, Multicast, PIM, MLD Snooping, IGMP Snooping, Multicast group IPSec VPN:, Support 100 IPSec connections, Support AH and ESP protocols (ESP supports 3DES and AES encryption algorithms), Support IKE to automatically |
| VPN | establish SA, Support MD5 and SHA-1 authentication algorithms, Support IKE main mode and aggressive mode, Support NAT-T traversal, Support IPSec connection configuration by domain name (DDNS) |
| NAT | 40000 Max. Access AP Discovery, AP Management, Support Multi-SSID Configuration, SSID Hiding, Channel Setting User Authentication, Support user blacklist and whitelist, Controls the number of access users:, Based on APs, Based on SSIDs, Logs out users in any of the following |
| User Management | ways:, Using RADIUS DM messages, Using commands, Support various methods to view information:, Displays the number of online users in an ESS, AP, or radio; Collects packet statistics on air interface based on user. DDoS attack prevention and statistics, Support Prevent WAN port ping, Support Prevent TCP syn scan, Support Prevent TCP Stealth FIN scan, Support Prevent TCP Xmas Tree scanning, Support |
| System Maintenance | via Hik-Partner Pro. , Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected; Support port mirroring for fault locating. |
| Version Upgrade | Support upgrade by Web, Support upgrade by HPP Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device. |
| WAN Port | 1 Gigabit WAN Ports |
| LAN Port | 4 Gigabit PoE LAN Ports with 1 LAN/WAN Switchable |
| PoE 埠 | PoE Ports: Ports 1to 4 , IEEE802.11af/at |
| Forwarding Capacity | 10 Gbps |
| RAM | 256 MB |
| Flash | 128 MB |
| 供電 | 54 VDC, 1.17A |
| Reset Button | Hardware Resetting Button CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017) CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
| Radio | EN 301 893, EN 300 440, EN 62311, EN 301 489-3, EN 301 489-17 |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
190 mm × 125 mm × 27 mm (7.48'' × 4.92'' × 1.06'') AC Router × 1, Regulatory Compliance and Safety Information × 1, Quic
DS-3WG105GP-SI Hikvision All in One 5 Port PoE AC Router亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-3WG105GP-SI 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：重量方面，DS-3WG105GP-SI 係 0.5 kg (1.1 lb)，DS-D4039CD-1F 係 5.6 kg (12.35 lb)；工作溫度方面，DS-3WG105GP-SI 係 0 °C to 40 °C (32 °F to 104 °F)，DS-D4039CD-1F 係 -10 °C to 40 °C (14 °F to 104 °F)；工作濕度方面，DS-3WG105GP-SI 係 5% to 95% (no condensation)，DS-D4039CD-1F 係 10% RH~80% RH。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 DS-D4039CD-1F 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-3WG105GP-SI 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-3WG105GP-SI Hikvision All in One 5 Port PoE AC Router供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：沙田CCTV 閉路電視安裝、油麻地CCTV 閉路電視安裝、深水埗CCTV 閉路電視安裝、灣仔CCTV 閉路電視安裝、筲箕灣CCTV 閉路電視安裝、紅磡CCTV 閉路電視安裝、荃灣CCTV 閉路電視安裝、葵涌CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-3WG105GP-SI 香港價格連安裝報價。
