| Product Model | DS-6901UDI(C) |
|---|
| Serial Interface | 1 × RS-232 serial port (RJ-45) + 1 × RS-485 serial port |
|---|
| 網絡接口 | 1 × 10/100/1000 Mbps self-adaptive Ethernet interface (RJ-45) |
|---|
| Alarm In Interface No. | 8 channels of alarm input |
|---|
| Alarm Out Interface No. | 8 channels of alarm output |
|---|
| 電源接口 | External 12 VDC |
|---|
| Device Consumption | < 15 W |
|---|
| Video Walls | 1 |
|---|
| Video Wall Scale | ≤1 |
|---|
| Split Window | Supported 1, 2, 4, 6, 8, 9, 12, 16 |
|---|
| Layers Per Screen | 4 × 1080p or 2 × 4K |
|---|
| Layers per Device | Layers Per Screen × Output Interface(s) |
|---|
| Scenes | 64 |
|---|
| Plans | 100 view groups on the HCP client |
|---|
| 工作溫度 | -10 °C to 55 °C (14 °F to 131 °F) |
|---|
| 工作濕度 | 0% RH to 90% RH |
|---|
| 淨重 | ≤ 1.12 kg (2.47 lb) |
|---|
| 毛重 | ≤ 1.17 kg (2.58 lb) |
|---|

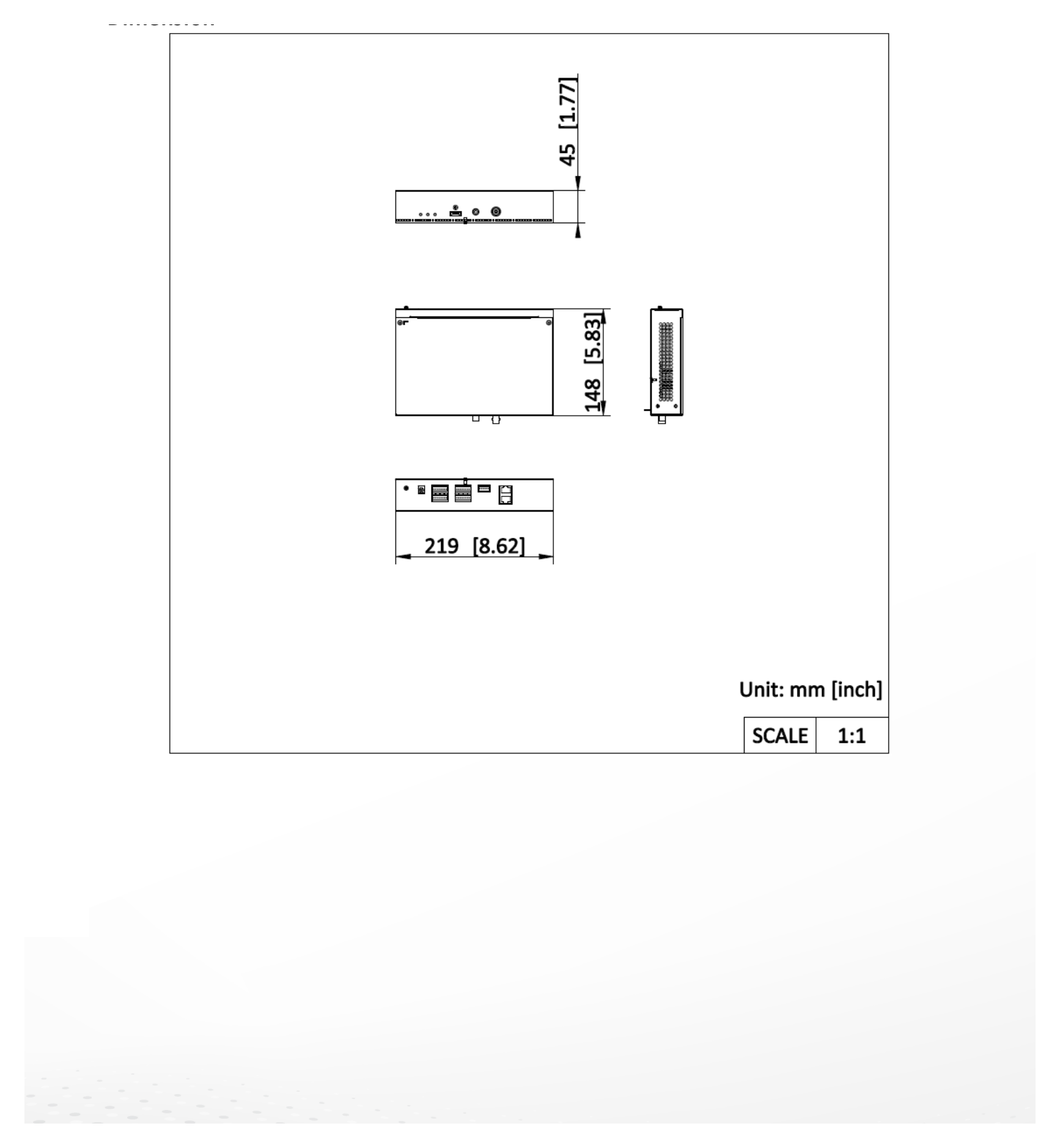

| 尺寸 | 220 mm × 45 mm × 148 mm (8.66 inch × 1.77 inch × 5.83 inch) 1 × decoder, 1 × regulatory compliance and safety information manual, 1 × power adapter, 1 × grounding cable |
|---|
| Video Output Interface Type | HDMI 1.4 |
|---|
| Video Output Interfaces | 1 |
|---|
| Max. Video Output Resolution | 4K 3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, |
|---|
| Video Output Resolution | 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz Single port load: 2600000, Width: 144 - 3840, Height: 144 - 2160 |
|---|
| Video Output Interface (BNC) | 1 channels of CVBS output (BNC port) PAL: 704 × 576@25 Hz NTSC: 704 × 480@30 Hz |
|---|
| Video Decoding Format | H.264, H.265, Smart264, Smart265, MJPEG |
|---|
| Video Decoding Channels | 16 Supports decoding 1-channel 32 MP/24 MP, 2-channel 12 MP, 4-channel 8 MP, |
|---|
| Video Decoding Capability | 5-channel 6 MP, 9-channel 4 MP, 16-channel 1080p and lower resolution in real time. 2) MJPEG format: 4-channel of 1080p and lower resolution 3) HIK264 format: 2-channel of 720p and lower resolution |
|---|
| Video Decoding Resolution | Up to 32 MP Audio Output |
|---|
| Audio Output Interface Type | Embedded HDMI audio output port or RCA |
|---|
| Audio Output Interfaces | 1 Audio Decoding |
|---|
| Audio Decoding Format | G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM |
|---|
| Front Panel | Description Rear Panel Description Power status LED. It is |
|---|
| PWR | steady green when the RS232 Device debug serial port device is powered on. Network connection LED. It |
|---|
| LINK | is steady green when a LAN 1000 Mbps electrical port network cable is connected. Network transmission LED. It is steady green when the |
|---|
| TX/Rx | RS485 RS-485 port network transmission is normal. 8 channels of alarm input |
|---|
| HDMI | HDMI output port ALARM and 8 channels of alarm output |
|---|
| AUDIO OUT | Audio output port DC12 V 12 VDC power port |
|---|
| VIDEO OUT | BNC output port |
|---|
