| IP 視頻輸入 | 32-ch |
|---|
| 入口頻寬 | 400 Mbps |
|---|
| 出口頻寬 | 400 Mbps 8K(7680×4320)/30Hz, 4K（3840×2160）/60Hz,4K（3840×2160）/30Hz，2K（2560×1440） /60Hz，1080P（1920×1080）/60Hz 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
|---|
| VGA 1 Output | 1920 × 1080/60Hz |
|---|
| VGA 2 Output | 1920 × 1080/60Hz HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; |
|---|
| 視頻輸出模式 | HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
|---|
| 音訊輸出 | 1-ch, RCA (Linear, 1 KΩ) |
|---|
| 雙向語音 | 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|---|
| 解碼格式 | H.265+/H.265/H.264+/H.264 32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|---|
| 同步回放 | 16-ch 2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
|---|
| 音訊壓縮 | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP |
|---|
| 網絡接口 | 4, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|---|
| Camera Access Protocol | ONVIF(Version 2.5), RTSP |
|---|
| RAID Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
|---|
| Serial Interface | 1 RS-485 (full-duplex), 1 RS-232 |
|---|
| SATA | 8 SATA interfaces |
|---|
| 容量 | Up to 16 TB capacity for each disk |
|---|
| 警報輸入/輸出 | 19/4 (the last 3 alarm inputs are used for UPS alarm) |
|---|
| USB 接口 | Front panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0 |
|---|
| 供電 | 100 to 240 VAC, 50 to 60 Hz, redundant power supply |
|---|
| 功耗 | ≤ 200 W (without HDD) |
|---|
| 工作溫度 | -10 °C to 60 °C (14 °F to 140 °F) |
|---|
| 工作濕度 | 10% to 90% |
|---|
| Chassis | 2U chassis |
|---|

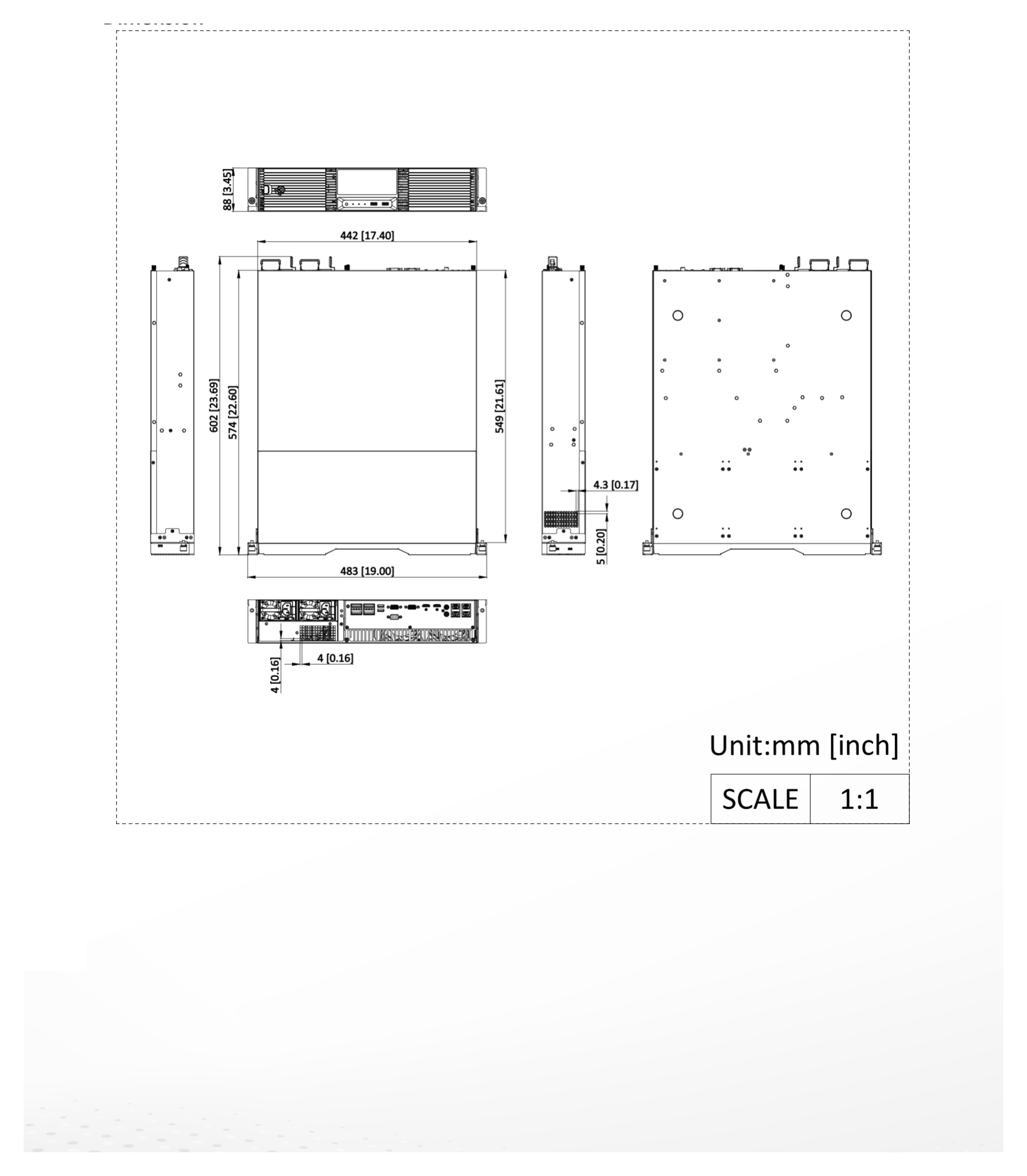

| 尺寸 | 442 × 574 × 88 mm ( 17.4"× 22.6" × 3.45") |
|---|
| 重量 | ≤ 24 kg (without HDD, 52.9 lb.) |
|---|
| Obtained Certification | CE |
|---|
| CE | EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
|---|
| No. | Description No. Description Alarm in, alarm out, RS-485, Power AC, Power UPS, Power UPSL, and GND |
|---|
