HIKVISION DS-D5C86RB CCTV攝影機安裝・保養

Name: HIKVISION DS-D5C86RB 86-inch 4K Interactive Display
Brand: Hikvision
SKU: DS-D5C86RB

產品簡介

Hikvision DS-D5C86RB 為86-inch 4K Interactive Display，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-D5C86RB 香港價格連安裝報價。

Product Model：DS-D5C86RB/B
屏幕尺寸：86 inch
Backlight：DLED
Pixel Pitch：0.1645 （H）× 0.4935 （V）mm
解像度：3840 × 2160 @60 Hz

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

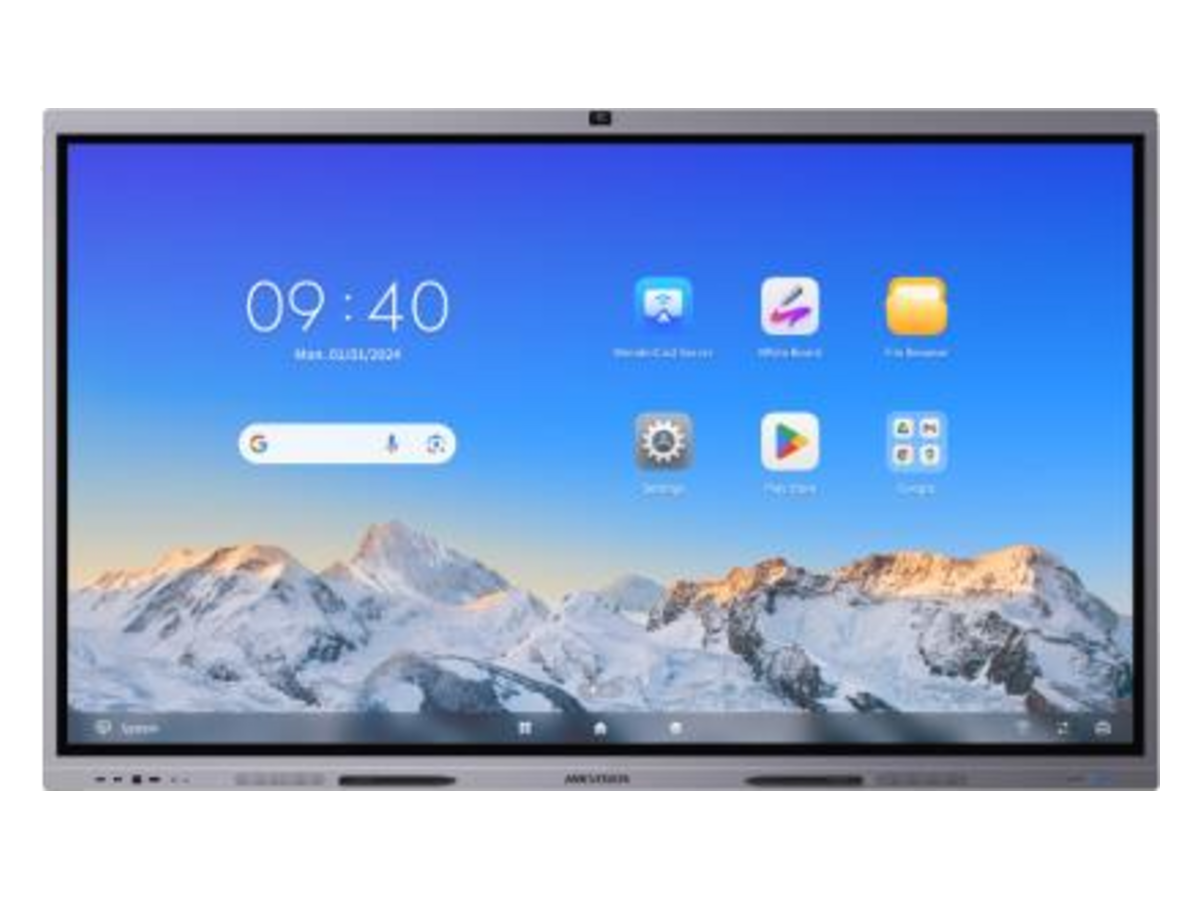

DS-D5C86RB Hikvision 86-inch 4K Interactive Display 產品圖片

詳細規格

Product Model	DS-D5C86RB/B
屏幕尺寸	86 inch
Backlight	DLED
Pixel Pitch	0.1645 （H）× 0.4935 （V）mm
解像度	3840 × 2160 @60 Hz
Brightness	400 cd/m² （Typ.）
Color Depth	10 bit
Display Color	1.07 G
Response Time	5 ms
Panel Type	VA 5000:1 (Static) 30,000:1 (Dynamic)
Color Gamut	72% NTSC (CIE1931) (Typ.)
Refresh Rate	60 Hz
Viewing Angle	178° (H)/178° (V)
Aspect Ratio	16:9 9H (Pencil) 7 (Mohs)
Surface Glass	Anti-Glare Glass
Surface Haze	25% Haze
Glass Bonding Method	Zero Lamination
Display Area	1895.04mm ╳ 1065.96mm
Working Duration	7 × 16 H
Transmittance	88% ± 3
Lifespan	50,000 hours
類型	Infrared Touch Screen
Touch Point	Up to 50-point multi-touch
Touch Response Time	≤ 2 ms
Minimum Touch Object	≥ 1.5 mm (≥ 90% touching area)
Touch Precision	± 0.5 mm (≥ 90% touching area)
Touch Resolution	32768 × 32768
操作系統	Android 14.0
Memory	8 GB
Built-in Storage	128 GB
處理器	Quad-core Cortex-A76 × 4 （2.4 GHz）and quad-core Cortex-A55 × 4 （1.8 GHz）
GPU	Mali-G610 MC4
HDCP Version	2.3
Pixel	Pixel 48MP for Photos & 8 MP for Video
Camera Function	Support intelligent switching between Android system, OPS, and PC.
Field Angle	93.4° (diagonal), 84.5°(horizontal), 54.1° (vertical)
Distortion	≤2.5%
Camera Resolution Ratio	Up to 4K
Specification	Omni-directional 8-array layout
Mic Function	Echo reduction and smart noise-cancellation
Voice Distance	12 m
取樣率	32 K
Mic Depth	16 bit
Loudspeaker	Built-in 2 × 20 W+25W loudspeaker;
藍牙	Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
NFC	Support screen mirroring by Android phones
Light Sensor	Yes Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging ；support shadow correction . Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digita
Video & Audio Input	HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
Video & audio output	HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
Control interface	TOUCH-USB 3.0 × 3, RS232 × 1 LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
供電	100 to 240 VAC, 50/60 Hz
Standby Consumption	≤ 0.5 W
Average Consumption	< 205W
工作溫度	0 °C to 40 °C (32 °F to 104°F)
工作濕度	10%~90% RH
VESA	800 mm × 600 mm （4 × M8-25 mm）

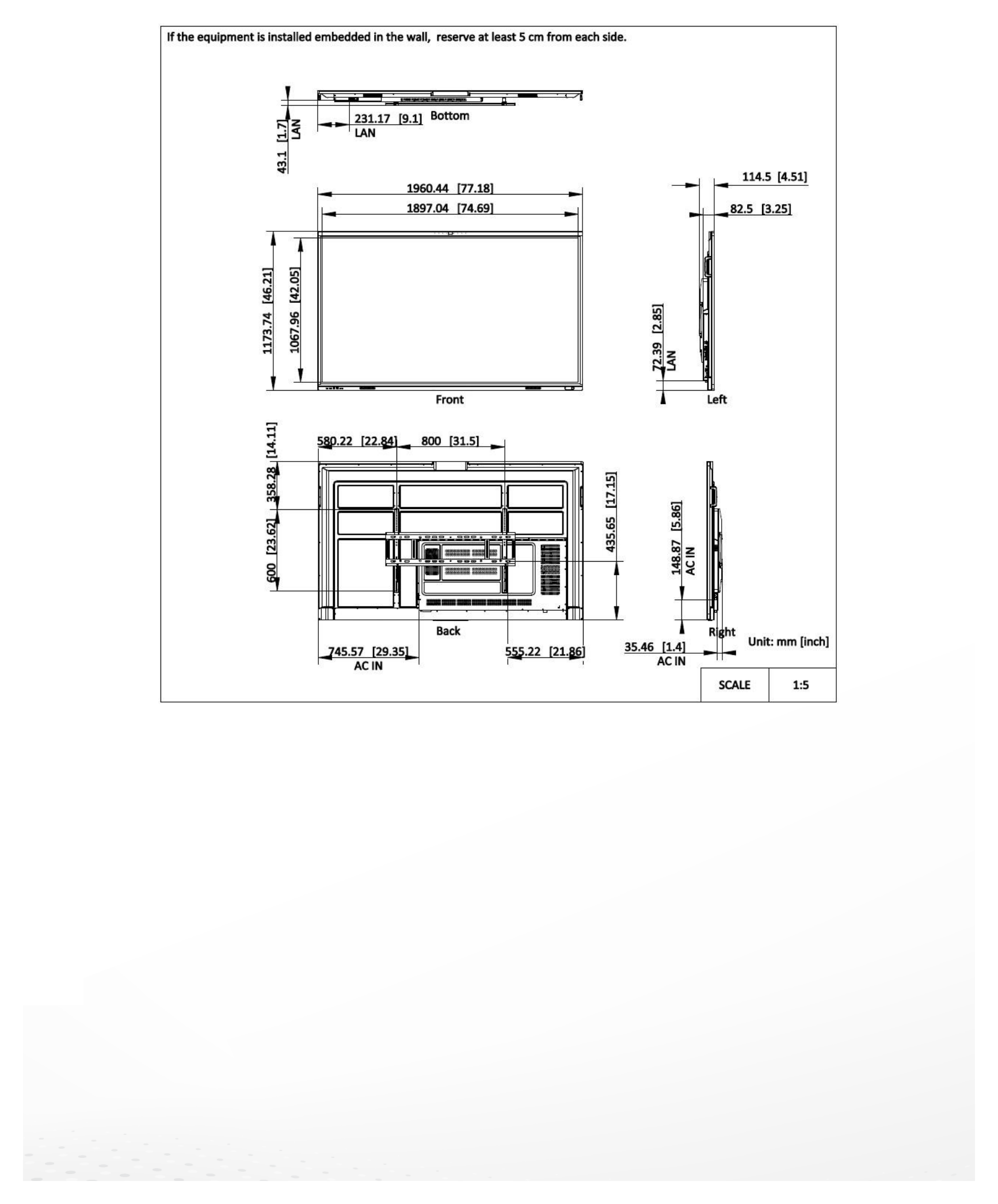

Product dimensions	1960.44 mm × 1173.74 mm × 82.5 mm Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5M HDMI cable (2.0), power cable , bluetooth remote control.
Package Dimensions (W × H × D)	2147 mm × 1335 mm × 213 mm
淨重	65.13 kg
毛重	82.6 kg
接口	Description Interface Description Video devices connection Multi-functional USB Multi-functional USB Installation
