HIKVISION DS-D5C98RB CCTV攝影機安裝・保養

Name: HIKVISION DS-D5C98RB 98-inch 4K Interactive Display
Brand: Hikvision
SKU: DS-D5C98RB

產品簡介

Hikvision DS-D5C98RB 為98-inch 4K Interactive Display，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-D5C98RB 香港價格連安裝報價。

Product Model：DS-D5C98RB/B
屏幕尺寸：98 inch
Backlight：DLED
Pixel Pitch：0.5622 (W) × 0.5622 (H) mm
解像度：3840 × 2160 @60 Hz

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

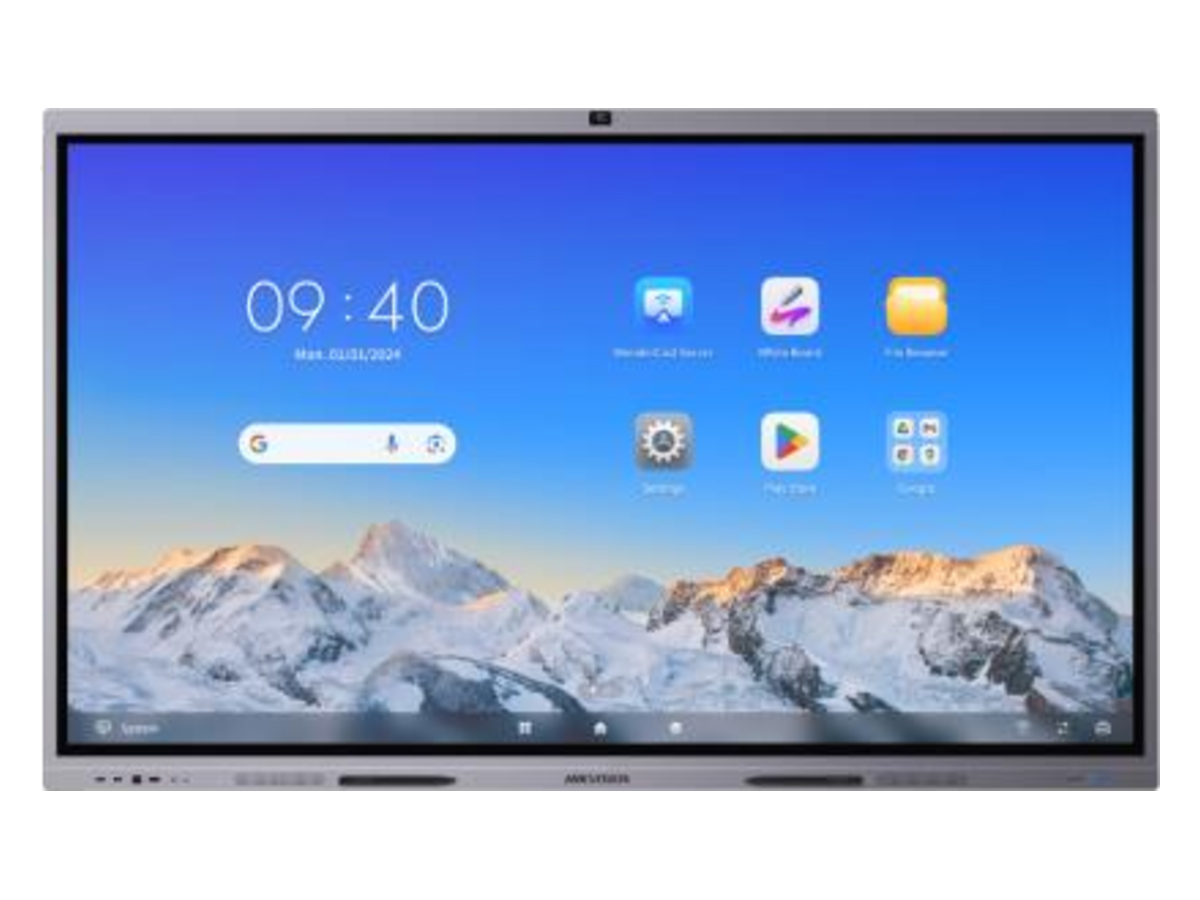

DS-D5C98RB Hikvision 98-inch 4K Interactive Display 產品圖片

詳細規格

Product Model	DS-D5C98RB/B
屏幕尺寸	98 inch
Backlight	DLED
Pixel Pitch	0.5622 (W) × 0.5622 (H) mm
解像度	3840 × 2160 @60 Hz
Brightness	600 cd/m² (Typ.)
Color Depth	10 bit
Display Color	1.07 G
Response Time	5 ms
Panel Type	VA 5000:1 (Static) 30,000:1 (Dynamic)
Color Gamut	72% NTSC (CIE1931) (Typ.)
Refresh Rate	60 Hz
Viewing Angle	178° (H)/178° (V)
Aspect Ratio	16:9 9H (Pencil) 7 (Mohs)
Surface Glass	Anti-Glare Glass
Surface Haze	25% Haze
Glass Bonding Method	Zero Lamination
Display Area	2158.848 mm × 1214.352 mm
Working Duration	7 × 16 H
Transmittance	88% ± 3
Lifespan	50,000 hours
類型	Infrared Touch Screen
Touch Point	Up to 50-point multi-touch
Touch Response Time	≤ 2 ms
Minimum Touch Object	≥ 1.5 mm (≥ 90% touching area)
Touch Precision	± 0.5 mm (≥ 90% touching area)
Touch Resolution	32768 × 32768
操作系統	Android 14.0
Memory	8 GB
Built-in Storage	128 GB
處理器	Quad-core Cortex-A76 × 4 （2.4 GHz）and quad-core Cortex-A55 × 4 （1.8 GHz）
GPU	Mali-G610 MC4
HDCP Version	2.3
Pixel	Pixel 48 MP for Photos & 8 MP for Video
Camera Function	Support intelligent switching among Android system, OPS, and PC.
Field Angle	93.4° (diagonal), 84.5°(horizontal), 54.1° (vertical)
Distortion	≤ 2.5%
Camera Resolution Ratio	Up to 4K
Specification	Omni-directional 8-array layout
Mic Function	Echo reduction and smart noise-cancellation
Voice Distance	12 m
取樣率	32 K
Mic Depth	16 bit
Loudspeaker	Built-in 2 × 20 W + 25 W loudspeaker;
藍牙	Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
NFC	Support screen mirroring by Android phones
Light Sensor	Yes Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging; support shadow correction. Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital
Video & Audio Input	HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
Video & audio output	HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
Control interface	TOUCH-USB 3.0 × 3, RS232 × 1 LAN (1000 Mbps) × 2 WIFI AP & Station, 2.4G/5G WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
供電	100 to 240 VAC, 50/60 Hz
Standby Consumption	≤ 0.5 W
Average Consumption	< 325 W
工作溫度	0 °C to 40 °C (32 °F to 104 °F)
工作濕度	10%~90% RH
VESA	1000 mm × 400 mm （4 × M8-20 mm）

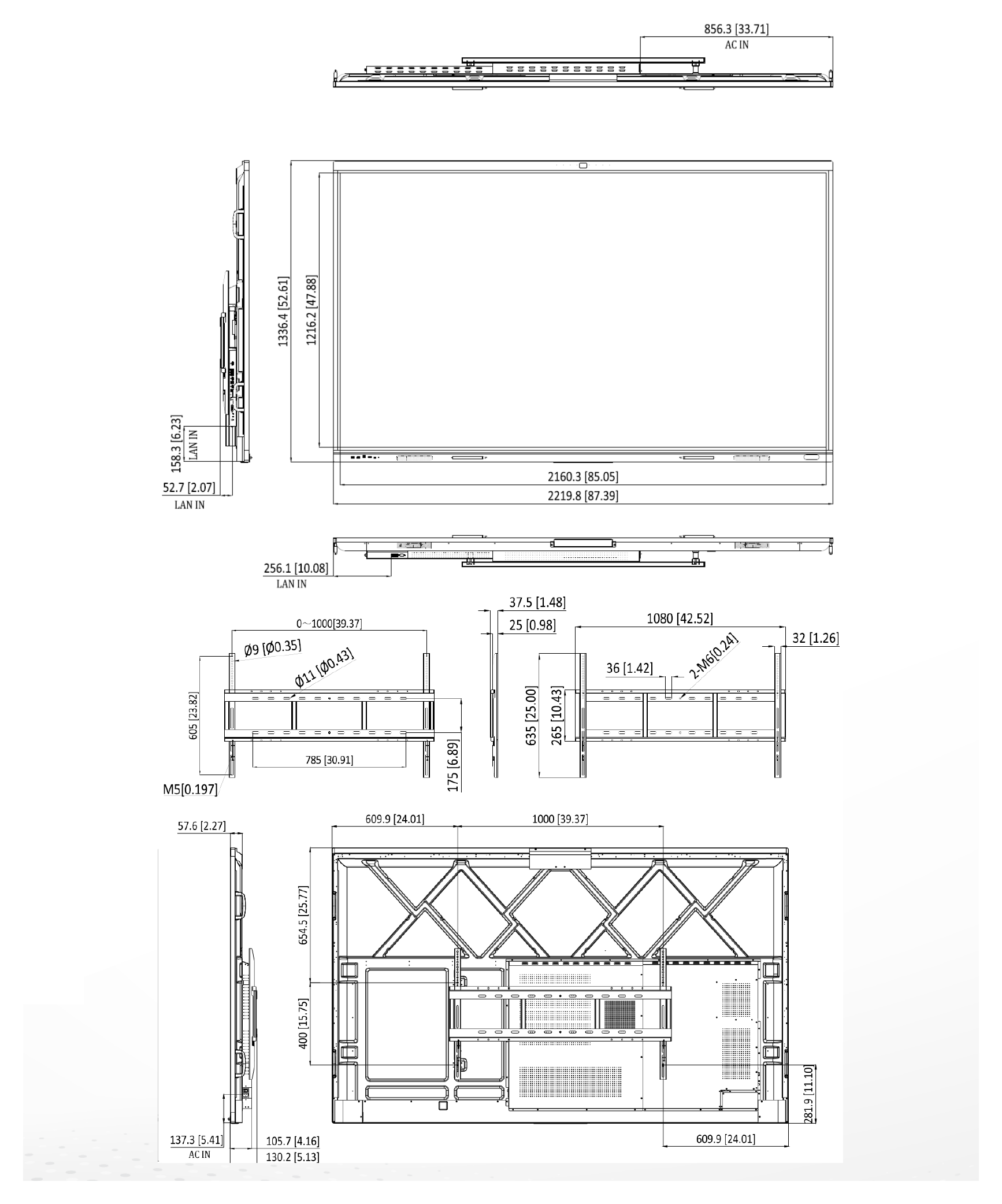

Product dimensions	2219.8 mm × 1336.4 mm × 105.7 mm Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), power cable , bluetooth remote control.
Package Dimensions (W × H × D)	2520 mm × 1700 mm × 330 mm
淨重	94 kg
毛重	137 kg
接口	Description Interface Description Video devices connection Multi-functional USB Multi-functional USB
A. USB	USB interface B. USB USB interface Multi-functional USB
C. MULTI-USB	D. HDMI IN HDMI IN interface
E. TOUCH-USB	TOUCH-USB interface Installation
