Hikvision DS-DT60V-03HDI12NO 為12-Port V Series LED Controller，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-DT60V-03HDI12NO 香港價格連安裝報價。
| Product Model | DS-DT60V-03HDI12NO/U |
|---|---|
| Product Type | LED controller |
| Brightness Control | 1 to 100 tunable (level -by-level white balance) |
| Input Frame Rate | 25 Hz to 120 Hz |
| Grey Level | 256 |
| Display Color | 16 MP |
| Processing Depth | 8 bit |
| Image Scaling | Supported |
| Chassis Height | 1U |
| Chassis Width | 440 mm (17.32 inch) |
| Light Sensor Port | Supported |
| Average Consumption | ≤39 W |
| Power Interface Quantity | 1 |
| 電源接口 | 100 to 240 VAC, 50/60 Hz |
| USB 接口 | 1 channel of USB 2.0 2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45) |
| Control Network Port | Connects to the external network and supports multi-device network cascade management. 3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window |
| Layers per Device | 7 |
| Scenes | 10 |
| Background | Images 1 |
| Background Resolution | Min.: 640 × 480, Max.: 1920 × 1200 |
| Background Format | JPG/JPEG |
| Subtitles | 1 |
| Subtitle Width | 32760 |
| Subtitle Font | Supports Xiaomi font and custom font |
| Screen | 128 × 64, OLED screen |
| 工作溫度 | -10°C to 50°C |
| Storage Humidity | 10% to 90% |
| 工作濕度 | 10% to 90% |
| 儲存溫度 | -10°C to 50°C |
| Packaging Size (W × H × D) | 589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch) |
| 淨重 | 3.28 kg (7.23 lb.) |
| 毛重 | 4.43 kg (9.77 lb.) |

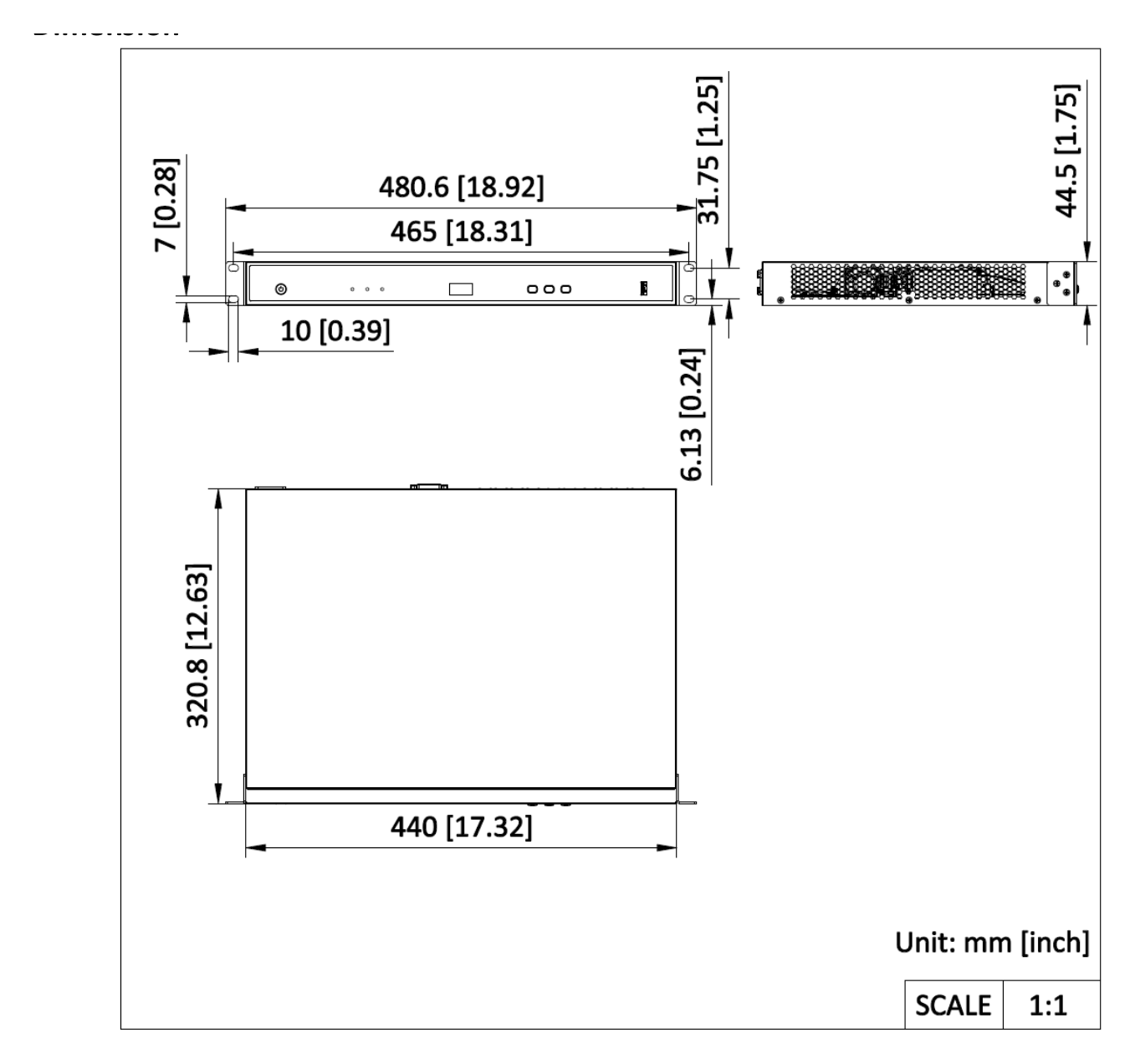

| 尺寸 | 440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch) 1 × AC power cord, 1 pair of mounting brackets, 2 × RS-485 green Phoenix contact for |
| 包裝清單 | central control device, 1 × regulatory compliance and safety information manual, 1 pair of rubber feet, 1 × RF remote control |
| Audio Input Interfaces | 2 |
| Audio Input Interface Type | 1 channel of HDMI input with embedded audio + 1 channel of HDMI in-band audio |
| Video Input Interfaces | 3 |
| Video Input Interface Type | 1-channel HDMI 2.0 + 1-channel HDMI 1.4 + 1-channel DVI |
| Max. Video Input Resolution | HDMI 2.0:4K; HDMI 1.4: 1080p; DVI: 1080p HDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2 Interlacing signal input is not supported. HDMI 1.4 port: Max. resolution: 1920 |
| Max. Video Output Resolution | 7800000 |
| Loading Capacity for Video | Width 144 - 8192, |
| Output to LED | Height 64 - 8192, Width must be a multiple of 2 and height must be a multiple of 1 |
| LED Loading Interfaces | 12 |
| LED Loading Interface Type | RJ-45 |
| Video Loop Output Interface | 2 1 channel of HDMI 2.0 + 1 channel of DVI HDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Output resolution maintains consistency with the video input resolution. Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2 DVI port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Output r |
| Audio Output Interface | 1 × 3.5 mm audio |
| Remote Control | Supports IR remote control and RF remote control +: increase brightness |
| 按鈕 | -: decrease brightness Source: change signal source 1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) + 1 × RS-485 serial port for light sensor (green Phoenix |
| Serial Interface | contact) Baud rate: 115200 Data bit: 8 |
| Power Switch | Button switch Active: The device is running. |
| 指示燈 | Source: The signal source is accessed. Error: The device operation exception occurs. On: The device is started and running. Power Switch Off: The device is not powered on or is not started. Control Interface 1 × 3.5 mm connector IR Input Supports the access of IR remote control. |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch) 1 × AC power cord, 1 pair of mounting brackets, 2 × RS
DS-DT60V-03HDI12NO Hikvision 12-Port V Series LED Controller亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-DT60V-03HDI12NO 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-DT60V-03HDI12NO 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
HKEZIT 於全港各區提供 DS-DT60V-03HDI12NO Hikvision 12-Port V Series LED Controller供貨連專業安裝服務（裝CAM、裝CCTV、裝監控），熱門地區包括：觀塘CCTV 閉路電視安裝、銅鑼灣CCTV 閉路電視安裝、鑽石山CCTV 閉路電視安裝、長沙灣CCTV 閉路電視安裝、青衣CCTV 閉路電視安裝、香港仔CCTV 閉路電視安裝、黃大仙CCTV 閉路電視安裝、上水CCTV 閉路電視安裝。港島、九龍、新界全港 32 區均有上門安裝，歡迎聯絡我們查詢 DS-DT60V-03HDI12NO 香港價格連安裝報價。
