| Input Channel Function | Parametric Equalizer (PEQ), Compressor (COMP), Noise Gate (NOISEGATE), Expander (EXP), Automatic Gain Control (AGC), Howling Suppression(HS) Volume Control (VOLUME), Del ay (DELAY), High-Pass Filter (HPF), Low-Pass Filter (LPF), |
|---|
| Output Channel Function | Parametric Equalizer (PEQ), Compressor (COMP), Expander (EXP), 31 -band Graphic Equalizer (GEQ), Frequency Divider (FD), Inverter (INVERT) AES67, TCP/IP, ICMP, HTTP, HTTPS, DNS, RTP, RTSP, RTCP, NTP, QoS, UDP, SSL/TLS, IEEE1588 |
|---|
| Interface Protocol (API) | OTAP Password protection, complicated password, HTTPS encryption, basic and digest authentication for HTTP/HTTPS, , security audit log, TLS 1.2, TLS 1.3 Recommended Running Environment for Audio Assistant Tool: ● Operating System: Windows(R) 10 (recommended), compatible with Windows(R) 7 / Windows(R) 8.1 / Windows(R) 11. ● CPU: Intel(R) i3-9100 @4.2 GHz or above ● RAM: 4 GB or above ● Graphics Car |
|---|
| Data Security | Support secure boot |
|---|
| 額定功率 | 75 W |
|---|
| 頻率響應 | 20 Hz to 20 kHz ±0.3 dB |
|---|
| Phantom Power | 48 V Phantom Power |
|---|
| Maximum Output Level | 21 dBu |
|---|
| System Delay | 3 ms |
|---|
| 總諧波失真 THD | <0.0015%@10 dBu input 110 dB@21 dBu 110 dB@+10 dBu 110 dB@0 dBu 103 dB@-10 dBu Analog Input Channels: 8 + 8 (Customizable) Network Input Channels: 8 Analog Output Channel: 8 + 8 (Customizable) Network Output Channels: 8 |
|---|
| Input Range | 21 dBu, +10 dBu, -10 dBu, -30 dBu 110 dB@+10 dBu Signal-to-Noise Ratio (SNR) 110 dB@0 dBu 103 dB@-10 dBu |
|---|
| Channel Separation | 108 dB@1 kHz |
|---|
| Chassis Compatibility Height | 1U |
|---|
| Analog-to-Digital Dynamic Range | 110 dB |
|---|
| Digital-to-Analog Dynamic Range | 112 dB |
|---|
| Input-to-Output Dynamic Range | Output Dynamic Range: 112 dB@ 21 dBu, 108 dB@ 2.2 dBu Common-Mode Rejection Ratio >70 dB (CMRR) Automatic Mixing (AutoMi x), Echo Cancellation (AEC), Automatic Noise Suppression Audio Signal Processing (ANS), Priority Ducking (PD), Mixing (MIX) 2 × RJ45 interfaces, 1 × RS-232 interface, 1 × RS-485 interface, 8 × GPIO control Device Interface interfaces, 2 × USB interfaces |
|---|
| 按鈕 | Jog Dial |
|---|
| 供電 | 100 VAC to 240 VAC, 50 Hz/60 Hz |
|---|

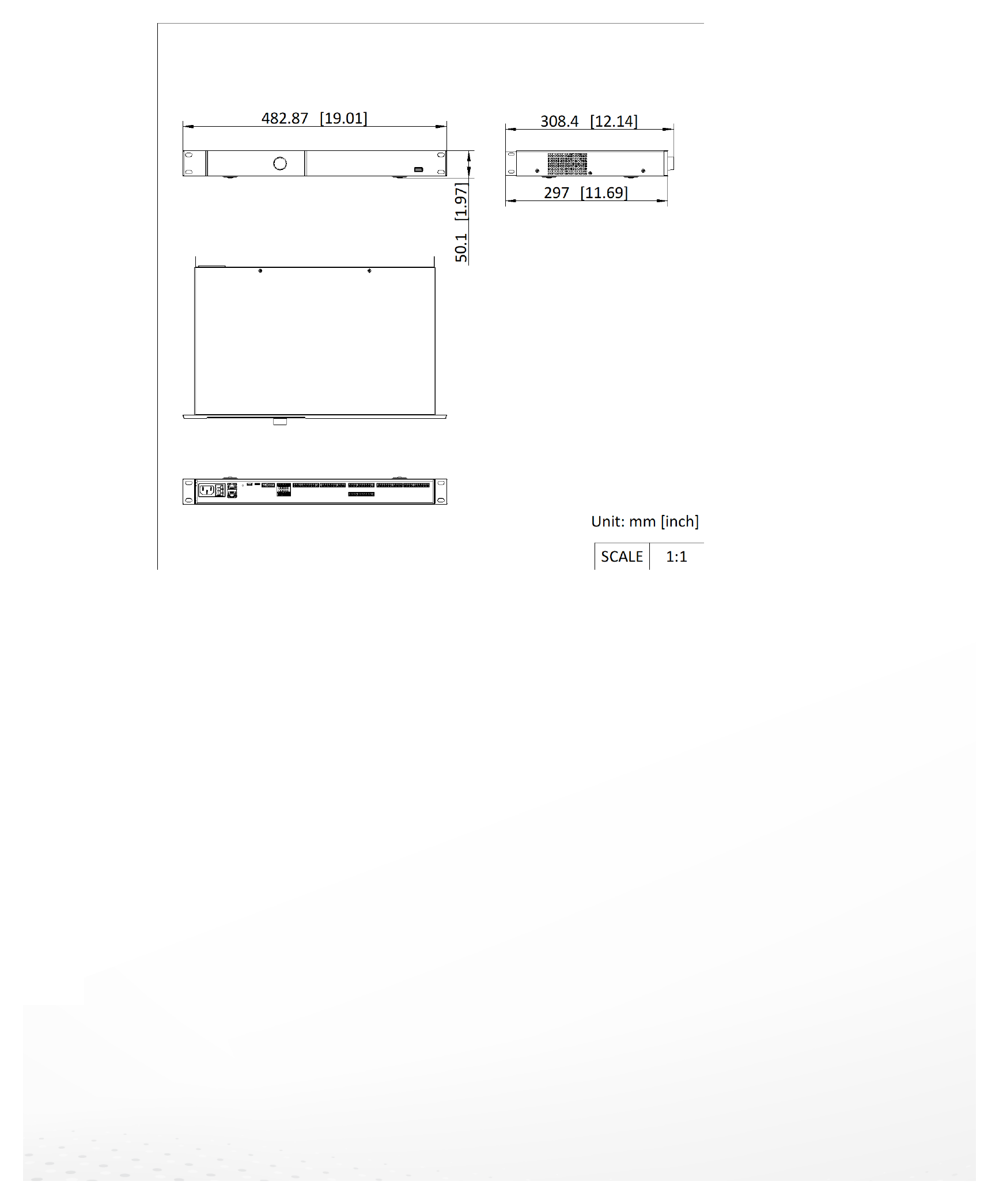

| Without Package: 482.87 × | 50.1 × 297 mm (19.01" × 1.97" × 11.69") |
|---|
