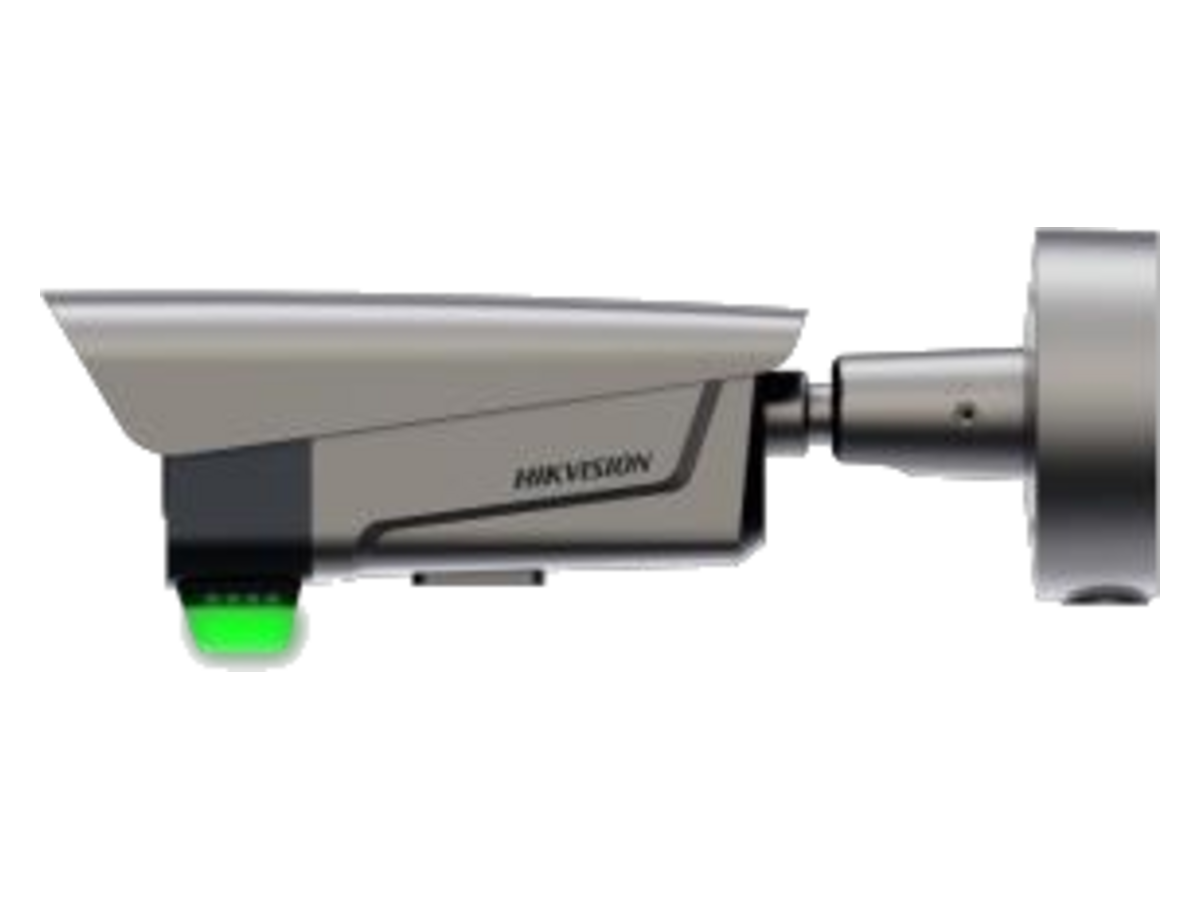

Hikvision DS-TCG406-E(ER) 為4 MP Access ANPR Camera with Remote Control，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-TCG406-E(ER) 香港價格連安裝報價。
| Remote Controller Frequency | 433 MHZ |
|---|---|
| Remote Controller Capacity | 10, 000 30m |
| Indicator Color | Red, Green, Blue |
| 工作模式 | Constant on/Flashing |
| Loudspeaker Power | 2W 2.8 to 12 mm 8 to 32 mm 2.8 to 12 mm: F1.4 to F2.5 8 to 32 mm: F1.7-F1.7 2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal |
| 鏡頭及視場角 | FoV: 141.1° to 48°, 8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3° |
| 對焦 | Auto, Vari-focal lens, motor-driven lens |
| 補光類型 | IR Light, Warm White Light Video: 2.8 mm to 12 mm: 25 m 8 mm to 32 mm: 50 m Vehicle License Plate: 2.8 mm to 12 mm: 10 m 8 mm to 32 mm: 20 m |
| 紅外波長 | Warm White Light 3000 K, IR Light 850 nm |
| Trigger Type | Video Detection, I/O Coil, Radar Mixed Traffic |
| Picture Type | Scene Picture, Scene Picture + Close-up Picture |
| Scene Mode | Entrance & Exit Toll Gate, Underground Parking Entrance & Exit |
| Capture Type | Strobe Light Mode |
| Image Format | JPEG |
| Capture Resolution | 2688 × 1520 |
| License Plate Recognition | Forward, Backward, Bidirection |
| LED Control | Supports automatic light control/time control of LEDs ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition |
| Capture Picture Overlay | Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
| WDR | 140 dB 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Saturation: 0 to 100 Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are s electable. White balance: White Balance 1 and White Balance 2 are selectable. |
| 圖像參數切換 | Yes |
| WDR Switch | On, Time, Brightness |
| Frame Rate | 25 fps (P)/30 fps (N) |
| Barrier Gate Control Mode | By Camera/Platform/Mixed Enable/Disable Yes |
| Relay Output | 2-ch relay output, supporting opening and closing of barrier gates None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place |
| Allowlist and Blocklist | Up to 100,000 allowlist and blocklist totally |
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, Low profile |
| H.264 類型 | Medium profile High Profile |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| Bit Rate Type | Constant, Variable |
| SVC 分級編碼 | H.265 and H.264 encoding NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported. TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, O |
| 客戶端 | Hik-Connect, Hik-Central, SDKdemo, PMS Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2 |
| 最大解像度 | 2688 × 1520 |
| Sensor Type | 1/1.8" Progressive Scan CMOS Color: 0.0005 Lux @ (F1.2, AGC ON) |
| 最低照度 | B/W: 0.0001 Lux @ (F1.2, AGC ON) 0 Lux with IR |
| Shutter | 1/30 s to 1/100,000 s |
| 日夜模式 | Supported IR cut filter Blue glass module to reduce ghost phenomenon |
| Audio | 2 MIC |
| 警報輸入 | 3-ch triggered inputs |
| 警報輸出 | 2-ch alarm output |
| Wiegand | Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit |
| RS-485 | 2-ch RS-485 serial port |
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Memory Card Slot | 1 TF card slot, up to 1 TB Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5% Capture rate ≥99% Driving direction accuracy rate ≥98% |
| Vehicle Type Recognition | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motor cycle/Tricycle Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, F |
| ANPR Supported Country/Region | America: Canada, Mexico, Panama, Costa Rica, El Salvador, Guatemala, Trinidad and Tobago, Dominican Republic, Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Bolivia, Venezuela, Suriname Europe: Italy, Spain, Portugal, Greece, Croatia, Slovenia, Montenegro, Albania, the Republic of North Macedonia, Serbia, Bosnia and Herzegovina, Bulgaria, Romania, Malta, San Marino, Andorra, |
| EMC | 50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015) CB (IEC 62368-1: 2014 + A11); |
| 安全 | CE-LVD (EN 62368-1: 2014/A11: 2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| 供電 | DC 12-DC 24 V 1.25 A /PoE (802.3at,44 V to 57 V),350 mA to 270 mA |
| Working Consumption | 15 W Max |
| 尺寸 | 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch) |
| 防護等級 | IP68 (IEC 60529:2013) |
| 重量 | 3.25 kg (7.17 lb.) |
| Weight (with Package) | 4.3 kg (9.48 lb.) |
| Package Size | 456 mm × 206mm × 233 mm (17.95 × 8.11 × 9.17 inch) Temperature: -30 °C to 70 °C (-22 °F to 158 °F) Humidity: 95% (non-condensing) |
| Startup and Operating | Temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Conditions | Humidity: 95% (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →
415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)｜重量 3.25 kg (7.17 lb.)｜Unit: mm
DS-TCG406-E(ER) Hikvision 4 MP Access ANPR Camera with Remote Control亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，DS-TCG406-E(ER) 原廠行貨連保養，提供上門安裝、系統設定及使用教學，全港 32 區均有服務。
我們會按現場門型（玻璃門、木門、鐵閘）配置電鎖及出門按鈕，並以我們自行研發的考勤軟件設定考勤報表及權限分組，交付即可使用。
於我們自行研發的考勤軟件或網頁後台刪除該員工權限即時生效，無需回收實體鎖匙或更換門鎖。
兩者屬同系列產品，實際應該邊個型號更適合，需視乎現場環境同需求而定。歡迎直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 DS-TCG406-E(ER) 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱門禁系統安裝工程頁面或聯絡我們查詢保養範圍。
DS-TCG406-E(ER) Hikvision 4 MP Access ANPR Camera with Remote Control適合多種場景使用，以下為部分常見安裝場景，歡迎查詢是否適合您的現場環境。
創意工作坊裝門禁系統，租用時段開門、學員臨時權限、設備房分級管控，靈活管理共用空間。專業團隊上門評估，屯門、元朗場地歡迎洽談報價。
WhatsApp 查詢 →藥房藥劑室裝門禁系統，管制藥品儲存區權限、藥劑師授權進出、操作記錄追溯，符合監管要求。一站式勘測安裝，將軍澳、銅鑼灣各區即日約見報價。
WhatsApp 查詢 →實驗室裝門禁系統，危險品區多重核驗、研究人員分級權限、進出記錄審計，保障科研安全合規。免費評估方案、即時報價，灣仔、北角一帶歡迎查詢。
WhatsApp 查詢 →私人停車場裝門禁系統，月租車牌自動識別道閘、訪客取票繳費、車位狀態聯動，順暢管理進出。免費上門勘察、明碼實價報價，深水埗、葵涌一帶即日約期。
WhatsApp 查詢 →大廈天台機房裝門禁系統，維修人員授權進入、防擅闖警報、進出記錄留存，保護關鍵設施安全。全港覆蓋上門安裝，旺角、觀塘各區歡迎致電查詢。
WhatsApp 查詢 →快遞收件站裝門禁系統，取件碼開櫃聯動、員工分區授權、夜間自助取件管控，提升收派安全。免費上門度尺、按規模報價，中環、尖沙咀項目即約勘察。
WhatsApp 查詢 →查看更多門禁系統適用場景，請參閱 門禁系統安裝工程。
如需整套門禁系統方案，請參閱 門禁系統安裝工程。
