| Loudspeaker Power | 2W 2.8 to 12 mm 8 to 32 mm 2.8 to 12 mm: F1.2 to F2.5 8 to 32 mm: F1.7 to F1.73 2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal |
|---|
| 鏡頭及視場角 | FoV: 141.1° to 48°, 8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3° |
|---|
| 對焦 | Auto, Vari-focal lens, motor-driven lens |
|---|
| 補光類型 | IR Light, Warm White Light Video: 2.8 mm to 12 mm: 25 m 8 mm to 32 mm: 50 m Vehicle License Plate: 2.8 mm to 12 mm: 10 m 8 mm to 32 mm: 20 m |
|---|
| 紅外波長 | Warm White Light 3000 K, IR Light 850 nm |
|---|
| Trigger Type | Video Detection, I/O Coil, Radar Mixed Traffic |
|---|
| Picture Type | Scene Picture, Scene Picture + Close-up Picture |
|---|
| Scene Mode | Entrance & Exit Toll Gate, Underground Parking Entrance & Exit |
|---|
| Capture Type | Strobe Light Mode |
|---|
| Image Format | JPEG |
|---|
| Capture Resolution | 2688 × 1520 |
|---|
| License Plate Recognition | Forward, Backward, Bidirection |
|---|
| LED Control | Supports automatic light control/time control of LEDs ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition |
|---|
| Capture Picture Overlay | Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type |
|---|
| WDR | 140 dB 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) Brightness: 0 to 100 Contrast: 0 to 100 Gain: 0 to 100 3D DNR: Off, Normal, and Expert modes are selectable. White balance: White Balance 1 and White Balance 2 are |
|---|
| 圖像參數切換 | Yes |
|---|
| WDR Switch | On, Time, Brightness |
|---|
| Frame Rate | 25 fps (P)/30 fps (N) |
|---|
| Barrier Gate Control Mode | By Camera/Platform/Mixed Enable/Disable Yes |
|---|
| Relay Output | 2-ch relay output, supporting opening and closing of barrier gates None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place |
|---|
| Allowlist and Blocklist | Up to 100,000 allowlist and blocklist totally |
|---|
| ROI | 8 regions respectively for main stream and sub-stream, 6 levels for each region. Main stream: H.265/H.264/MJPEG, Sub-stream: H.265/H.264/MJPEG, Low profile |
|---|
| H.264 類型 | Medium profile High Profile |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| Bit Rate Type | Constant, Variable |
|---|
| SVC 分級編碼 | H.265 and H.264 encoding NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported. TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, O |
|---|
| 客戶端 | Hik-Connect, Hik-Central, SDKdemo, PMS Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+ Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HT |
|---|
| 最大解像度 | 2688 × 1520 |
|---|
| Sensor Type | 1/1.8" Progressive Scan CMOS |
|---|
| 最低照度 | B/W: 0.0001 Lux @ (F1.2, AGC ON) 0 Lux with IR |
|---|
| Shutter | 1/30 s to 1/100,000 s |
|---|
| 日夜模式 | Supported IR cut filter Blue glass module to reduce ghost phenomenon |
|---|
| Audio | 1 input (line in), 1 output (line out) |
|---|
| 警報輸入 | 3-ch triggered inputs |
|---|
| 警報輸出 | 1-ch alarm output |
|---|
| Wiegand | Supported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit |
|---|
| RS-232 | 1-ch RS-485 serial port |
|---|
| RS-485 | 1-ch RS-232 serial port |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet port |
|---|
| Memory Card Slot | 1 TF card slot, up to 1 TB Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98.5% Capture rate ≥99% Driving direction accuracy rate ≥98% |
|---|
| Vehicle Type Recognition | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fi |
|---|
| ANPR Supported Country/Region | America: Canada, Mexico, Panama, Costa Rica, El Salvador, Guatemala, Trinidad and Tobago, Dominican Republic, Argentina, Brazil, Chile, Colombia, Peru, Ecuador, Paraguay, Uruguay, Bolivia, Venezuela, Suriname Europe: Italy, Spain, Portugal, Greece, Croatia, Slovenia, Montenegro, Albania, the Republic of North Macedonia, Serbia, Bosnia and Herzegovina, Bulgaria, Romania, Malta, San Marino, Andorra, |
|---|
| EMC | 50130-4: 2011 + A1: 2014); KC (KN 32: 2015, KN 35: 2015) CB (IEC 62368-1: 2014 + A11); |
|---|
| 安全 | CE-LVD (EN 62368-1: 2014/A11: 2017); BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005); |
|---|
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
|---|
| 供電 | 12 to 24 VDC/PoE (802.3af, 44 V to 57 V), 300 mA to 230 mA |
|---|
| Working Consumption | 10 W Max. |
|---|

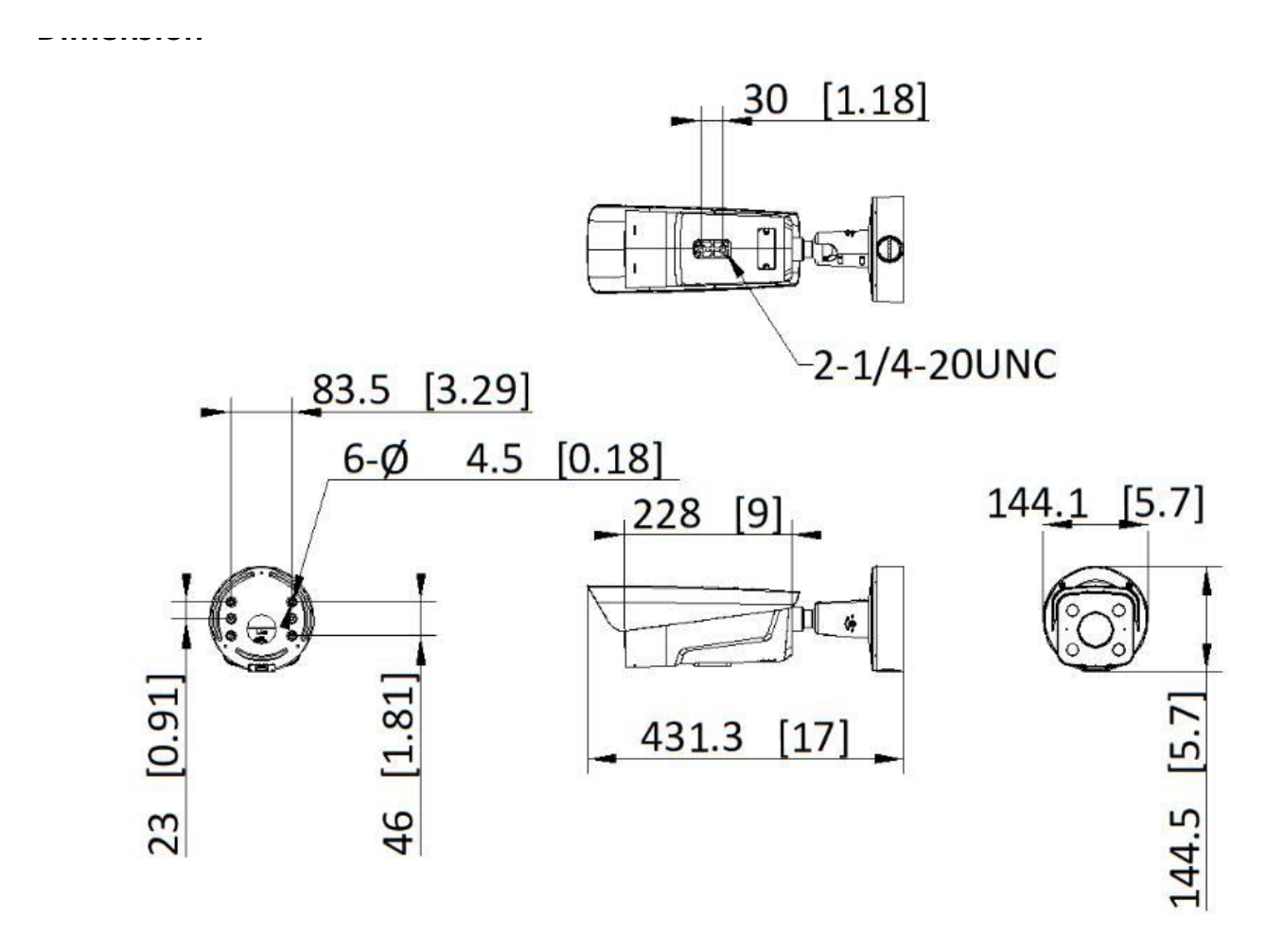

| 尺寸 | 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch) |
|---|
| 防護等級 | IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013) |
|---|
| 重量 | 3.25 kg (7.17 lb.) |
|---|
| Weight (with Package) | 4.3 kg (9.48 lb.) |
|---|
| Package Size | 465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch) Temperature: -20 °C to 70 °C (- 4°F to 158 °F) Humidity: 95% (non-condensing) |
|---|
| Startup and Operating | Temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
|---|
| Conditions | Humidity: 95% (non-condensing) 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Language Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Tradi tional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
|---|
