| Working Frequency | 60 to 61 GHz |
|---|
| Modulation Waveform | FMCW |
|---|
| Horizontal Detection Angle | ± 14.5° @ Narrow Beam, ± 60° @ Wide Beam |
|---|
| Vertical Detection Angle | ± 4.5° @ Narrow Beam, ± 12.6°@ Wide Beam |
|---|
| Coverage Lanes | Up to 8 lane(s) |
|---|
| Detection Distance | 350 m @ Narrow Beam, 100 m @ Wide Beam |
|---|
| Distance Resolution | 0.88 m @ Narrow Beam, 0.3 m @ Wide Beam |
|---|
| Speed Resolution | 0.13 m/s |
|---|
| Angle Resolution | 1.86° @ Narrow Beam, 6.23° @ Wide Beam |
|---|
| Speed Measuring Range | -300 to 300 km/h |
|---|
| Max. Detectable Targets | Up to 256 target(s) |
|---|
| Speed Measuring Accuracy | ± 2 km/h |
|---|
| Trigger Mode | Approaching direction, Leaving direction, Bidrection |
|---|
| Sweep Bandwidth | 169M Hz @ Narrow Beam, 500M Hz @ Wide Beam |
|---|
| 網絡接口 | 1 RJ 45 10 M/100 M self-adaptive Ethernet port |
|---|
| RS-485 | 1 RS-485 |
|---|
| 供電 | DC 12 V to 24 V, 1.5 A, max. 18 W, two-core terminal block |
|---|
| 材質 | Cover: PC, main body: ADC12 |
|---|

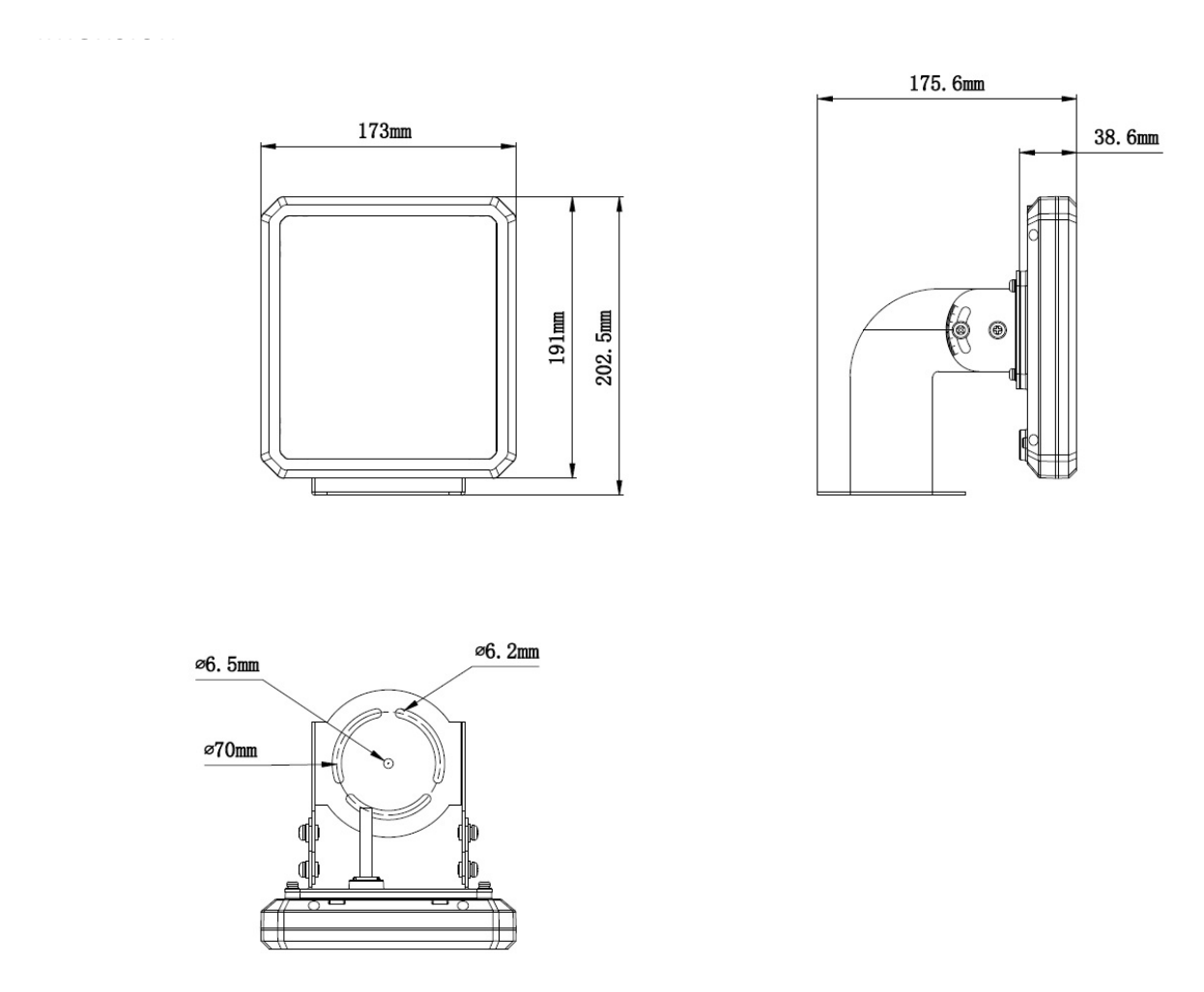

| 尺寸 | 173 mm × 175.6 mm × 202.5 mm (6.81" × 6.91" × 7.97") (L × W × H) |
|---|
| Package Dimensions | 270 mm × 250 mm × 223 mm (10.62" × 9.84" × 8.78") (L × W × H) |
|---|
| 重量 | Approx. 1.80 kg (9.97 lb.) |
|---|
| 連包裝重量 | Approx. 2.33 kg (5.14 lb.) |
|---|
| 工作環境 | -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
|---|
| Storage Condition | -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing) |
|---|
| Installation Height | 6 to 10 m (Recommend height: 6 m) |
|---|
| EMC | EN 301 489-1 V2.2.3:2019, EN 301 489-3 V2.1.1:2019 CE-RED: EN IEC 61326-1:2021, DRAFT EN 305 550 V2.1.0:2017, EN 62479:2010, EN |
|---|
| RF | 50663:2017 KC: KS X 3124, KS X 3123 CB:IEC 61010-1:2010, IEC 61010-1:2010/AMD1:2016 CE-LVD: EN 61010-1:2010+A1:2019 |
|---|
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IP67: IEC 60529-2013 |
|---|
