HIKVISION DS-TMG420 門禁系統安裝・保養

Name: HIKVISION DS-TMG420 Barrier Gate with Straight Boom Pole
Brand: Hikvision
SKU: DS-TMG420

產品簡介

Hikvision DS-TMG420 為Barrier Gate with Straight Boom Pole，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-TMG420 香港價格連安裝報價。

Barrier Housing Material：SGCC
Barrier Housing Thickness：1.5 mm
Barrier Housing Door Thickness：1.2 mm
Barrier Housing Color：Iron gray
Barrier Housing Door Color：Orange red

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝門禁、裝考勤、裝打卡系統工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

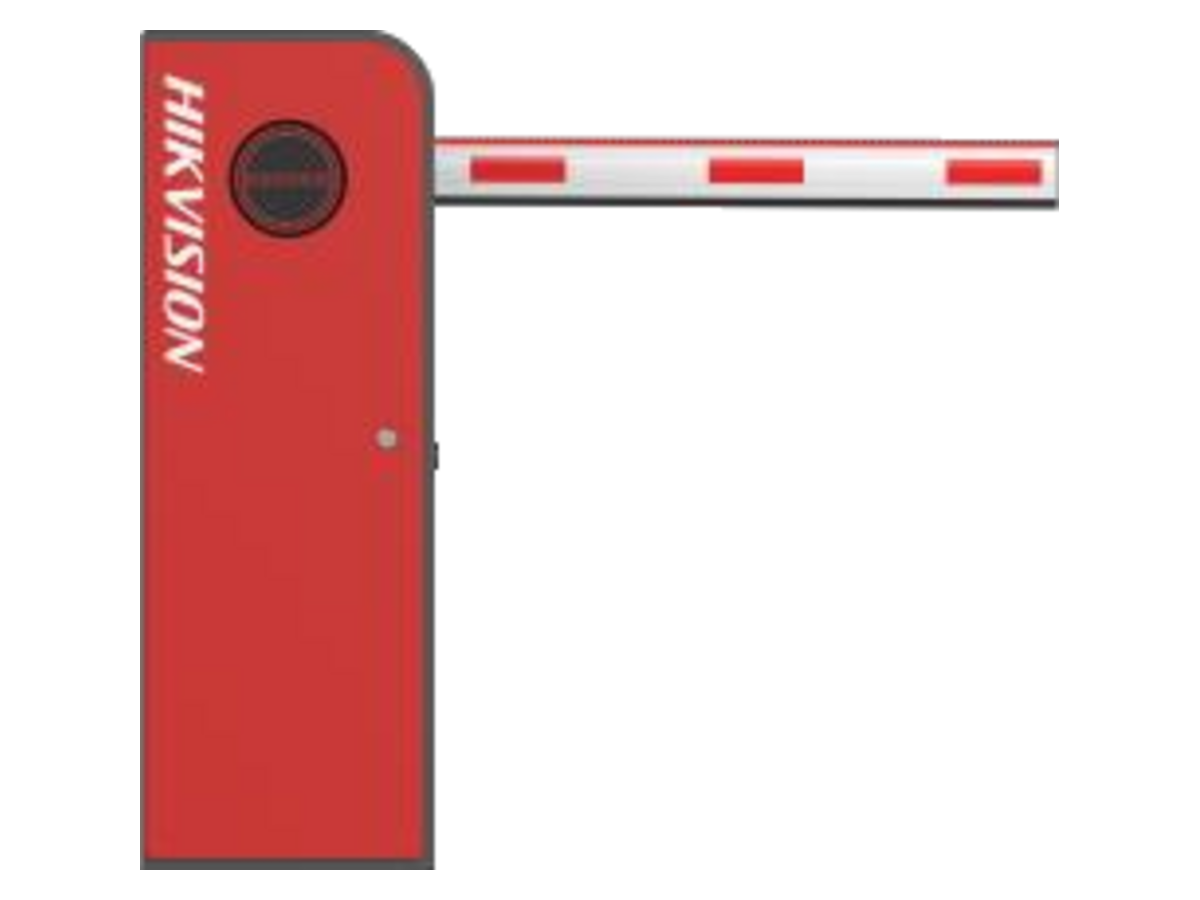

DS-TMG420 Hikvision Barrier Gate with Straight Boom Pole 產品圖片

詳細規格

Barrier Housing Material	SGCC
Barrier Housing Thickness	1.5 mm
Barrier Housing Door Thickness	1.2 mm
Barrier Housing Color	Iron gray
Barrier Housing Door Color	Orange red
Boom Pole Installation Height	885 mm with body indicator. Green: arrow indicator. Red: prohibition indicator with strip light. Green & Red 3m light pole, right by default, direction switchable Rising Speed: 1.8 S Falling Speed: 1.8 S 4m light pole, right by default, direction switchable Rising Speed: 2.5 S Falling Speed: 2.5 S
Boom Pole Direction	right by default, direction switchable
Motor Type	DC brushless motor
Matched Boom Pole Type	Octagonalstraight boom pole: 3 to 4 m
Boom Pole Falling Delay	10 s by default (configurable), min. 2 s (every 2 s followed a gap)
Number of Cycles	5,000,000
Working Voltage	220 VAC
功耗	Max. 139 W
Temperature and Humidity	Temperature: -30 °C to 60 °C (-22 °F to 140 °F),Humidity: ≤ 90%

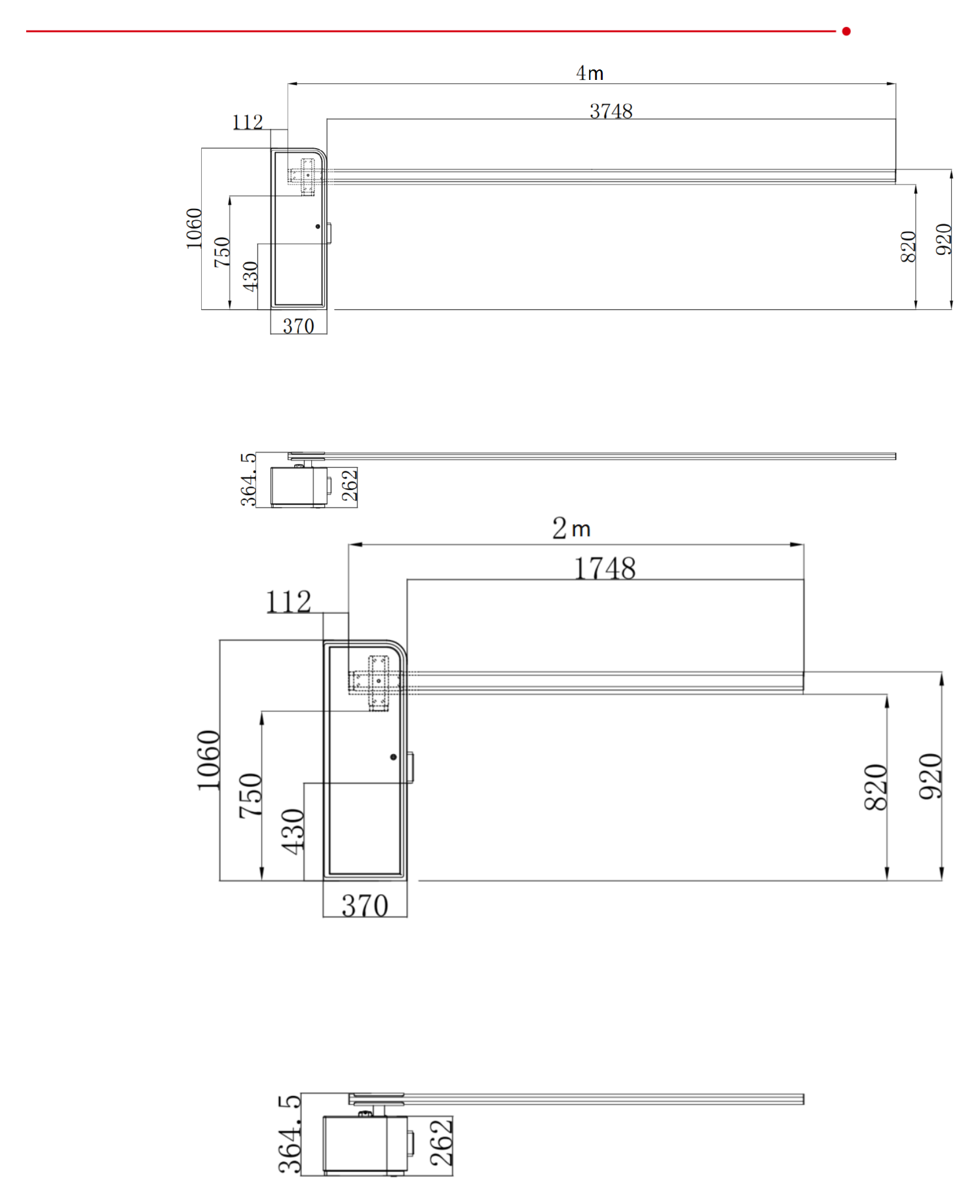

Rising Boom Pole for Poweroff	Optional, not supported by default 1060 × 370 × 262 mm (41.73 × 14.57 × 10.31 inch)
Body Weight	43 ± 3 kg (94.8 ± 6.61 lb.) 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch) 47 ± 3 kg (103.61 ± 6.61 lb.)
Duty Cycle	100%
RS-485	1 group
Rising to Limit	1 group
Falling to Limit	1 group
Open	1 group
Close	1 group
Stop	1 group
IR/Vehicle Detector/Radar	1 group
Traffic Signal Light	1 group, external power supply required, max. 220 VAC supported CE-RED EN 300220-1 V3.1.1 EN 300220-2 V3.1.1 EN 301489-1 V2.2.3 EN 301489-3 V2.1.1 EN IEC 62311: 2020 CE-EMC： EN 55032: 2015/A11: 2020 + A1: 2020,
EMC	EN IEC 61000-3-2: 2019/A1: 2021, EN 61000-3-3: 2013 + A1: 2019/A2: 2021, EN 50130-4: 2011 + A1: 2014 CE-LVD: EN 62368-1: 2014/A11: 2017
安全	CB: IEC 62368-1: 2014 IEC 62368-1: 2018
Environment	ROHS
防護等級	IP54, IK09 Boom Pole
Boom Pole Color	White background with red bar 3 m boom pole with LED strip light: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.) Boom Pole Weight 4 m boom pole with LED strip light: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.)
Boom Pole Dimensions (with	3 m boom pole with LED strip light: 100 × 60 × 3035 mm (3.94 × 2.36 × 120.07 inch)
Package)	4 m boom pole with LED strip light: 100 × 60 × 4035 mm (3.94 × 2.36 × 159.45 inch)
Boom Pole Weight (with	3 m boom pole with LED strip light: 4.0 ± 0.3 kg (8.82 ± 0.66 lb.)
Color of Boom Pole with LED	Photometric parameters:
Strip Light	Red: luminous flux 39.44 lm, light effect 17.86 lm/W Green: luminous flux 107.56 lm, light effect 45.65 lm/W Working life (lighting time): 5800 h 3 m boom pole with LED strip light: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch) Boom Pole Dimensions 4 m boom pole with LED strip light: 95 × 49 × 4013 mm (3.74 × 1.93 × 157.99 inch)
Boom Pole Material	AL6061
