Name: HIKVISION DS-TMG421 Barrier gates with curved boom pole
Brand: Hikvision
SKU: DS-TMG421

產品簡介

Hikvision DS-TMG421 為Barrier gates with curved boom pole，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 DS-TMG421 香港價格連安裝報價。

Barrier Housing Material：SGCC
Barrier Housing Thickness：1.5 mm
Barrier Housing Door Thickness：1.2 mm
Barrier Housing Color：Iron gray
Barrier Housing Door Color：Orange red

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝門禁、裝考勤、裝打卡系統工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

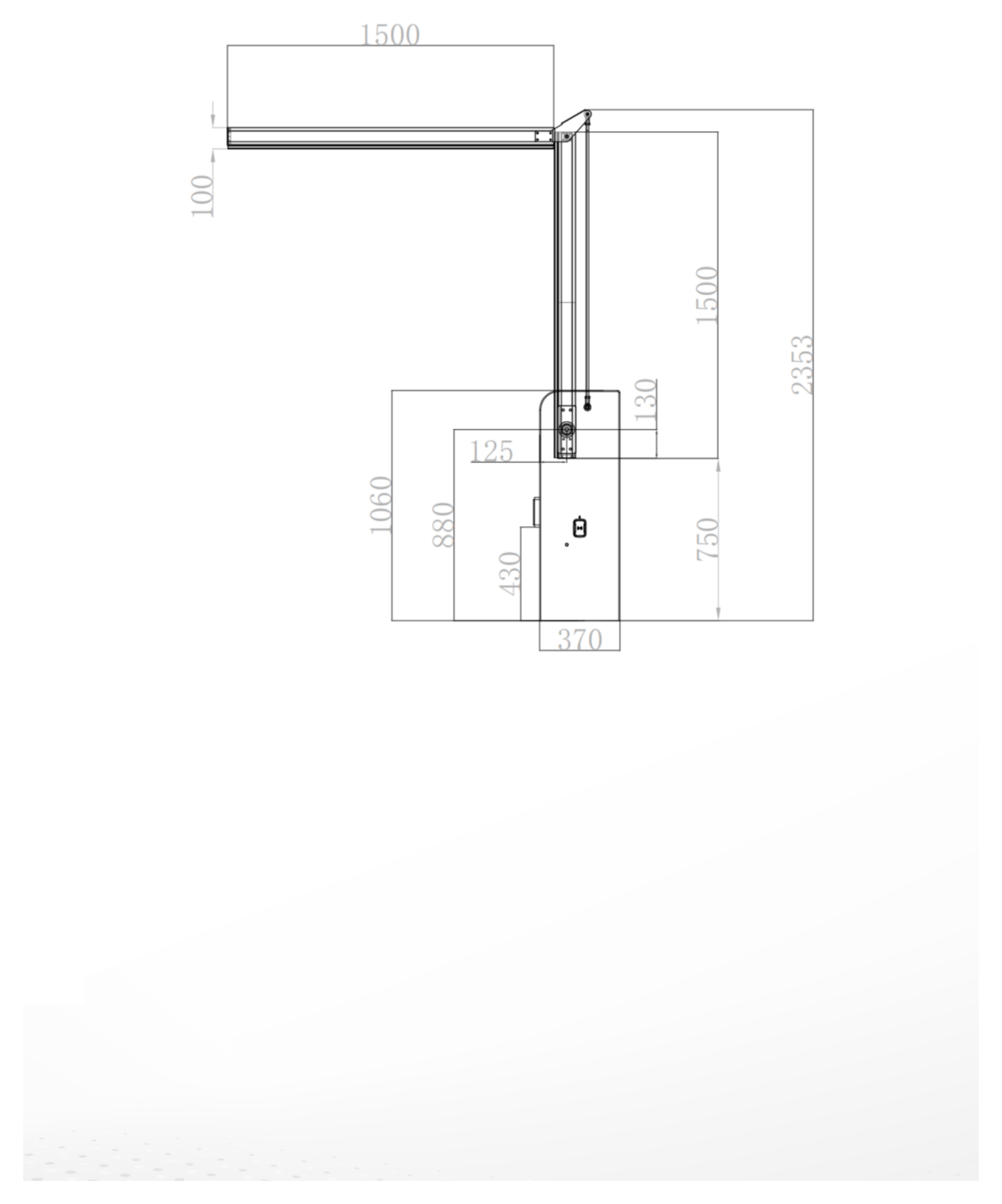

DS-TMG421 Hikvision Barrier gates with curved boom pole 產品圖片

詳細規格

Barrier Housing Material	SGCC
Barrier Housing Thickness	1.5 mm
Barrier Housing Door Thickness	1.2 mm
Barrier Housing Color	Iron gray
Barrier Housing Door Color	Orange red
Boom Pole Installation Height	885 mm DS-TMG421, DS-TMG421-L, DS-TMG421-R: no body indicator
Body Indicators	DS-TMG421/B, DS-TMG421-L/B, DS-TMG421-R/B: With body indicator. Green: access indicator. Red: prohibition indicator. DS-TMG421, DS-TMG421/B: right by default, direction switchable
Boom Pole Direction	DS-TMG421-L, DS-TMG421-L/B: Left DS-TMG421-R, DS-TMG421-R/B: Right
Motor Type	DC brushless motor
Matched Boom Pole Type	Folding boom pole
Rising/Falling Speed	1.5 + 1.5 m: 2 s,2 + 2 m: 3s,2.5 + 2.5 m: 5s
Boom Pole Falling Delay	10 s by default (configurable), min. 2 s (every 2 s followed a gap)
Number of Cycles	5,000,000
Working Voltage	100-120VAC / 200-240VAC (default 220-240V，switchable) DS-TMG421, DS-TMG421-L, DS-TMG421-R: Max. 158 W DS-TMG421/B, DS-TMG421-L/B, DS-TMG421-R/B: Max. 168 W
Temperature and Humidity	Temperature: -30 °C to 60 °C (-22 °F to 140 °F),Humidity: ≤ 90%
Rising Boom Pole for Poweroff	Optional, not supported by default
Duty Cycle	100%
RS-485	1 group
Rising to Limit	1 group
Falling to Limit	1 group
Open	1 group
Close	1 group
Stop	1 group
IR/Vehicle Detector/Radar	1 group
Traffic Signal Light	1 group, external power supply required, max. 220 VAC supported
Boom Pole Color	White background with red bar 1.5 + 1.5 m: 5 ± 0.3 kg (11.02 ± 0.66 lb.)
Boom Pole Weight	2 + 2 m: 6.35 ± 0.3 kg (14 ± 0.66 lb.) 2.5 + 2.5 m: 7.45 ± 0.3 kg (16.42 ± 0.66 lb.) 1.5 + 1.5 m: 220 × 90 × 1720 mm (8.66 × 3.54 × 67.71 inch) 2 + 2 m: 220 × 90 × 2220 mm (8.66 × 3.54 × 87.4 inch) 2.5 + 2.5 m: 220 × 90 × 2720 mm (8.66 × 3.54 × 107.09 inch) Boom Pole Weight (with 2 + 2 m: 6.63 ± 0.3 kg (14.62 ± 0.66 lb.) Package) 2.5 + 2.5 m: 8.0 ± 0.3 kg (17.64 ± 0.66 lb.) 1.5 + 1.5 m: 178 × 79 ×
Boom Pole Dimensions	2 + 2 m: 178 × 79 × 4065.5 mm (70.08 × 31.1 × 1600.59 inch) 2.5 + 2.5 m: 178 × 79 × 5065.5 mm (70.08 × 31.1 × 1994.29 inch)
Boom Pole Material	AL6061 CE-RED EN 300220-1 V3.1.1 EN 300220-2 V3.1.1 EN 301489-1 V2.2.3 EN 301489-3 V2.1.1 EN IEC 62311: 2020 CE-EMC： EN 55032: 2015/A11: 2020 + A1:2020,
EMC	EN IEC 61000-3-2: 2019/A1: 2021, EN 61000-3-3: 2013 + A1: 2019/A2: 2021, EN 50130-4: 2011+A1: 2014 CE-LVD: EN 62368-1: 2014/A11: 2017
安全	CB: IEC 62368-1: 2014 IEC 62368-1: 2018
Environment	ROHS
防護等級	IP54, IK09 Package Barrier Housing Dimensions (L × 1060 × 370 × 262 mm (41.73 × 14.57 × 10.31 inch) W × H)
Body Weight	43 ± 3 kg (94.8 ± 6.61 lb.) Body Dimensions (with Package, 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch) Without Boom Pole) (L × W × H) Body Weight (with Package, 47 ± 3 kg (103.61 ± 6.61 lb.) Without Boom Pole)
