| 視頻壓縮 | H.264,H.265 8 CH access, up to 20MP resolution (4 directly connected, 4 connected through a switch) |
|---|
| 用戶管理 | Up to 32 users,3 user levels: administrator, operator, and user |
|---|
| API | ISUP,ISAPI,SDK,OTAP TCP/IP,UDP,IPv4/IPv6,ARP,ICMP,DHCP,802.1X,QoS,DNS,DDNS,SSL/TLS,HTTP,HTTPS,NT P,IGMP,RTP,RTSP,RTCP,FTP,SNMP,SSH2 Password protection,Complicated password,HTTPS encryption,802.1X authentication |
|---|
| 安全 | (EAP-PEAP; EAP-LEAP; EAP-MD5),Watermark,Basic and diges t authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.1 |
|---|
| 同時取流 | Up to 8 channel(s) |
|---|
| 瀏覽器 | Chrome 89.0+ Hik-Central Master, Hik-Central Pro, HikCentral Master Lite 4 RJ45 100 M self-adaptive Ethernet port(s),2 RJ45 10/100/1000 M self-adaptive Ethernet port(s) |
|---|
| 警報 | 1 × input, 1 × output |
|---|
| RS-485 | 1 RS-485 |
|---|
| RS-232 | 2 RS-232 |
|---|
| USB | 1 × USB 2.0 (5.0 V, 1.0 A) |
|---|
| Optical Interface | 1 SFP model |
|---|
| Data Storage | Vehicle information (passing records and pictures) storage Video recording function. Recording duration is determined by the stream size and the HDD capacity. |
|---|
| Network Settings | Able to set two-segment IP address Receive and display traffic parameters statistics; Alarm in; Alarm output; Support |
|---|
| Smart Function | blacklist arm and whitelist arm; Segment speed detection; Face evidence; HDD detection |
|---|
| Data Uploading | Real time data upload and history data upload |
|---|
| Operating GUI | Web |
|---|
| 操作系統 | Linux 4 × indicator (1 × Power Indicator, 1 × Alarm Indicator, 1 × HDD Indicator, 1 × Ready Indicator) |
|---|
| Storage | 1 x SATA(Supports up to 8TB HDD) 12 VDC ± 10%, max. 30 W |
|---|

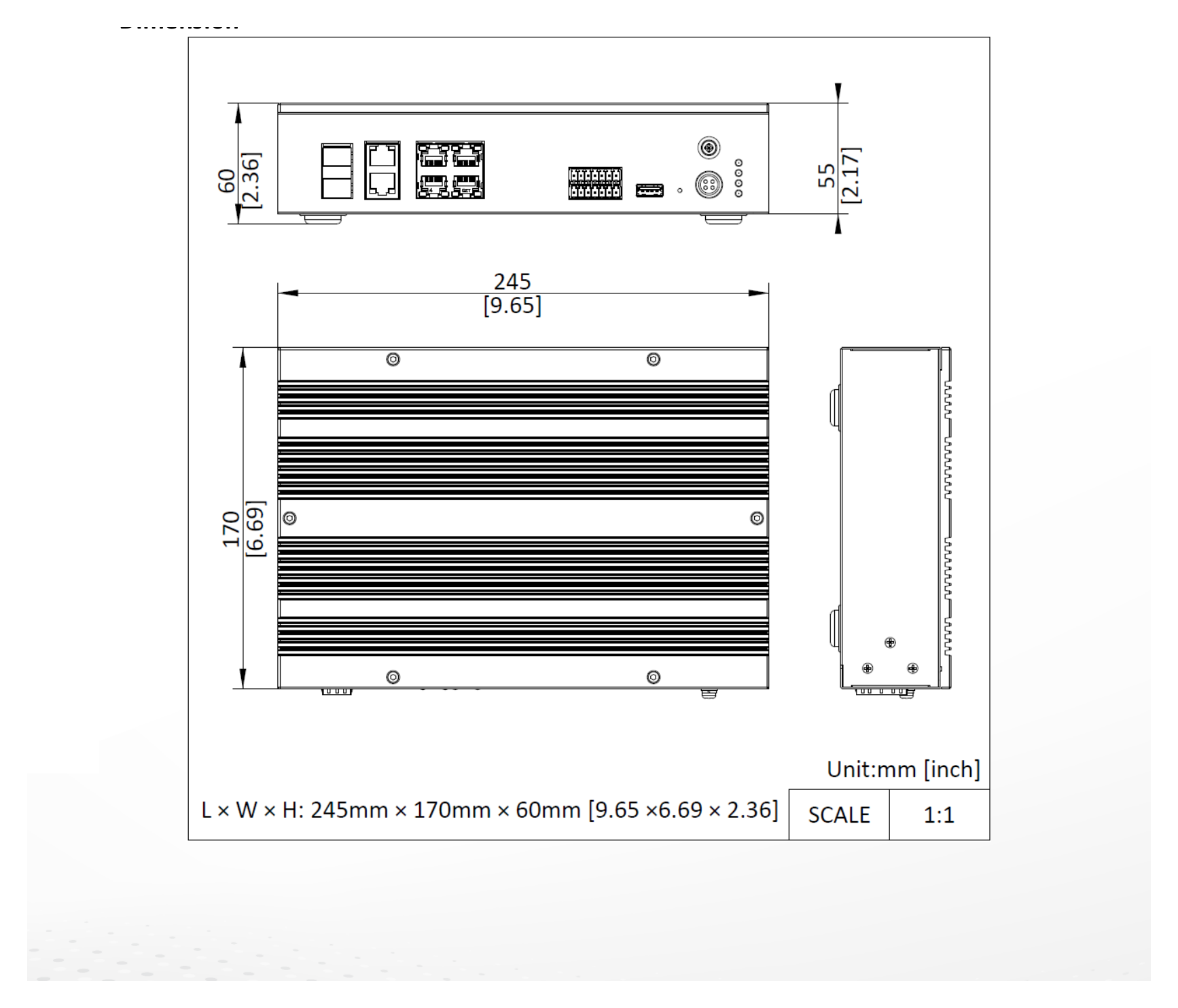

| 尺寸 | 245 mm × 170 mm × 55 mm (9.6" × 6.7" × 2.1") (L × W × H) |
|---|
| With Package Dimensions | 427 mm × 243 mm × 105 mm (16.81" × 9.57" × 4.13") (L × W × H) |
|---|
| 重量 | Approx. 2.1 kg (4.63 lb.) |
|---|
| 連包裝重量 | Approx. 2.9 kg (6.39 lb.) |
|---|
| 工作環境 | -30 °C to 55 °C (-22 °F to 131 °F). Humidity: 5% to 95% (non-condensing) |
|---|
| Storage Condition | -30 °C to 55 °C (-22 °F to 131 °F). Humidity 95% or less (non-condensing) CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000 -3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
|---|
| Safety | CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017 |
|---|
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
|---|
