| 視頻壓縮 | H.264,H.265 |
|---|
| Video Input | 16 CH access; up to 12MP resolution TCP/IP,UDP,IPv4/IPv6,ARP,ICMP,DHCP,802.1X,QoS,DNS,DDNS,SSL/TLS,HTTP,HTTPS,NT P,IGMP,RTP,RTSP,RTCP,FTP,SNMP,SSH2 |
|---|
| API | ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T),ISAPI,SDK,OTAP Password protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP; EAP-LEAP; EAP-MD5),Watermark,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.1 |
|---|
| 用戶管理 | Up to 127 users, 3 user levels: administrator, operator, and user Hik-Central Master, |
|---|
| 客戶端 | Hik-Central Pro, HikCentral Master Lite |
|---|
| 瀏覽器 | chrome 89.0+ 16 × 1000 M Ethernet interface, 1 × internal 10/100/1000 M self-adaptive Ethernet |
|---|
| 網絡接口 | interface, 1 × external 10/100/1000 M self-adaptive Ethernet interface, 1 × internal 1000 M fiber interface, 1 × external 1000 M fiber interface |
|---|
| 音訊輸入 | 1 |
|---|
| 音訊輸出 | 1 |
|---|
| 警報輸入 | 2 |
|---|
| 警報輸出 | 2 |
|---|
| RS-232 Interface | 2 (1 internal debugging，1 external debugging） |
|---|
| RS-485 Interface | 2 |
|---|
| USB | 1 × USB3.0 (up to 5V 2A) |
|---|
| Data Storage | Vehicle information (passing records and pictures) storage Video recording function. Recording duration is determined by the stream size and the HDD capacity. |
|---|
| Data Uploading | ANPR and manual uploading |
|---|
| Network Settings | Able to set two-segment IP address |
|---|
| 操作系統 | Embedded Linux operating system |
|---|
| Operating GUI | WEB |
|---|
| HDD Storage | 4 x SATA (Each SATA interface supports up to 8TB HDD.) 4 x indicator (1 x Power Indicator, 1 x Alarm Indicator, 1 x HDD Indicator, 1 x Ready Indicator) |
|---|
| 連包裝重量 | Approx. 7.95 kg (17.53 lb.) |
|---|
| 重量 | Approx. 5.69 kg (12.54 lb.) |
|---|
| Package Dimensions | 563 mm × 363 mm × 180 mm (22.1" × 14.3" × 7.1") (L × W × H) |
|---|

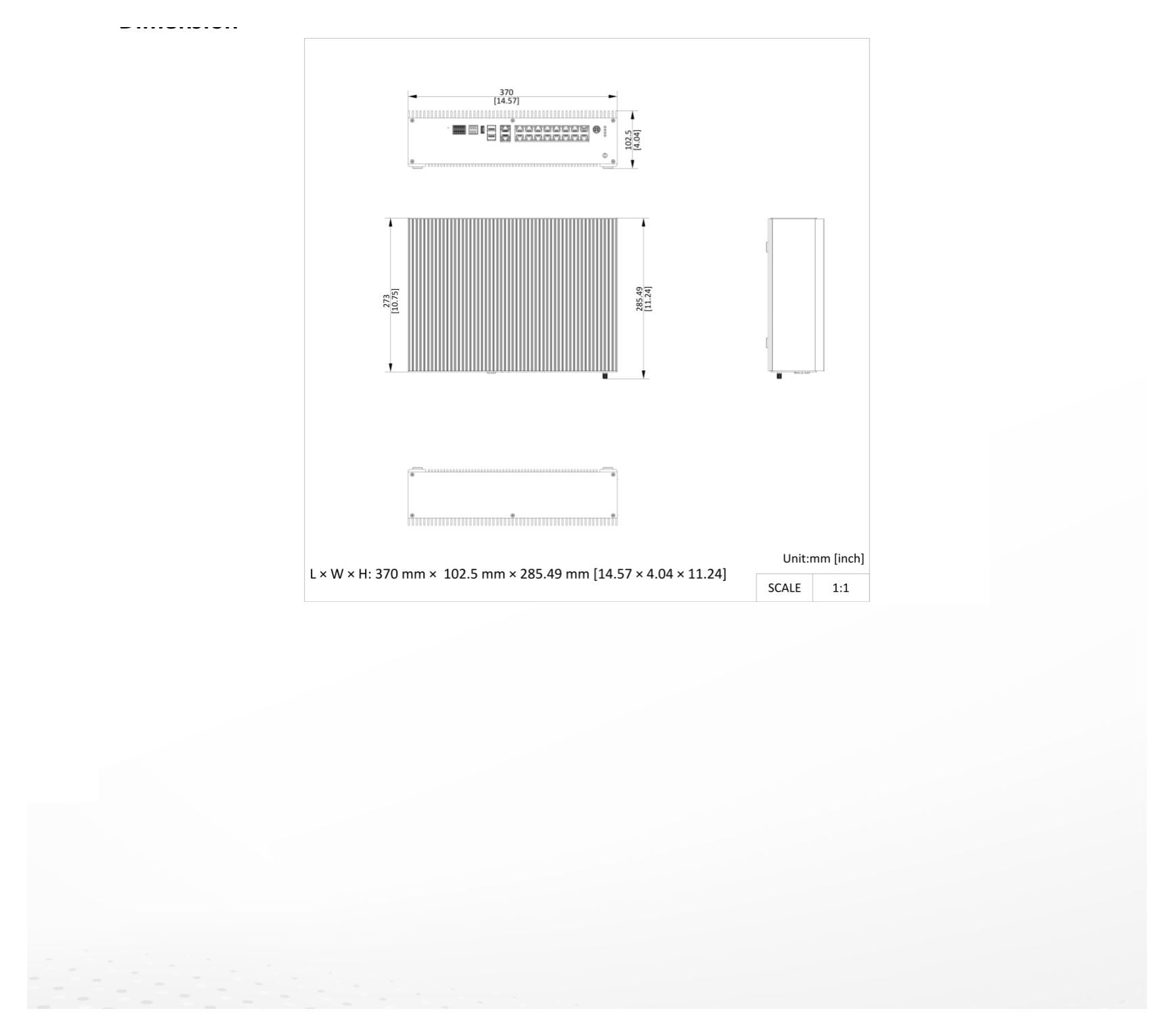

| 尺寸 | 370 mm × 273 mm × 102.5 mm (14.6" × 10.7" × 4.03") (L × W × H) |
|---|
| 供電 | DC 12 V ± 10%, 6 A, max. 72 W |
|---|
| 工作環境 | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 10% to 90% (non-condensing) |
|---|
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (Non-condensing) CE-EMC: EN 55032: 2015+A11:2020+A1:2020, EN IEC61000 -3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021, EN 50130-4: 2011+A1: 2014 |
|---|
| Safety | CB: IEC 62368-1:2014; CB: IEC 62368-1: 2018; CE-LVD: EN 62368-1:2014+A11:2017 CE-RoHS: 2011/65/EU, |
|---|
| Environment | WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
|---|
