| Timing Strategy | Supporting 64 phases, 255 patterns, 64 plans, 255 Schemes(Adjustable on demand) |
|---|
| Signal Control Board and | 4 output board(s), supporting 44 channel(s) and 16 group(s) signal lights (12 groups for |
|---|
| Channel | vehicle + 4 groups for pedestrian) •Fixed Cycle: A preset time is given to each movement every cycle, Multiple phase/cycle parameters can be set in different time periods. •Full-Actuated: Real-time optimization of green light timing based on traffic data, such as lane flow, in all lanes at the intersection. •Semi-Actuated: Based on traffic data in certain lanes, such as flow, it provides real-time |
|---|
| Signal Control Mode | and phase durations based on historical traffic data of the all lanes to Improve the traffic efficiency. •Single-Point Optimization: According to historical and real -time traffic data, timing parameters are calculated in advance and adjusted in real time during running. •Coordinates Green wave: Consider the linkage of multiple intersections, set parameters such as phase difference, and ensure tha |
|---|
| Control Type | Local mode,web control,HCM control,manual key control,third-party platform control |
|---|
| Manual Control | Auto, Manual, Step-to-Step, Yellow Flash, All Red and Special Directional control Supports web browser configuration, 3D interface display of the real -time status of the intersection Supports NTP time synchronization, satellite time synchronization (GPS antenna |
|---|
| Time Synchronization | installation required), manual time configuration, and third-party platform time synchronization |
|---|
| Countdown Timer Access | Self-learning mode,Pulse countdown,Chinese standard 2014/2004 |
|---|
| 升級方式 | Supports silent and restart upgrades |
|---|
| 網絡協議 | TCP/IP,HTTP,NTP, IPv4,802.1X,UDP |
|---|
| 客戶端 | HikCentral Master Lite,Hik-Central Master |
|---|
| 瀏覽器 | chrome 100+ |
|---|
| API | connect to the HCM through the OpenAPI ，or connect the device throught NTCIP Password protection,Complicated password,802.1X authentication (EAP -PEAP, |
|---|
| 安全 | EAP-LEAP, EAP-MD5),IP address filter,Host authentication (MAC address),Security audit log,Basic and digest authentication for HTTP/HTTPS |
|---|
| 網絡接口 | 1 RJ45 10M/100M self-adaptive Ethernet interface |
|---|
| RS-485 | 2 × RS-485 interface(s) |
|---|
| RS-232 | 1 × RS-232 interface(s) |
|---|
| USB | 1 × USB 2.0 Supports 8-ch pedestrian button input(s) Control Panel control buttons 5 buttons: Auto, manual, all red, yellow flash, and step-by-step control, or button Wireless Controller (Optional) customization |
|---|
| GPS (Optional) | ( Optional ) Support GPS Satellite Signal Real -time Timing |
|---|
| 電源輸出 | AC 100 V to 240 V,50/60 Hz |
|---|
| Power Input | AC 100 V to 240 V,50/60 Hz |
|---|
| Overall Power Consumption | ≤ 35 W (no load) |
|---|
| Signal Channel Consumption | ≤400W@AC220V;≤200W@AC110V |
|---|
| Insulation Resistance | ≥ 100 MΩ |
|---|
| Backup Power Supply | Supports manual switching of main and backup power supply |
|---|
| 工作環境 | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 95% or less (non-condensing) |
|---|
| Storage Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity: 95% or less (non-condensing) |
|---|
| 安裝方式 | Floor-standing |
|---|
| 淨重 | Approx. 86.1 kg (189.82 lb.) |
|---|
| 毛重 | Approx. 93 kg (205.03 lb.) |
|---|

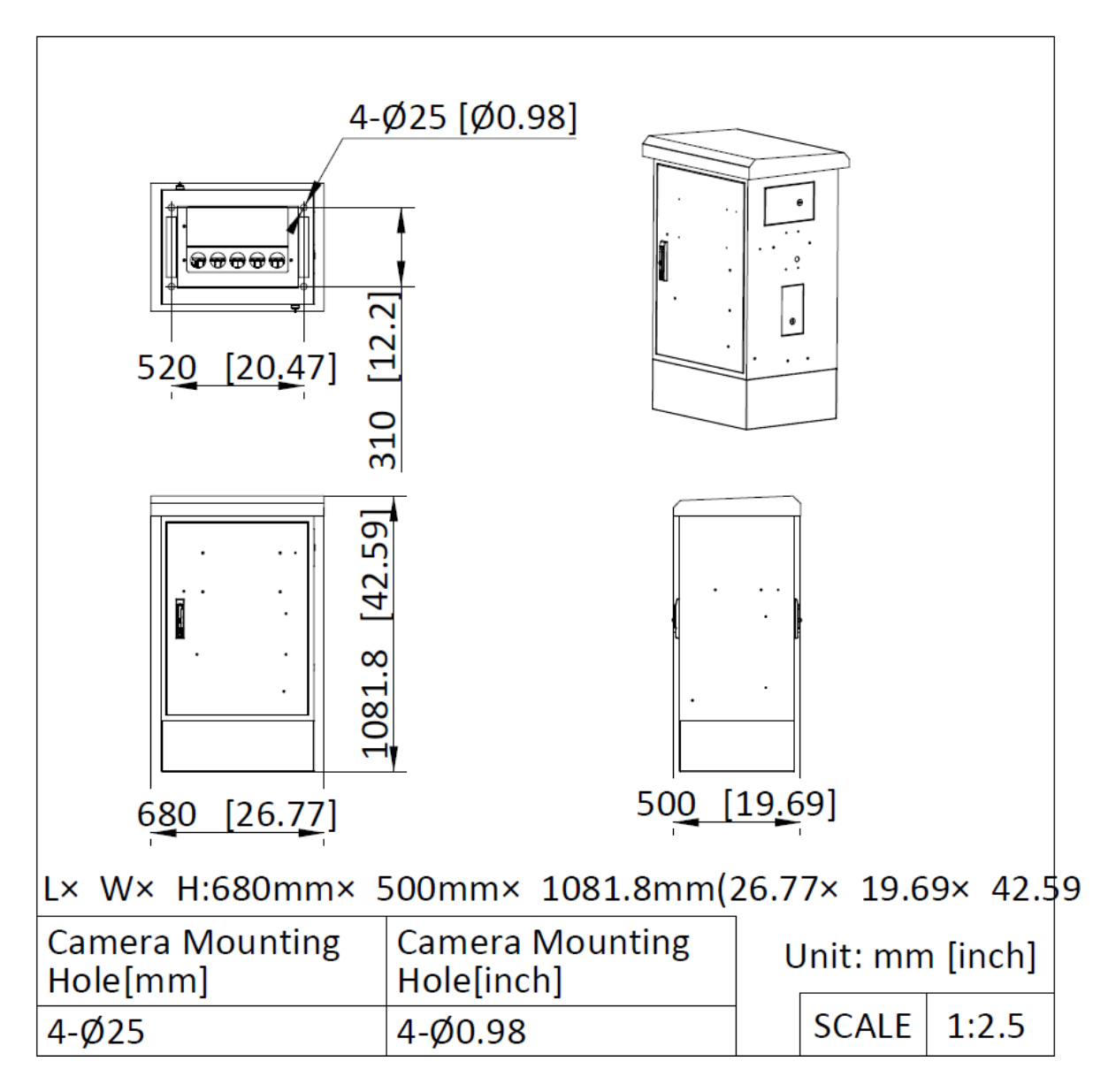

| Dimensions (Without Package) | 680 mm × 500 mm × 1081.8 mm (26.77" × 19.69" × 42.59") (L × W × H) |
|---|
| Dimensions (with Package) | 870 mm × 670 mm × 1270 mm (34.25" × 26.38" × 50.00") (L × W × H) |
|---|
| Cabinet Material | SECC |
|---|
| EMC | EN 50293:2012 |
|---|
| Safety | EN IEC:62311-1:2021,EN IEC:62311-2:2021 |
|---|
| Environment | CE-RoHS: 2011/65/EU |
|---|
| 防護等級 | IK10: IEC 62262:2002,IP54: IEC 60529-2013 |
|---|
