| 影像感測器 | 1/2.8" 2 MP CMOS |
|---|
| 最大解像度 | 1920 × 1080 MJPG: 1920 × 1080, 1280 × 960, 1280 × 720 @60/50/30/25 fps H.264: 1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 640 × 360 @60/50/30/25 fps |
|---|
| USB Output | YUY2/NV12: 1920 × 1080 @5 fps 1280 × 960 @10 fps 1280 × 720 @15 fps 640 × 480, 640 × 360 @30/25 fps |
|---|
| 快門速度 | PAL: 1/25 s to 1/10,000 s,NTSC: 1/30 s to 1/10,000 s |
|---|
| Object Distance Range | Wide: 0.1 m to ∞, Tele: 1.5 m to ∞ |
|---|
| Optical Zoom | ×12 |
|---|
| Digital Zoom | ×4 (YUV Format: ×1.5) |
|---|
| 角度調節 | Pan: -165° to 165°,Tilt: -30° to 30° Varifocal lens: 3.4 mm to 40.8 mm, equivalent focal length: 23.1 mm to 277.2 mm Horizontal FOV: 80.5° to 7.6°, vertical FOV: 50.5° to 4.4°, diagonal FOV: 88.9° to 8.7° |
|---|
| 對焦 | Auto/Semi-auto mode, supporting selection of focus area |
|---|
| 類型 | MEMS |
|---|
| Polar Pattern | 360° omni-directional |
|---|
| Pickup Distance | In a radius of up to 5 m |
|---|
| 數量 | Dual-microphone |
|---|
| 頻率響應 | 100 Hz to 8 kHz |
|---|
| 靈敏度 | -32 ± 3 dBV/Pa |
|---|
| 信噪比 SNR | 70 dB(A) |
|---|
| 取樣率 | 16 kHz/32 kHz/48 kHz Support adjustment of related parameters such as exposure, white balance and image settings (including image DNR, contrast, sharpness, saturation, hue, Gamma, etc.) Support steady and transient smart noise reduction, automatic gain control, echo |
|---|
| Audio Function | suppression, time domain equalization algorithm, ambient noise suppression and enhanced vocals to enhance speech quality and offer audio in high quality |
|---|
| Smart Function | Support human body following and face focus Device startup: solid white -> flashing white -> solid white Device working: solid white Device mute: solid red Device shutdown: light off |
|---|
| 通訊方式 | Camera and remote control: 2.4G wireless Camera and remote control: 10 m |
|---|
| 寬動態 WDR | ≥120 dB |
|---|
| USB | 1 USB Type-C interface (for transmitting audio and video), supporting USB 2.0 protocol 1 audio input (line in), 3.5 mm three-segment TRS interface 1 audio output (line out), 3.5 mm three-segment TRS interface |
|---|
| 電源接口 | 12 VDC, Ø 2.1 mm Compatibility Operating System: Windows 7/8/10/11 |
|---|
| System Requirement | Android 8.1 and above version Linux 4.14 and above version macOS 10.12 and above version |
|---|
| 供電 | 12 VDC ± 25%, max. 15.9 W |
|---|
| 工作環境 | -10 °C to 45 °C (14 °F to 113 °F). Humidity 90% or less (non-condensing) |
|---|

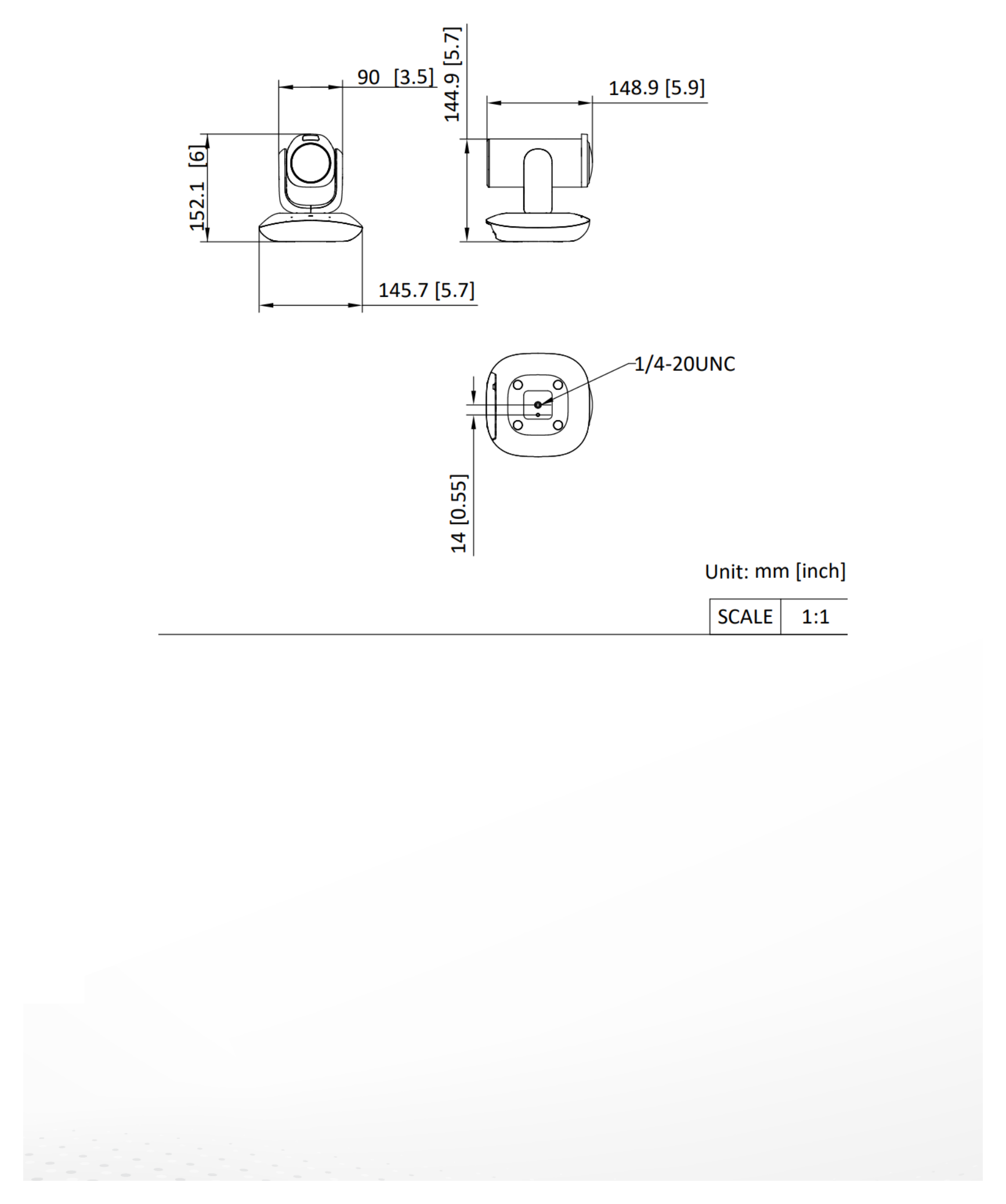

| 尺寸 | 148.9 mm × 145.7 mm × 152.1 mm (5.86" × 5.74" × 5.99" ) |
|---|
| 包裝尺寸 | 308 mm × 216 mm × 187 mm (12.13" × 8.5" × 7.36" ) |
|---|
| 重量 | Approx. 1185 g (2.61 lb.) |
|---|
| 連包裝重量 | Approx. 2705 g (5.96 lb.) Camera (including lens cover) × 1 Remote Control × 1 Power Adapter (1.2 m, with American, British, and European plug adapter) × 1 Power Adapter Extension Cable (3 m) × 1 |
|---|
| 包裝清單 | USB 2.0 Cable (4.5 m) × 1 Bracket × 1 Screws × 1 Battery × 2 Regulatory Compliance and Safety Information × 1 |
|---|
