| DS-VH22-R/HW2 | 4410T×1/32GB×1/2TB 7.2K SATA×2(RAID_1)/SAS_H355/1 GbE×6/800W(Dual power)/R760XS/win Svr 2022 Std/DVD/3 years PSP |
|---|
| DS-VH22-R/HW2E | 4410T×1/32GB×1/2TB 7.2K SATA×2(RAID_1)/SAS_H355/1 GbE×6/800W(Dual power)/R760XS/win Svr 2022 Std/DVD/5 years PSP |
|---|
| DS-VH22-R/HW5E | 4410T×1/32GB×2/2TB 7.2K SATA×2(RAID_1)/SAS_H355/1 GbE×2+10 GbE x 2/800W(Dual power)/R760XS/win Svr 2022 Std/DVD/5 years PSP |
|---|
| DS-VH22-R/HW52E | 4410T×1/32GB×1/960GB SSD×2(RAID_1)/2TB 7.2K SATA×2(RAID_1)/SAS_H355/1 GbE×6/800W(Dual power)/R760XS/win Svr 2022 Std/DVD/5 years PSP |
|---|
| DS-VH22-R/HW22E | 4410T×2/32GB×2/960GB SSD×2(RAID_1)/2TB 7.2K SATA×2(RAID_1)/SAS_H355/1 GbE×6/800W(Dual power)/R760XS/win Svr 2022 Std/DVD/5 years PSP |
|---|
| DS-VH22-R/HW3E | 4410T×2/32GB×2/960GB SSD×2(RAID_1)/2TB 7.2K SATA×2(RAID_1)/H355/1 GbE×2+10 GbE x 2/800W(Dual power)/R760XS/win Svr 2022 Std/DVD/5 years PSP |
|---|
| CPU | • 4410T (2.7 GHz-4.0 GHz, 26.25 MB Cache， 10 Cores, 20 Threads ) • Support 16GB/32GB/64GB DDR5 RDIMM, 4800MT/s ECC |
|---|
| Memory | • Slots: 16 x DDR5 DIMM slots, supports RDIMM 16x64 GB MAX (1 CPU Configuration with 8 slots available，2 CPU configuration with 16 slots available.) • 2TB/ 4TB/ 8TB/ 12TB/ 16TB/22TB 7.2K SATA Hot-plug HDD • 480GB/ 960GB/ 1.92TB/ 3.84TB SATA Hot-plug SSD • Slots: 8 x 3.5-inch SAS/SATA (HDD/SSD) slots, supports HDD 8 x 22TB max (Empty slots do not include hard drive bays by default) • PERC H355 adap |
|---|
| 操作系統 | • win Svr 2022 Std (Optional) • 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4) • 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4) |
|---|
| Notes | • Support flexible customization, including CPU, memory, hard dive, OS, etc •iDRAC9 •iDRAC Direct •iDRAC RESTful API with Redfish •iDRAC Service Manual •OpenManage Enterprise •OpenManage Power Manager plugin •OpenManage Service plugin •OpenManage Update Manager plugin •CloudIQ for PowerEdge plug in •OpenManage Enterprise Integration for VMware vCenter •OpenManage Integration for Microsoft System C |
|---|
| 安全 | •Secure Erase •Secured-core server •Silicon Root of Trust •System Lockdown (requires iDRAC9 Enterprise or Datacenter) •TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ • 1 x iDRAC Direct (Micro-AB USB) port |
|---|
| Front Ports | • 1 x USB 2.0 • 1 x VGA • 1 GbE×6/ 1 GbE×2+10 GbE x 2/Customization • 1 x Dedicated iDRAC Ethernet port |
|---|
| Rear Ports | • 1 x USB 2.0 • 1 x USB 3.0 • 1 x VGA |
|---|
| 淨重 | 28.6 kg (63.0 lb) |
|---|
| 毛重 | 46.4 kg (102.29 lb) |
|---|

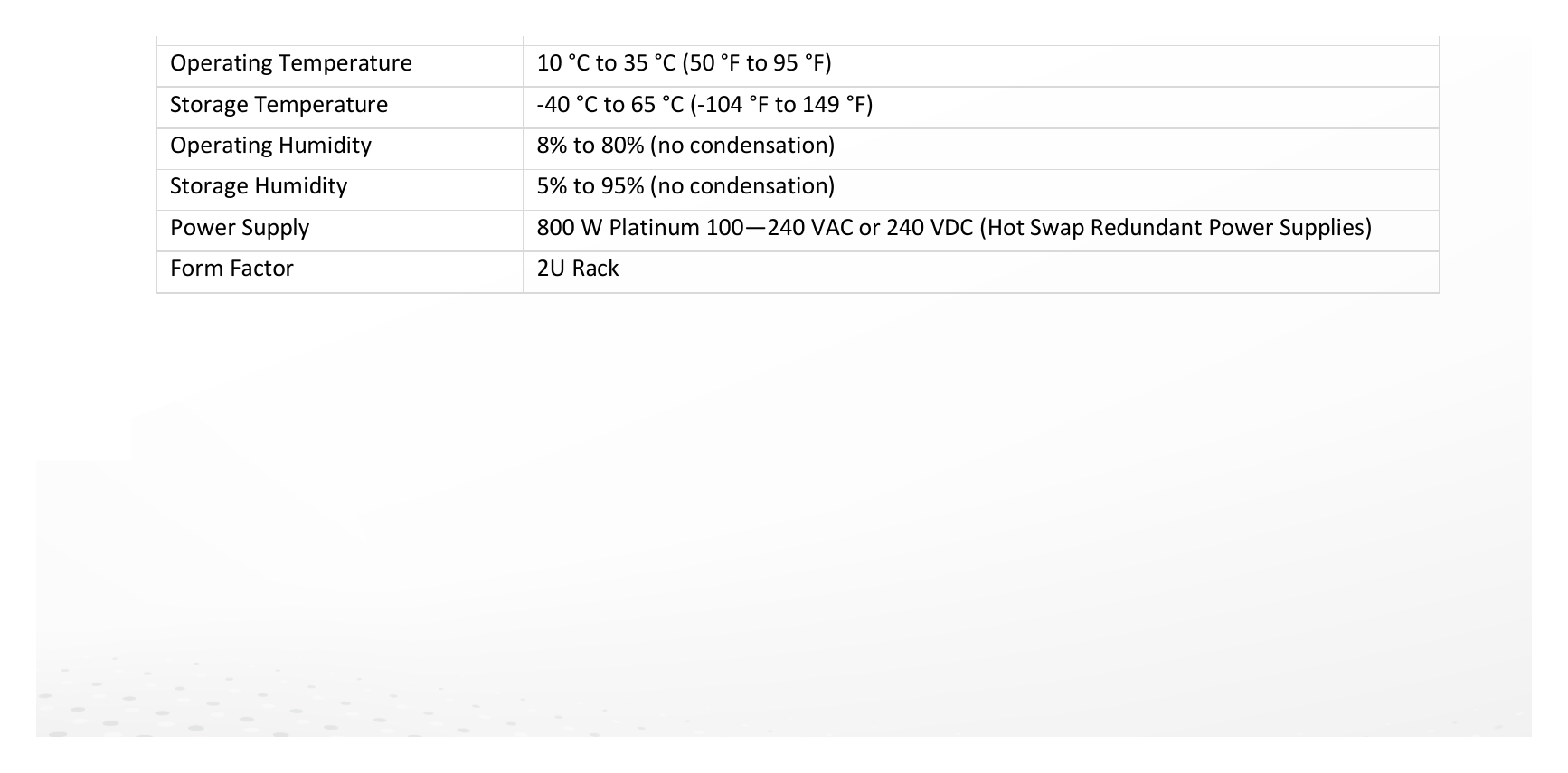

| 尺寸 | 482.0 mm × 86.8 mm × 721.62 mm (18.97'' × 3.41'' × 28.4'') |
|---|
| 工作溫度 | 10 °C to 35 °C (50 °F to 95 °F) |
|---|
| 儲存溫度 | -40 °C to 65 °C (-104 °F to 149 °F) |
|---|
| 工作濕度 | 8% to 80% (no condensation) |
|---|
| Storage Humidity | 5% to 95% (no condensation) |
|---|
| 供電 | 800 W Platinum 100—240 VAC or 240 VDC (Hot Swap Redundant Power Supplies) |
|---|
| Form Factor | 2U Rack |
|---|
