| 最低照度 | B/W: 0.0005 Lux @ (F1.5, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 1/25 s to 1/12500 s Fixed focal lens, 4 mm（Camera ）, Varifocal lens, motorized lens, 5.9 to 135.7 mm（PTZ Camera ） 4 mm, horizontal FOV 81°, vertical FOV 44°, diagonal FOV 94°, 5.9 to 135.7 mm, horizontal FOV 59° to 3°, vertical FOV 35° to 2°, diagonal FOV 66° to 4 mm: F1.6 5.9 to 135.7 mm: F1.6 to F4.1 |
|---|
| Built-in Supplement Light Type | IR light |
|---|
| 紅外波長 | 850 nm |
|---|
| 主碼流 | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) |
|---|
| 子碼流 | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 20 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) |
|---|
| 第三碼流 | 50 Hz: 25 fps (1280 × 720, 704 × 576) 60 Hz: 20 fps (1280 × 720, 704 × 576) Main stream: H.265/H.264/MJPEG, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 32 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile |
|---|
| 水平速度 | Configurable, 1°~128°/s, preset speed: 128°/s |
|---|
| Pan Range | 360° infinite rotation |
|---|
| Preset | 256 preset positions |
|---|
| 垂直速度 | Configurable, 1°~62°/s, preset speed: 70°/s |
|---|
| Tilt Range | -90°~90° |
|---|
| 網絡協議 | TCP/IP,HTTP,DHCP,DNS,RTP,RTSP,NTP,HTTPS,SNMP,802.1X |
|---|
| 圖像參數切換 | Supported |
|---|
| 圖像設定 | Saturation,Brightness,Contrast,Sharpness,Gain,White balance,AGC |
|---|
| 日夜模式 | Day,Night,Auto,Schedule 100dB |
|---|
| 信噪比 SNR | ≥ 60 dB |
|---|
| 影像增強 | BLC,HLC,3D DNR |
|---|
| 機身儲存 | Built-in memory card slot, supporting TF card, up to 1TB |
|---|
| Aviation Plug | Supported 1.Road Diseases Detection (Recommended for sunny daytime use only): Pothole;Waterlogging;Alligator Cracking;Patching;Pitted Skin;Transverse Cracking;Longitudinal Cracking;Manhole Frame Difference. 2.Smart Mode (Recommended for daytime use only): Support license plate capture and recognition, Without helmet detection ，Manned Non-Motor Vehicle. 3.Vehicle Evidence Capture (Recommended for d |
|---|
| Accuracy (Under recommended | Capture rate > 90%, |
|---|
| installation and lighting | LPR accuracy > 95%, |
|---|
| conditions) | Mistaken capture rate < 10% Supported |
|---|
| 人臉抓拍 | Supported |
|---|
| Face Comparison | Supported |
|---|
| 操作系統 | Linux DC 8 V to 36 V, 6.25 A, max. 50 W Aluminum alloy |
|---|

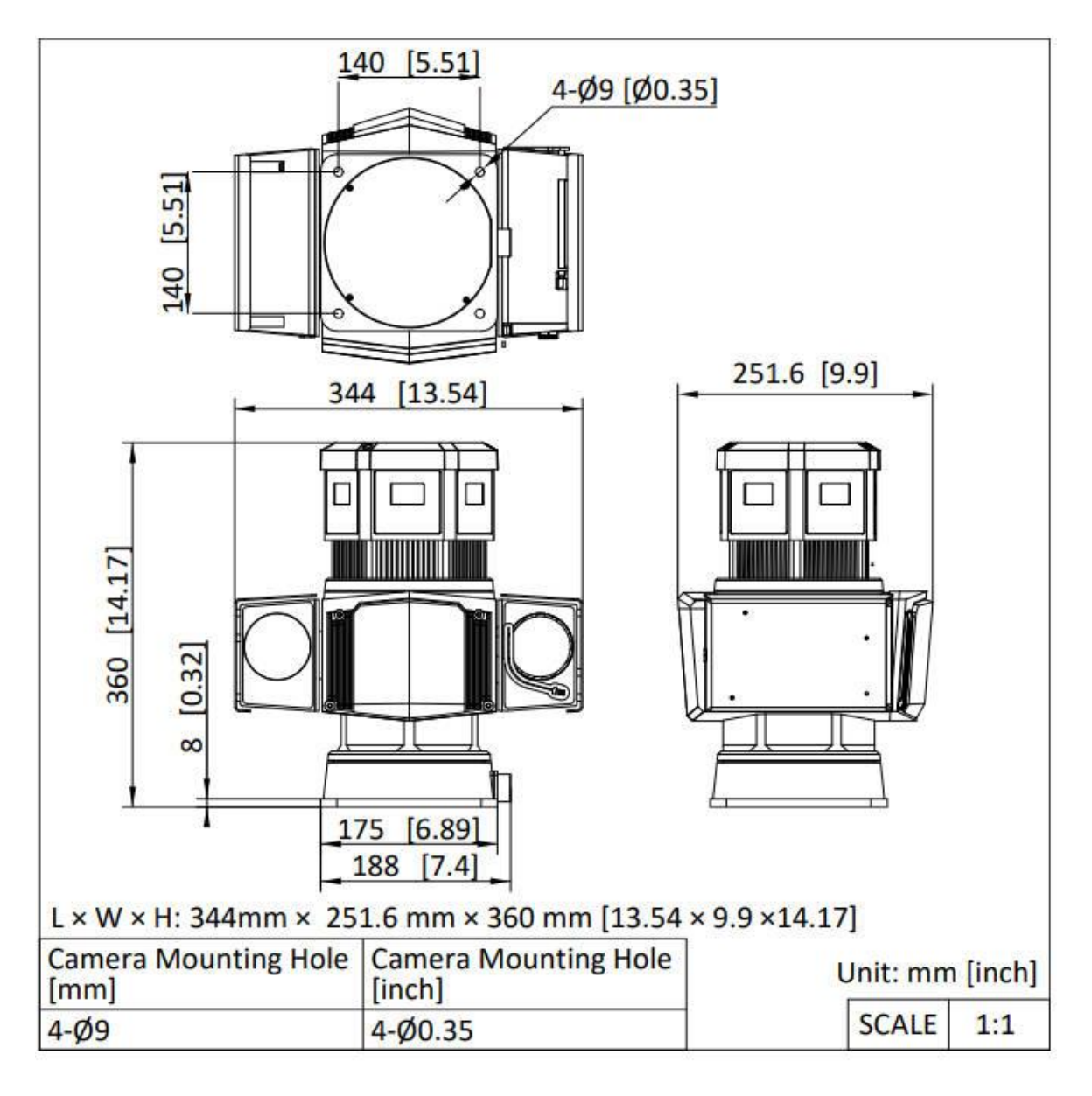

| 尺寸 | 344 mm × 251.6 mm × 360 mm (13.54" × 9.9" × 14.17") (L × W × H) |
|---|
| 包裝尺寸 | 415 mm × 317 mm × 445 mm (16.34" × 12.48" × 17.52") (L × W × H) |
|---|
| 重量 | Approx. 11.3 kg (24.9 lb.) |
|---|
| 連包裝重量 | Approx. 14.6 kg (32.2 lb.) |
|---|
| 工作環境 | -35 °C to 65 °C (-31 °F to 149 °F). Humidity 95% or less (non-condensing) |
|---|
| Storage Condition | -35 °C to 65 °C (-31 °F to 149 °F). Humidity 95% or less (non-condensing) |
|---|
| EMC | CE-EMC: EN 50130-4:2011+A1:2014;EN 55032:2015+A11:2020+A1:2020;EN 61000-3-3:2013+A1:2019+A2:2021;EN IEC 61000-3-2:2019+A1:2021+A2:2024 CB: IEC 62368-1: 2014,CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017, CE-LVD:EN IEC 62368-1:2020+A11:2020 |
|---|
