| 影像感測器 | 2 sensors, 1/1.8" Progressive Scan CMOS |
|---|
| 最大解像度 | 2688 × 1520 Color: 0.0005 Lux @ (F1.2, AGC ON), |
|---|
| 最低照度 | B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|---|
| 快門速度 | 70 to 40000 μs |
|---|
| 日夜切換 | IR cut filter Channel 1: 8 to 32 mm, horizontal FOV 42.6° to 15.1°, vertical FOV 22.9° to 8.5°, diagonal FOV 48.8° to 17.3°, Channel 2: 10 to 50 mm, horizontal FOV 33.4° to 8.8°, vertical FOV 18.7° to 4.9°, diagonal FOV 38.4° to 10.1° |
|---|
| 對焦 | Auto |
|---|
| 光圈類型 | Auto-iris: DC drive 8-32mm: F1.7 10-50mm: F1.7-2.0 |
|---|
| Built-in Supplement Light Type | IR light |
|---|
| Supplement Light Number | 7 |
|---|
| Built-in Supplement Light Range | Up to 50 m |
|---|
| 紅外波長 | 850 nm 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 276, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 576, 352 × 288) 50 Hz: 25 fps (1280 × 720, 704 × 576, 352 × 288) 60 Hz: 30 fps (1280 × 720, 704 × 576, 352 × 288) Main stream: H.265/H. |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline Profile,Main Profile,High Profile |
|---|
| H.265 類型 | Main Profile TCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,I GMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP |
|---|
| 同時取流 | Up to 10 channels |
|---|
| API | ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) |
|---|
| 用戶管理 | Up to 16 users,3 user levels: administrator, operator, and user (EAP-MD5; EAP-LEAP; EAP-PEAPv),Watermark,IP address filter,Basic and digest |
|---|
| 安全 | authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2; 1.3,Host authentication (MAC address) Local storage,CVR,NVR,ANR, Micro SD/TF card (1TB) |
|---|
| 瀏覽器 | Chrome V61+, IE9 to IE11, Firefox V41+, Edge Saturation,Brightness,Contrast,Sharpness,Gain,White balance,AGC,Adjustable by client software or web browser. |
|---|
| 日夜模式 | Schedule, Auto, Manual |
|---|
| 寬動態 WDR | 140 dB |
|---|
| 影像增強 | BLC,3D DNR |
|---|
| 網絡接口 | 1 RJ45 10M/100M/1000M self-adaptive Ethernet port(s) |
|---|
| 機身儲存 | Built-in memory card slot, supporting microSD/SDHC/SDXC card card, up to 1 TB |
|---|
| 警報 | 1 input(s),1 output(s) |
|---|
| RS-485 | 1 RS-485 |
|---|
| Coverage | Up to 3 lane(s) Smart mode: License plate recognition,Vehicle type classification,Vehicle color recognition,Vehicle Make recognition,Motorcycle helmet detection,Manned motorcycle detection Traffic flow detection: average speed, traffic flow, queuing length, and traffic status Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving Middle East: T |
|---|
| No License Plate Detection | Supported |
|---|
| Motorcycle LPR | Supported |
|---|
| Vehicle Type | Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only. 212 Manufacturers: AC SCHNITZER, AITO, APOLLO, Ashok Leyland, Audi, Aston Martin, Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori , Buick, Bently, Brabus, Buga |
|---|
| Vehicle Manufacturer | Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, |
|---|
| Capture Speed Range | 5 to 120 km/h Channel 2 supported Detects up to 40 faces simultaneously, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures |
|---|
| 供電 | DC 36 V ±20%, 1.2 A, max. 42 W, two-core terminal block |
|---|
| 材質 | ADC+PC |
|---|

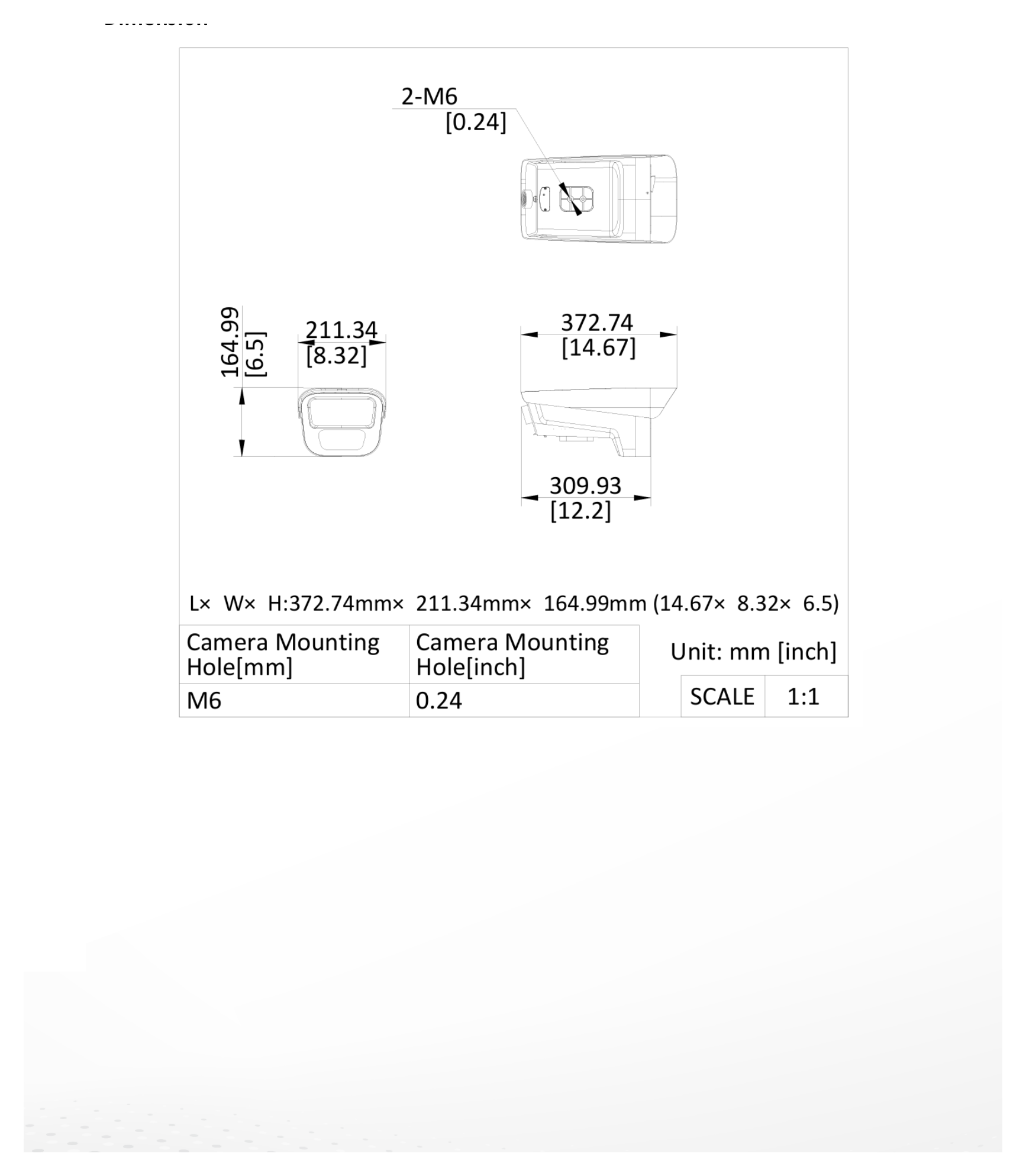

| 尺寸 | 373 mm × 212 mm × 165 mm (14.67" × 8.32" × 6.5") (L × W × H) |
|---|
| 包裝尺寸 | 505 mm × 422 mm × 360 mm (19.88" × 16.61" × 14.17") (L × W × H) |
|---|
| 重量 | Approx. 2.9 kg (6.40 lb.) |
|---|
| 連包裝重量 | Approx. 6.4 kg (14.1 lb.) |
|---|
| 工作環境 | -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
|---|
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing) |
|---|
| 一般功能 | One-key reset,Three streams,Privacy mask,Heartbeat,Password protection 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Language Spanish CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000 -3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
|---|
| Safety | CB: IEC 62368-1: 2018,CE-LVD: EN 62368-1: 2014+A11: 2017 |
|---|
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 |
|---|
| 防護等級 | IK10: IEC 62262:2002,IP67: IEC 60529-2013 |
|---|
