HIKVISION iDS-TCV500-HI CCTV攝影機安裝・保養

Name: HIKVISION iDS-TCV500-HI 5MP IR Checkpoint Camera
Brand: Hikvision
SKU: iDS-TCV500-HI

產品簡介

Hikvision iDS-TCV500-HI 為5MP IR Checkpoint Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 iDS-TCV500-HI 香港價格連安裝報價。

影像感測器：5 MP (2/3'' GMOS)
最大解像度：2464 × 2056 Color: 0.001 Lux @ (F1.4, AGC ON),
最低照度：B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR
快門速度：8 us-20000 us
日夜切換：IR cut filter iDS-TCV500-HI: Varifocal lens, motorized lens,

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝CAM、裝CCTV、裝監控工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

iDS-TCV500-HI Hikvision 5MP IR Checkpoint Camera 產品圖片

詳細規格

影像感測器	5 MP (2/3'' GMOS)
最大解像度	2464 × 2056 Color: 0.001 Lux @ (F1.4, AGC ON),
最低照度	B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR
快門速度	8 us-20000 us
日夜切換	IR cut filter iDS-TCV500-HI: Varifocal lens, motorized lens, 11 to 40 mm iDS-TCV500-HI/1550/H1(AF)(海外标配): Varifocal lens, motorized lens, 15 to 50 mm
鏡頭類型	iDS-TCV500-HI/1140/H1(AF)(24V)(海外标配),iDS-TCV500-HI/1140/H1(AF)(海外中，性),iDS-TCV500-HI/1140/H1(AF)(海外标配),iDS-TCV500-HI/1140/H1(AF)(24V)( 海外中，性),iDS-TCV500-HI/1140(AF)(海外标配): Varifocal lens, motorized lens, 11 to 40 mm iDS-TCV500-HI:11 to 40 mm, horizontal FOV 36.8° to 13.9°, vertical FOV 30.7° to 11.6°, diagonal FOV 48.0° to 18.2° iDS-TCV500-HI/1140/H1(AF)(24V)(海外标配),iDS-TCV500-HI/1140/H1(AF)(海外中，性),
對焦	Auto iDS-TCV500-HI:F1.6 iDS-TCV500-HI/1140/H1(AF)(24V)(海外标配),iDS-TCV500-HI/1140/H1(AF)(海外中
光圈	性),iDS-TCV500-HI/1140/H1(AF)(海外标配),iDS-TCV500-HI/1140/H1(AF)(24V)( 海外中，性),iDS-TCV500-HI/1140(AF)(海外标配):F1.6 iDS-TCV500-HI/1550/H1(AF)(海外标配):F1.4-C
Built-in Supplement Light Type	IR light
Built-in Supplement Light Range	Up to 30 m iDS-TCV500-HI:3 iDS-TCV500-HI/1140/H1(AF)(24V)(海外标配),iDS-TCV500-HI/1140/H1(AF)(海外中，性),iDS-TCV500-HI/1140/H1(AF)(海外标配):3 iDS-TCV500-HI/1140(AF)(海外标配):4
紅外波長	850 nm
External Supplement Light	Strobe and Flash light 50 Hz: 50 fps (2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576) 60 Hz: 30 fps(2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576) 50 Hz: 50 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576) 60 Hz: 30 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576)
第三碼流	50 Hz: 50 fps (2048 × 1536, 1920 × 1080, 704 × 576) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080, 704 × 576 ) H.264 and H.265 encoding Main stream: H.265/H.264/MJPEG Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
視頻碼率	32 Kbps to 16 Mbps
H.264 類型	Baseline profile/Main profile/High profile
H.265 類型	Main profile TCP/IP, ICMP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, SNMP, 802.1X, IPv4/IPv6, UDP, ISUP, ARP, IGMP, SMTP
同時取流	Up to 6 channels
API	ISAPI, SDK, ISUP, ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) Up to 16 users 3 user levels: administrator, operator and user Password protection, Complicated password, HTTPS encryption, Control timeout settings, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface
網絡儲存	MicroSD/TF card (512 GB), local storage and CVR, NVR, ANR
客戶端	Hik-Central Master, Hik-Central Pro, HikCentral Master Lite
瀏覽器	Chrome V61+, IE9 to IE11, Firefox V40+, Edge Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
日夜模式	Auto, Schedule, Manual
信噪比 SNR	60 dB
影像增強	BLC, 3D DNR
網絡接口	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces
機身儲存	Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB
警報	2 input interfaces (T1, SYNC), 7 output interfaces
RS-485	3 RS-485 interfaces (half duplex, HIKVISION)
RS-232	1 RS-232 interface
USB	1 USB 2.0 interface HDD Error, Network disconnected, IP address conflicted, Traffic light detector exception
Coverage	Up to 2 lane(s)
Trigger Mode	External I/O trigger/Radar trigger/Video trigger License plate recognition, Vehicle type classification, color identification, no-plate vehicle capture, moving direction detection Mid-East: United Arab Emirates (Abu Dhabi, Fuchaiha, Dubai, Cape Haima, Ozhman, Sharjah, Umgavan), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Cote d'Ivoire,
No License Plate Detection	Supported Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2%
Motorcycle LPR	Supported Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only. Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Truck
Vehicle Manufacturer	Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani,
Vehicle Type	Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
License Plate Color Recognition	Customized to support
U-Turn	Supported(only E-Police mode)
Red Light Running	Supported(only E-Police mode)
Failing to Yield for Pedestrians	Supported(only E-Police mode)
Stop Vehicle on Intersection	Supported(only E-Police mode)
Not Following Directional Sign	Supported(only E-Police mode)
Yellow Box Junction Violation	Supported (only E-Police mode)
Driving on Lane Line Detection	Supported Supported
Seatbelt Detection	Supported (with flash supplement light)
Phone Call Detection	Supported (with flash supplement light)
Vehicle Window Film	Supported (with flash supplement light)
Wrong-Way Driving Detection	Supported
Emergency Lane Occupation	Supported (truck forbidden lane, emergency lane, urban bus lane)
Prohibition Mark Violation	Supported
Speeding	Supported (with Radar)
Low-Speed	Supported (with Radar)
Manned Non-Motor Vehicle	Supported
Without Helmet	Supported
Capture Speed Range	10 to 320 km/h
操作系統	Linux iDS-TCV500-HI: AC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block, DC 24 model: DC 24 V, 2.5 A, max. 35 W, 2-core terminal block AC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block, DC 24 model: DC 24 V, 2.5 A, max. 35 W, 2-core terminal block
材質	Aluminum alloy iDS-TCV500-HI:667 mm × 357 mm × 224 mm (26.26" × 14.06" × 8.82") (L × W × H) iDS-TCV500-HI/1140(AF)(海外标配):833 mm × 275 mm × 325 mm (32.80" × 10.83" × 12.80") (L × W × H) iDS-TCV500-HI/1140/H1(AF)(24V)(海外标配),iDS-TCV500-HI/1140/H1(AF)(海外中，性),iDS-TCV500-HI/1140/H1(AF)(海外标配):667 mm × 357 mm × 224 mm (26.26" × 14.06" × 8.82") (L × W × H) iDS-TCV500-HI:636 mm × 174 mm × 146 mm (25.04" × 6

* 規格以原廠最新 Datasheet 為準。

下載完整PDF規格書 →

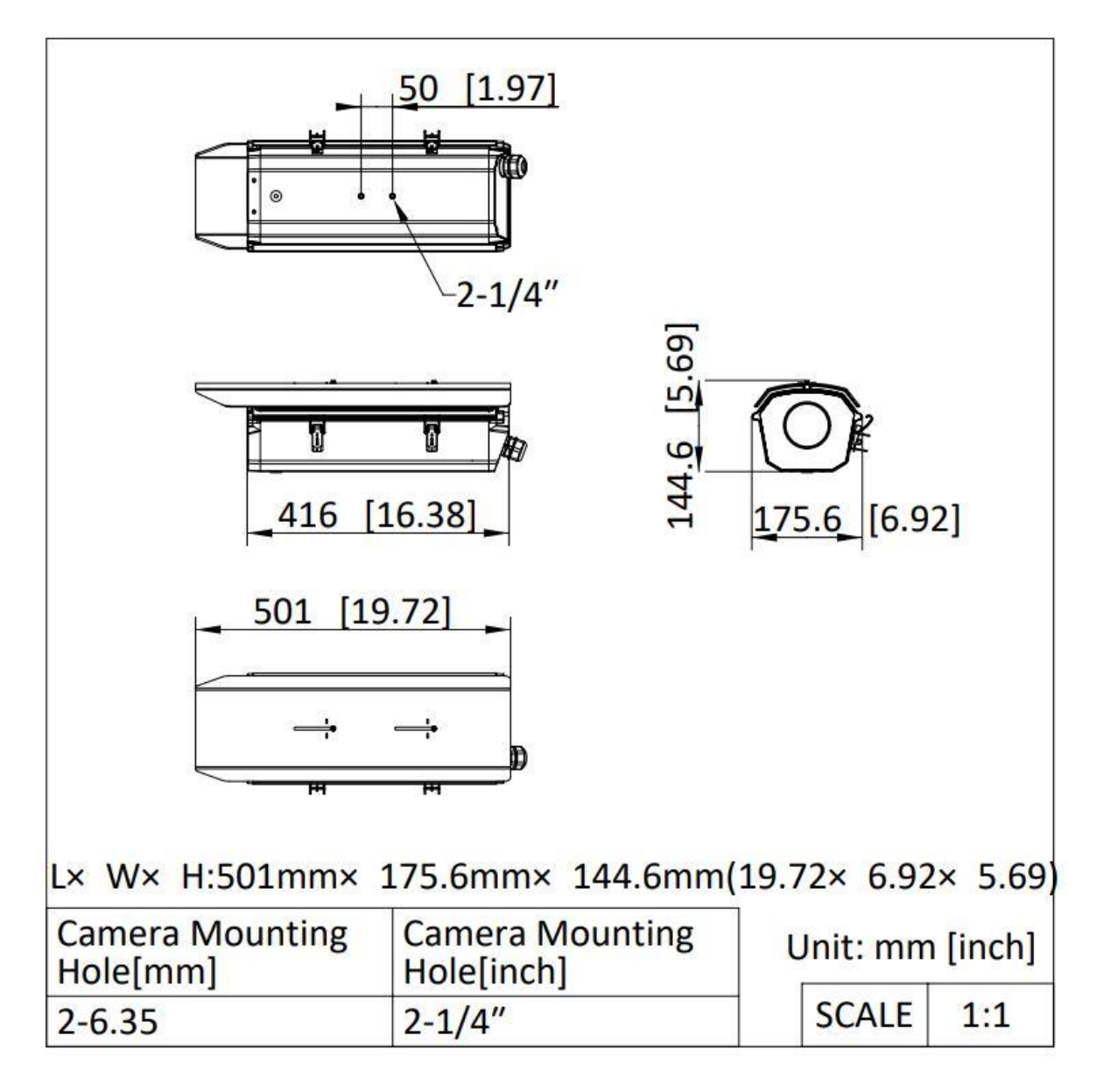

外形尺寸

詳見圖示｜Unit: mm

CCTV 監控安裝工程服務

HKEZIT 專營裝CAM、裝CCTV、裝監控工程，iDS-TCV500-HI 由我們供貨、安裝、調試到使用教學一站式完成。無論裝CAM、裝CCTV或裝監控，均由自家工程團隊上門施工，品質有保證。

裝CAM 裝CCTV 裝監控

CCTV 監控適合邊類專業客戶

iDS-TCV500-HI Hikvision 5MP IR Checkpoint Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。

測量師行／則師樓

現場勘察資料同客戶物業圖則屬機密，辦公室網絡同門禁保安係基本要求。

WhatsApp 查詢 →

婦產科診所

診症室及超聲波室私隱要求極高，出入口記錄配合門禁分級管理。

WhatsApp 查詢 →

建築工程顧問公司

圖則模型檔案室保密，配合工地現場監控延伸管理，項目資料防外洩。

WhatsApp 查詢 →

珠寶鑑定／拍賣行

高值品鑑定過程近攝存證，配合保險公司要求，防止調換或盜取。

WhatsApp 查詢 →

律師事務所

客戶機密文件與會議記錄保安需求高，門禁分級、CCTV存證、通話錄音缺一不可。

WhatsApp 查詢 →

私人銀行／財富管理

貴賓客戶室高保安等級佈點，配合監管合規存證，出入口身份記錄嚴謹。

WhatsApp 查詢 →

常見問題

iDS-TCV500-HI 香港哪裡有代理？

HKEZIT 提供原廠行貨連保養，iDS-TCV500-HI 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。

此型號如何供電及駁線？

支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。

錄影可以儲存多久、如何遠程監看？

儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。

iDS-TCV500-HI 定 THC-B127-LTS 邊個好？

兩者主要規格分別：影像感測器方面，iDS-TCV500-HI 係 5 MP (2/3'' GMOS)，THC-B127-LTS 係 2 MP CMOS；影像增強方面，iDS-TCV500-HI 係 BLC, 3D DNR，THC-B127-LTS 係 HLC, Global, HLS。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 THC-B127-LTS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
