Hikvision iDS-TCV507-HIR 為5 MP Radar-video Fusion Checkpoint Camera，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 iDS-TCV507-HIR 香港價格連安裝報價。
| 影像感測器 | 5 MP ( 2/3'' GMOS) |
|---|---|
| 最大解像度 | 2464 × 2056 Color: 0.001 Lux @ (F1.4, AGC ON), |
| 最低照度 | B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR |
| 快門速度 | 8 us-20000 us |
| 日夜切換 | IR cut filter |
| 鏡頭類型 | Varifocal lens, motorized lens, 11 to 40 mm 11 to 40 mm, horizontal FOV 35.8° to 13.9°, vertical FOV 30.7° to 11.6°, diagonal FOV 48.0° to 18.1° |
| 對焦 | Auto |
| 光圈 | F1.8-1.9 |
| Built-in Supplement Light Type | IR light |
| Light Bead | 16 |
| Built-in Supplement Light Range | Up to 40 m |
| 紅外波長 | 850 nm |
| External Supplement Light | Strobe and Flash light |
| Working Frequency | 60 to 61 GHz |
| Modulation Waveform | FMCW |
| Antenna Beam Width | 50° × 18° |
| Detection Distance | 150 m |
| Speed Range | 10 to 320 km/h |
| Speed Measuring Accuracy | ± 2 km/h |
| Max. Detectable Targets | Up to 128 |
| Coverage Lanes | Up to 2 lane(s) |
| Trigger Mode | Approaching direction, leaving direction, and both |
| Capture Rate | ≥ 98% 50 Hz: 50 fps (2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576) 60 Hz: 30 fps(2448 × 2048, 2464 × 2056, 2048 × 1536, 1920 × 1080, 704 × 576) 50 Hz: 50 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576) 60 Hz: 30 fps (2448 × 2048, 2048 × 1536, 1920 × 1080P, 704 × 576) 50 Hz: 50 fps (2048 × 1536, 1920 × 1080, 704 × 576) 60 Hz: 30 fps (2048 × 1536, 1920 × 1080, 704 × 576) Mai |
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| 視頻碼率 | 32 Kbps to 16 Mbps |
| H.264 類型 | Baseline profile/Main profile/High profile |
| H.265 類型 | Main profile TCP/IP, ICMP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, SNMP, 802.1X, IPv4/IPv6, UDP, ISUP, ARP, IGMP, STMP |
| 同時取流 | Up to 6 channels |
| API | ISAPI, SDK, ISUP, ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) Up to 16 users 3 user levels: administrator, operator and user Password protection, Complicated password, HTTPS encryption, Control timeout settings, 802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5), Basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface |
| 網絡儲存 | MicroSD/TF card (512 GB), local storage and CVR, NVR, ANR |
| 客戶端 | Hik-Central Master, Hik-Central Pro, Hik-Central Master Lite |
| 瀏覽器 | Chrome V61+, IE9 to IE11, Firefox V40+, Edge Saturation, brightness,contrast, sharpness, AGC, and white balance are adjustable by client software or web browser. |
| 日夜模式 | Auto,Schedule,Manual |
| 信噪比 SNR | 60 dB |
| 影像增強 | BLC, 3D DNR |
| Satellite Positioning | Optional |
| 網絡接口 | 1 RJ45 10M/100M/1000M self-adaptive Ethernet interface |
| 機身儲存 | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
| 警報 | 6 output interfaces |
| RS-485 | 1 RS-485 interface HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception |
| Coverage | Up to 2 lane(s) License plate recognition, Vehicle type classification, Vehicle color recognition, No-plate vehicle capture, Moving direction detection The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain Africa: Nigeria, Kenya, Ivory Coast , South Africa, Ta |
| LPR Countries/Regions | America: The United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, G |
| Vehicle Type | Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
| No License Plate Detection | Supported |
| Motorcycle LPR | Supported Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only. Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Truck |
| Vehicle Manufacturer | Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, |
| License Plate Color Recognition | Customized to support |
| U-Turn | Supported(only E-Police mode) |
| Red Light Running | Supported(only E-Police mode) |
| Failing to Yield for Pedestrians | Supported(only E-Police mode) |
| Stop Vehicle on Intersection | Supported(only E-Police mode) |
| Not Following Directional Sign | Supported(only E-Police mode) |
| Yellow Box Junction Violation | Supported (only E-Police mode) |
| Driving on Lane Line Detection | Supported |
| Lane Change Detection | Supported |
| Seatbelt Detection | Supported (with flash supplement light) |
| Phone Call Detection | Supported (with flash supplement light) |
| Vehicle Window Film | Supported (with flash supplement light) |
| Wrong-Way Driving Detection | Supported |
| Emergency Lane Occupation | Supported (truck forbidden lane, emergency lane, urban bus lane) |
| Prohibition Mark Violation | Supported |
| Speeding | Supported (with Radar) |
| Low-Speed | Supported (with Radar) |
| Without Helmet | Supported |
| Manned Non-Motor Vehicle | Supported |
| Capture Speed Range | 10 to 320 km/h |
| 操作系統 | Linux |
| 供電 | DC 36 V ± 20%, 2 A, max. 75 W, two-core terminal block |
| 材質 | Aluminum alloy |
| 包裝尺寸 | 535 mm × 500 mm × 360 mm (21.06" × 19.68" × 14.17") (L × W × H) |
| 尺寸 | 457 mm × 396 mm × 139.15 mm (17.99" × 15.59" × 5.48") (L × W × H) |
| 連包裝重量 | Approx. 13.72 kg (30.2 lb.) |
| 重量 | Approx. 8.13 kg (17.9 lb.) |
| 工作環境 | -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing) |
| Storage Condition | -30 °C to 70 °C (-22 °F to 158 °F). Humidity: 5% to 95% (non-condensing) |
| 一般功能 | One-key reset, Three streams, Heartbeat, Password protection, Pixel counter |
| Heater | Optional 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Language Spanish CE-RED:EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 301489-17 V3.2.4, EN 301489-52 V1.2.1, EN 300440 V2.1.1, EN IEC 62311:2020 CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000 -3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 |
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 CE-LVD: EN 62368-1: 2014+A11: 2017,CB: IEC 62368-1: 2018, CE-LVD:EN IEC 62368-1:2020+A11:2020 |
| 防護等級 | IK10: IEC 62262:2002,IP66: IEC 60529-2013 |
* 規格以原廠最新 Datasheet 為準。
下載完整PDF規格書 →

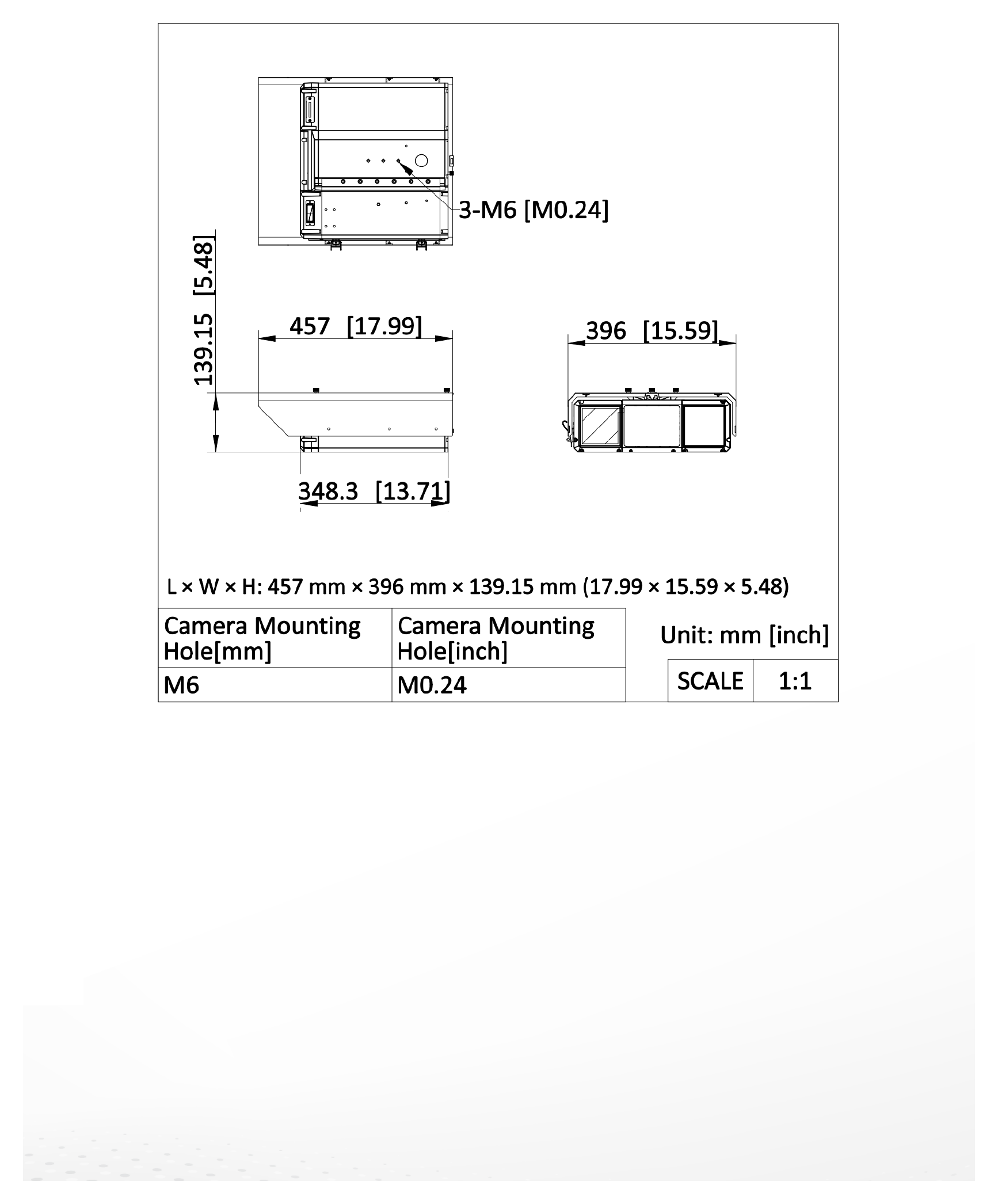

457 mm × 396 mm × 139.15 mm (17.99" × 15.59" × 5.48") (L × W × H)｜重量 Approx. 8.13 kg (17.9 lb.)｜Unit: mm
iDS-TCV507-HIR Hikvision 5 MP Radar-video Fusion Checkpoint Camera亦適合以下專業服務機構使用，保安同合規要求同一般商鋪唔一樣，歡迎查詢度身方案。
HKEZIT 提供原廠行貨連保養，iDS-TCV507-HIR 原廠行貨連保養，提供上門評估、安裝、調試及使用教學一站式服務，全港 32 區均有服務。
支援 PoE 供電時一條網線同時傳輸數據與電力，無需另行鋪設電源線；詳細供電規格請參閱上方規格表，安裝時我們會按現場環境設計走線。
儲存時間取決於解像度、碼率及硬碟容量，配合 H.265+ 壓縮可大幅延長；透過 Hik-Connect App 可隨時遠程實時監看及回放，無需固定 IP。
兩者主要規格分別：影像感測器方面，iDS-TCV507-HIR 係 5 MP ( 2/3'' GMOS)，THC-B127-LTS 係 2 MP CMOS；日夜切換方面，iDS-TCV507-HIR 係 IR cut filter，THC-B127-LTS 係 ICR；影像增強方面，iDS-TCV507-HIR 係 BLC, 3D DNR，THC-B127-LTS 係 HLC, Global, HLS。實際邊個型號更適合，需視乎現場環境同需求而定，可先比較 THC-B127-LTS 詳細規格，或直接聯絡我們免費現場評估，由工程師建議最合適方案。
HKEZIT 提供 iDS-TCV507-HIR 原廠行貨連保養，安裝後如有故障可直接聯絡我們安排上門維修，毋須自行聯絡原廠。詳情請參閱CCTV 監控安裝工程頁面或聯絡我們查詢保養範圍。
