| 最大解像度 | 4096 × 2160 Color: 0.001 Lux @ (F1.4, AGC ON), |
|---|
| 最低照度 | B/W: 0.0005 Lux @ (F1.4, AGC ON), 0 Lux with IR 7 us to 20000 us |
|---|
| 日夜切換 | IR cut filter Fixed focal lens, 25 mm, Varifocal lens, motorized lens, 11 to 40 mm 25 mm, horizontal FOV 31.6°, vertical FOV 17.0°, diagonal FOV 35.4°, 11 to 40 mm, horizontal FOV 61.8° to 23.5°, vertical FOV 32.4° to 12.2°, diagonal FOV 70.0° to 26.8° |
|---|
| 對焦 | Auto,Manual iDS-TCV900-HI/Y/1140/H1(AF)(海外标配),iDS-TCV900-HI/1140/H1(AF)(海外中，性),iDS-TCV900-HI/1140/H1(AF)(海外标，配),iDS-TCV900-HI/1140/H1(AF)(MD),iDS-TCV900-HI/1140/H1(AF)(24V)( 欧洲标，配),iDS-TCV900-HI/1140(AF)(海外标配),iDS-TCV900-HI/Y/1140(AF)(海外标配):F1.6 iDS-TCV900-HI/25/H1(海外标配),iDS-TCV900-HI/25/H1(24V)(海外标，配),iDS-TCV900-HI/25(海外标配):F1.6 to F20 |
|---|
| Built-in Supplement Light Type | IR light iDS-TCV900-HI:3 iDS-TCV900-HI/Y/1140/H1(AF)(海外标配),iDS-TCV900-HI/25/H1(海外标 |
|---|
| Light Bead | 配),iDS-TCV900-HI/25/H1(24V)(海外标配),iDS-TCV900-HI/1140/H1(AF)(海外标配):3 iDS-TCV900-HI/1140(AF)(海外标配),iDS-TCV900-HI/25(海外标，配),iDS-TCV900-HI/Y/1140(AF)(海外标配):4 |
|---|
| Built-in Supplement Light Range | Up to 30 m |
|---|
| 紅外波長 | 850 nm |
|---|
| External Supplement Light | Strobe and flash light 50 Hz: 50 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 |
|---|
| 主碼流 | × 1200, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (4096 × 2160, 3840 × 2160, 3392 × 2008, 3072 × 1728, 2688 × 1520, 1920 × 1200, 1920 × 1080, 1280 × 720) |
|---|
| 子碼流 | 50 Hz: 50 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3392 × 2008, 2688 × 1520, 1920 × 1080, 1280 × 720) |
|---|
| 第三碼流 | 50 Hz: 50 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720) Main stream: H.265/H.264/MJPEG, |
|---|
| 視頻壓縮 | Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
|---|
| 視頻碼率 | 32 Kbps to 16 Mbps |
|---|
| H.264 類型 | Baseline profile/Main profile/High profile |
|---|
| H.265 類型 | Main Profile iDS-TCV900-HI:TCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP,RTCP,NTP,SNMP,802.1X,IP v4/IPv6,UDP,ISUP,ARP,IGMP,SMTP TCP/IP,ICMP,HTTP,HTTPS,FTP,DNS,RTP,RTSP ,RTCP,NTP,SNMP,802.1X,IPv4/IPv6,UDP,IS UP,ARP,IGMP,SMTP |
|---|
| 同時取流 | Up to 10 channels |
|---|
| API | ISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M) |
|---|
| 用戶管理 | Up to 16 users,3 user levels: administrator, operator, and user Password protection,Complicated password,HTTPS encryption,Control timeout |
|---|
| 安全 | settings,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF |
|---|
| 網絡儲存 | Micro SD/TF card (512 GB),Local storage,CVR,NVR,ANR |
|---|
| 客戶端 | Hik-Central Master,Hik-Central Pro,HikCentral Master Lite Chrome V61+, IE9 to IE11, Firefox V40+, Edge Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser. |
|---|
| 日夜模式 | Auto,Schedule,Manual |
|---|
| 信噪比 SNR | 60 dB |
|---|
| 影像增強 | BLC,3D DNR |
|---|
| 網絡接口 | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port(s) |
|---|
| 機身儲存 | Built-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512 GB |
|---|
| 警報 | 2 input interfaces (T1, SYNC), 7 output interfaces |
|---|
| RS-485 | 3 RS-485 interfaces (half duplex, HIKVISION) |
|---|
| RS-232 | 1 RS-232 interface |
|---|
| USB | 1 USB 2.0 interface HDD error,Network disconnected,IP address conflict, traffic light detector exception |
|---|
| Coverage | Up to 3 lane(s) vehicle capture,Moving direction detection Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain, Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, A |
|---|
| Trigger Mode | External I/O trigger/Radar trigger/Video trigger |
|---|
| Vehicle Type | Car,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle Capture rate > 99%, Vehicle moving direction recognition accuracy > 98.5%, LPR accuracy > 98%, Mistaken capture rate < 2% |
|---|
| No License Plate Detection | Supported |
|---|
| Motorcycle LPR | Supported Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black Recognizable at daytime only. Acura, Ankai, Ayvip, Alfa Romeo, Asiastar, Artega, ARCFOX, BAIC, Beiben Truck, BLUECAR, Bedford, Benz, BMW, BYD , Bufori, Buick, Bently, Brabus, Bugatti, Borgward, BONLUCK, Besturn, CADILLAC, Celis, Chevrolet, Citroen, Chery, Chrysler, Chang an, CNHTC, CHTC, Caterham, Conquest, C&C Truck |
|---|
| Vehicle Manufacturer | Rover, Lincoln, Lamborghini, Lotus, Luxgen, Levdeo, Leopaard, Lynk & Co , Lada, Leading Ideal, LEAPMOTOR, LUMMA, Lorinser, Land Wind, MAN Trucks , MAXUS, MG, MINI, Mahindra, Mitsuoka, Maserati, Meiya , McLaren, Maybach, Mazda, Morgan, Mitsubishi, Mustang, Marvel R, Maple, MANSORY, Modern, NOMA, Nissan, Norinco, Neoplan, NIO, NETA, Opel, Ora, Oushang, Perodua, Porsche, Peugeot, PGO, Proton, Pagani, |
|---|
| U-Turn | Supported (only E-Police mode) |
|---|
| Red Light Running | Supported (only E-Police mode) |
|---|
| Failing to Yield for Pedestrians | Supported (only E-Police mode) |
|---|
| Stop Vehicle on Intersection | Supported (only E-Police mode) |
|---|
| Yellow Box Junction Violation | Supported (only E-Police mode) |
|---|
| Not Following Directional Sign | Supported (only E-Police mode) Supported Supported |
|---|
| Seatbelt Detection | Supported (with flash supplement light) |
|---|
| Phone Call Detection | Supported (with flash supplement light) |
|---|
| Vehicle Window Film | Supported (with flash supplement light) |
|---|
| Wrong-Way Driving Detection | Supported |
|---|
| Emergency Lane Occupation | Supported (truck forbidden lane, emergency lane, urban bus lane) |
|---|
| Prohibition Mark Violation | Supported |
|---|
| Speeding | Supported (with Radar) |
|---|
| Low-Speed | Supported (with Radar) |
|---|
| Without Helmet | Supported |
|---|
| Manned Non-Motor Vehicle | Supported |
|---|
| Capture Speed Range | 10 to 320 km/h |
|---|
| 操作系統 | Linux AC 100 V to 240 V, 1.5 A, max. 35 W, 3-core terminal block， DC 24 model: DC 24 V, 2.5 A, max. 35 W, 2-core terminal block |
|---|

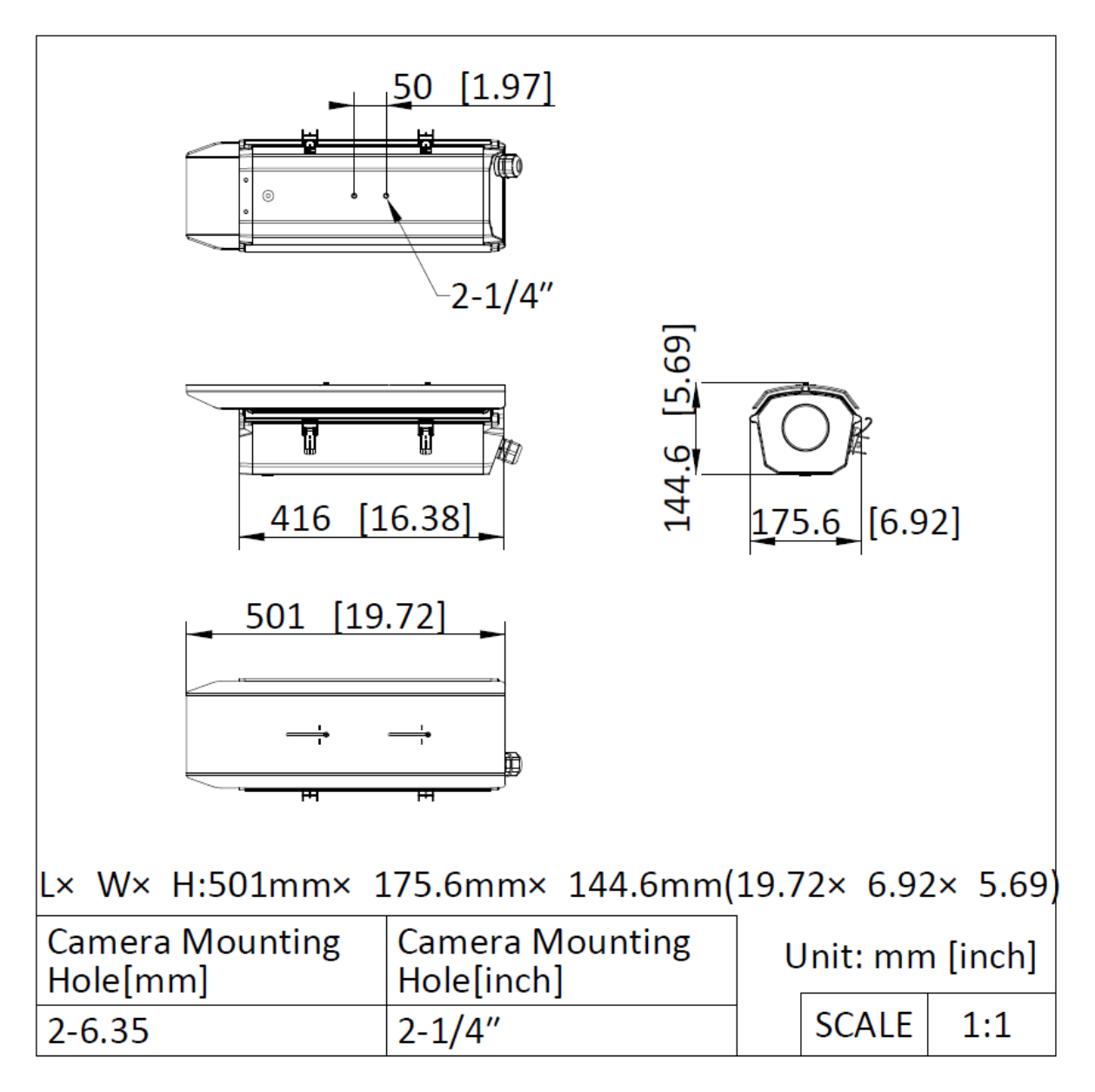

| 材質 | Aluminum alloy iDS-TCV900-HI:501.0 mm × 175.6 mm × 144.6 mm (19.72" × 6.92" × 5.69") (L × W × H) iDS-TCV900-HI/Y/1140/H1(AF)(海外标配),iDS-TCV900-HI/25/H1(海外标，配),iDS-TCV900-HI/25/H1(24V)(海外标配),iDS-TCV900-HI/1140/H1(AF)(海外标 |
|---|
| 尺寸 | 配):501.0 mm × 175.6 mm × 144.6 mm (19.72" × 6.92" × 5.69") (L × W × H) iDS-TCV900-HI/1140(AF)(海外标配),iDS-TCV900-HI/25(海外标，配),iDS-TCV900-HI/Y/1140(AF)(海外标配):636 mm × 174 mm × 146 mm (25.04" × 6.85" × 5.75") (L × W × H) iDS-TCV900-HI:667 mm × 357 mm × 224 mm (26.26" × 14.06" × 8.82") (L × W × H) iDS-TCV900-HI/1140(AF)(海外标配),iDS-TCV900-HI/25(海外标，配),iDS-TCV900-HI/Y/1140(AF)(海外标配):833 mm × 275 mm × 325 |
|---|
| 包裝尺寸 | 10.83" × 12.80") (L × W × H) iDS-TCV900-HI/Y/1140/H1(AF)(海外标配),iDS-TCV900-HI/25/H1(海外标，配),iDS-TCV900-HI/25/H1(24V)(海外标配),iDS-TCV900-HI/1140/H1(AF)(海外标配):667 mm × 357 mm × 224 mm (26.26" × 14.06" × 8.82") (L × W × H) iDS-TCV900-HI:Approx. 5.13 kg (11.31 lb.) iDS-TCV900-HI/Y/1140/H1(AF)(海外标配),iDS-TCV900-HI/25/H1(海外标，配),iDS-TCV900-HI/25/H1(24V)(海外标配),iDS-TCV900-HI/1140/H1(AF)(海外标，配):Approx. 5.13 kg ( |
|---|
| 工作環境 | -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) -30 °C to 70 °C (-22 °F to 158°F). Humidity: 5% to 95% (non-condensing) |
|---|
| 一般功能 | Password protection,Three streams,Heartbeat,One-key reset,Pixel counter 8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish CE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000 -3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014 CB: IEC 62368-1: 2014,CE-LVD: EN 62368-1: 2014+A11: 2017,CB: IEC 62368-1: 2018, CE-LVD: EN 62368- |
|---|
| Environment | CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006 iDS-TCV900-HI:IK10: IEC 62262:2002,IP67: IEC 60529-2013 iDS-TCV900-HI/1140(AF)(海外标配),iDS-TCV900-HI/25(海外标，配),iDS-TCV900-HI/Y/1140(AF)(海外标配):IK10: IEC 62262:2002,IP54: IEC 60529-2013 Protection iDS-TCV900-HI/Y/1140/H1(AF)(海外标配),iDS-TCV900-HI/25/H1(海外标，配),iDS-TCV900-HI/25/H1(24V)(海外标配),iDS-TCV900-HI/1140/H1(AF)(海外标，配):IK10: IEC |
|---|
