| Tunnel Size | 500 mm(W) × 300 mm(H) |
|---|

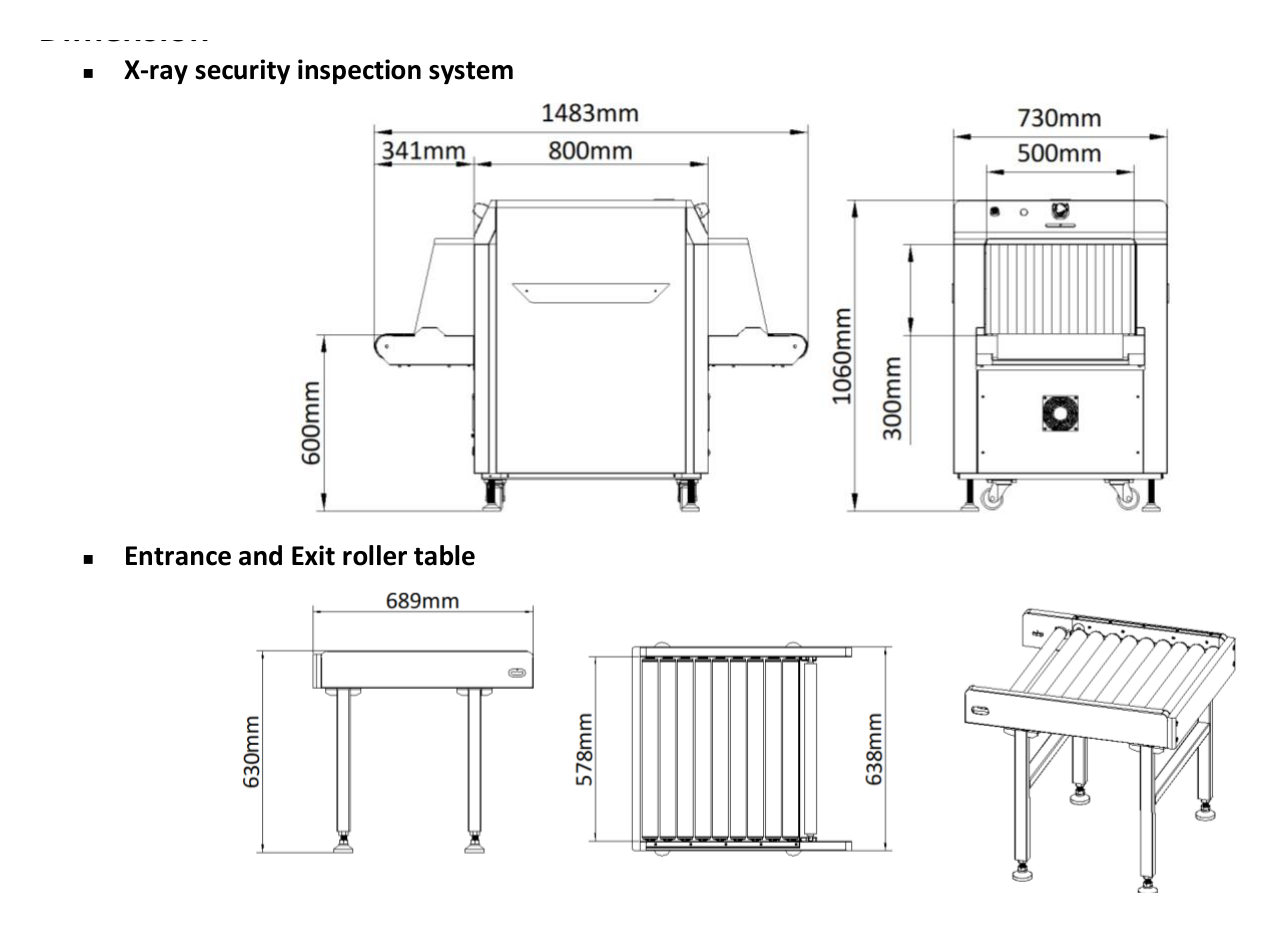

| 尺寸 | 1483 mm(L) × 730 mm(W) × 1060 mm(H) Performance |
|---|
| Line Resolution[1] | 38 AWG standard, 40 AWG typical |
|---|
| Penetration[1] (Steel) | 30 mm standard, 32 mm typical X-ray Generator |
|---|
| X-ray Generators | 1 |
|---|
| Anode Voltage / Current | 140 kV / 0.8 mA (Adjustable) |
|---|
| Cooling / Working Cycle | Oil-cooling / Continuous |
|---|
| Orientation | Vertically upward Radiation |
|---|
| External Dose Rate[2] | < 1.0 μSv/h (100mm away from the device surface) |
|---|
| Film Safety | Standard of ASA / ISO1600 Conveyor |
|---|
| Height | 600 mm |
|---|
| Speed | 0.2 m/s, 0.3 m/s adjustable |
|---|
| Load | 100Kg Monitoring System |
|---|
| Sensor Type | 1/2.8" Progressive Scan CMOS |
|---|
| Cameras | 3-ch |
|---|
| 視頻壓縮 | H.265 / H.264 / MJPEG |
|---|
| Max. Image Size | 1920 × 1080 |
|---|
| Video Storage Capability | More than 30 days Display |
|---|
| 屏幕尺寸 | 23.8", Single-screen |
|---|
| 解像度 | 1920 × 1080 @ 120Hz Intelligent Functions |
|---|
| Prohibited Goods | 35 categories with 64 types |
|---|
| Login Method | Fingerprint / Password System Functions Time / Date, baggage counting, user management, log management, Power on self-test, enhanced scanning, system information management, built-in system Standard diagnostics, standby mode, training, organic materials alarm, non-penetration alarm, etc. |
|---|
| | Image Process Functions Color / Black & White(C/B&W), Organic stripping(ORG-), Inorganic stripping(INORG-), Negative, High / Low penetration(H/L), Absorptivity |
|---|
| 影像增強 | increase(ABS+), Absorptivity decrease(ABS-), Super Enhancement(SEN), Edge Enhancement(Edge) and Suspect materials enhancement(Z789), 64X zoom in, 3X Local magnification, etc. 3 Colors mode (Default) Material Classification 6 Colors mode (Optional) |
|---|
| Image Recall | Recall infinitely |
|---|
| Image Storage Capability | 100,000 + Device Parameters |
|---|
| 功耗 | Max. 0.6 KW AC 230V (-10% to +10%) , 50Hz/60Hz (±3Hz) Power Supply AC 110V (-10% to +10%) , 50Hz/60Hz (±3Hz) |
|---|
| Noise Level | 60dB(A), 1000 mm away from the device surface Operating Temperature / Humidity 0 °C to 40 °C / 10 % to 95 % (non-condensing) |
|---|
| Storage Temperature / Humidity | -20 °C to 60 °C / 0 % to 95 % ( non-condensing) |
|---|
| 重量 | Net: approx. 240 Kg (excluding Roller table) Stated performance as measured by HIKVISION Imaging Standard Test Piece. |
|---|
