| Tunnel Size | 620 mm(W) × 420 mm(H) |
|---|

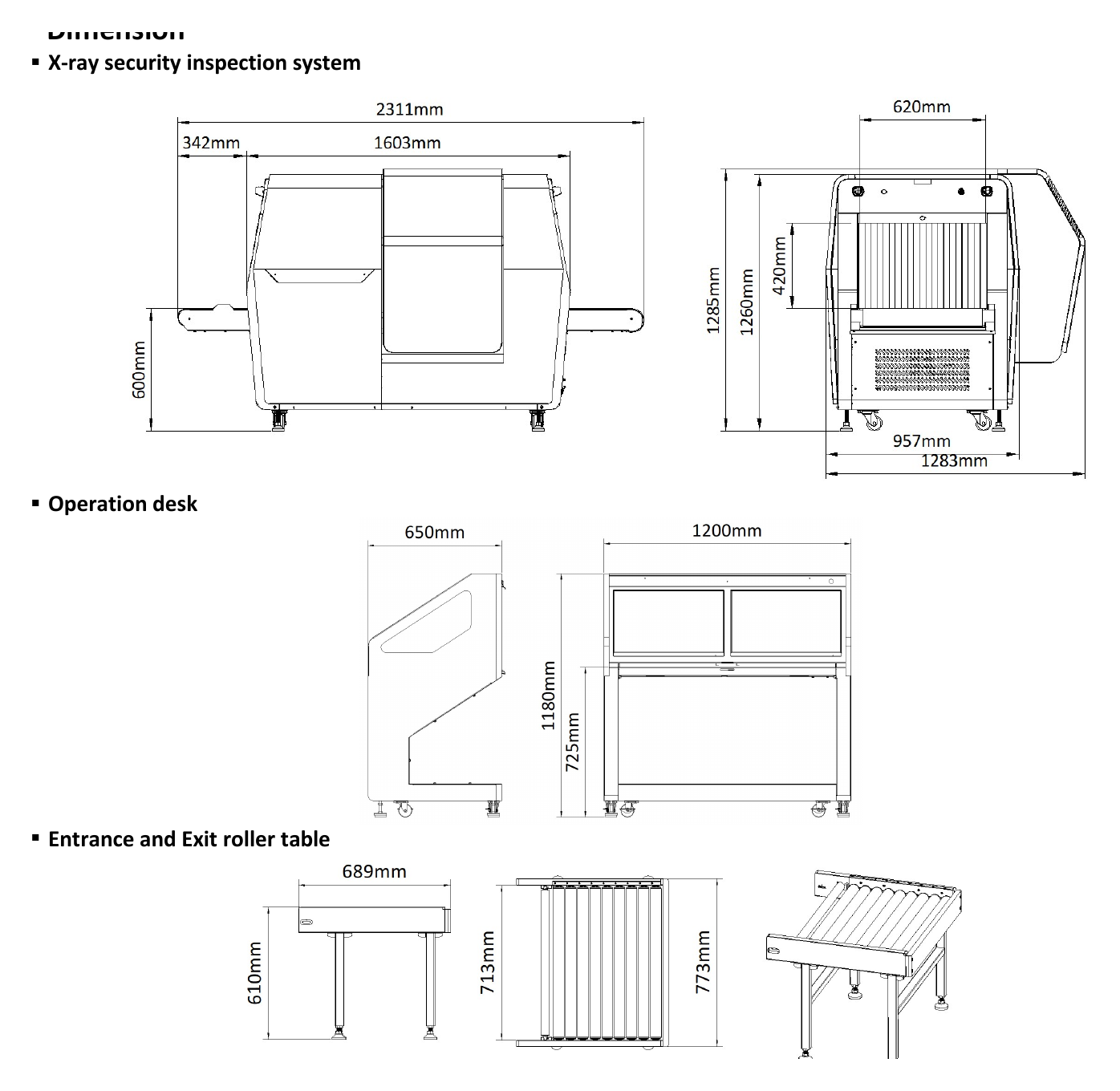

| 尺寸 | 2311 mm(L) × 1283 mm(W) × 1285 mm(H) |
|---|

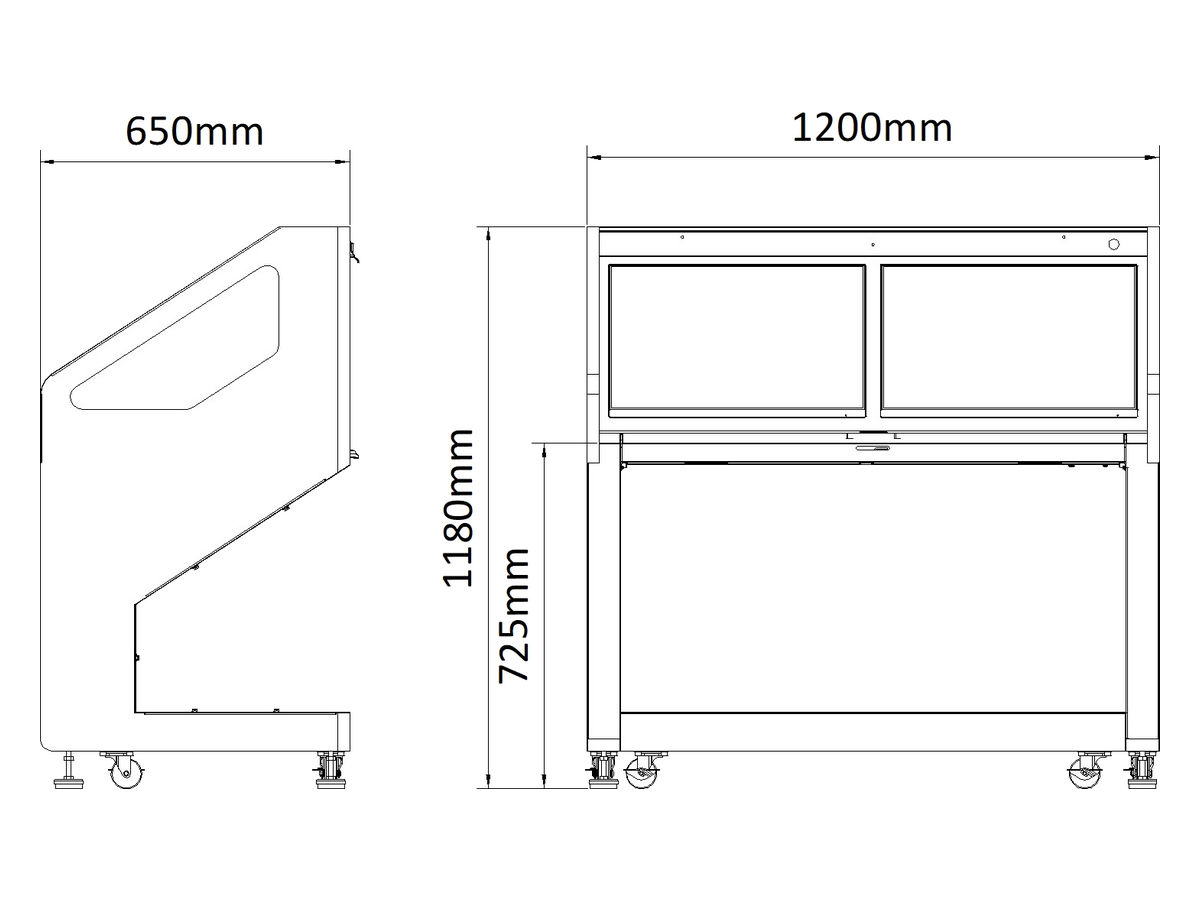

| Operation Desk Size | 1200 mm(L) × 650 mm(W) × 1180 mm(H) Performance |
|---|
| Line Resolution[1] | 38 AWG standard, 40 AWG typical |
|---|
| Penetration[1] (Steel) | 32 mm standard, 36 mm typical X-ray Generator |
|---|
| X-ray Generators | 2 |
|---|
| Anode Voltage / Current | 160kV / 1.0mA (Adjustable) |
|---|
| Cooling / Working Cycle | Oil-cooling / Continuous |
|---|
| Orientation | Vertically upward and Horizontal Radiation |
|---|
| External Dose Rate[2] | < 1.0 μSv/h (100mm away from the device surface) |
|---|
| Film Safety | Standard of ASA / ISO1600 Conveyor |
|---|
| Height | 600 mm |
|---|
| Speed | 0.2 m/s, 0.3 m/s, 0.4 m/s adjustable |
|---|
| Load | 165Kg Monitoring System |
|---|
| Sensor Type | 1/2.8" Progressive Scan CMOS |
|---|
| Cameras | 6-ch |
|---|
| 視頻壓縮 | H.265 / H.264 / MJPEG |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| Video Storage Capability | More than 30 days Display |
|---|
| 屏幕尺寸 | 23.8", Dual-screen |
|---|
| 解像度 | 1920 × 1080 @ 120Hz Intelligent Functions |
|---|
| Prohibited Goods | 35 categories with 64 types |
|---|
| Login Method | Face / Fingerprint / Password System Functions Time / Date, baggage counting, user management, log management, X-ray on time, power on self-test, bi-directional scanning, enhanced scanning, system Standard information management, built-in system diagnostics, standby mode, training, HCP, organic materials alarm, non-penetration alarm, explosive detection, etc. |
|---|
| | Image Process Functions Color / Black & White(C/B&W), Organic stripping(ORG-), Inorganic stripping(INORG-), Negative, High / Low penetration(H/L), Absorptivity |
|---|
| 影像增強 | increase(ABS+), Absorptivity decrease(ABS-), Super Enhancement(SEN), Edge Enhancement(Edge) and Suspect materials enhancement(Z789), 64X zoom in and 3X image magnifier, etc. 3 Colors mode (Default) Material Classification 6 Colors mode (Optional) |
|---|
| Image Recall | Recall infinitely |
|---|
| Image Storage Capability | 100,000 + Device Parameters |
|---|
| 功耗 | Max. 1.0 KW AC 220V (-15% to +10%) , 50Hz/60Hz (±3Hz) Power Supply AC 110V (-15% to +10%) , 50Hz/60Hz (±3Hz) |
|---|
| Noise Level | 60dB(A), 1000 mm away from the device surface Operating Temperature / Humidity 5 °C to 40 °C / 10 % to 95 % (non-condensing) |
|---|
| Storage Temperature / Humidity | -20 °C to 60 °C / 0 % to 95 % ( non-condensing) |
|---|
| 重量 | Net: approx. 800 Kg Stated performance as measured by HIKVISION Imaging Standard Test Piece. The X-ray leakage rate reaches the natural environment background level, well comply for USFDA requirements. |
|---|
