| Tunnel Size | 650 mm(W) × 500 mm(H) |
|---|

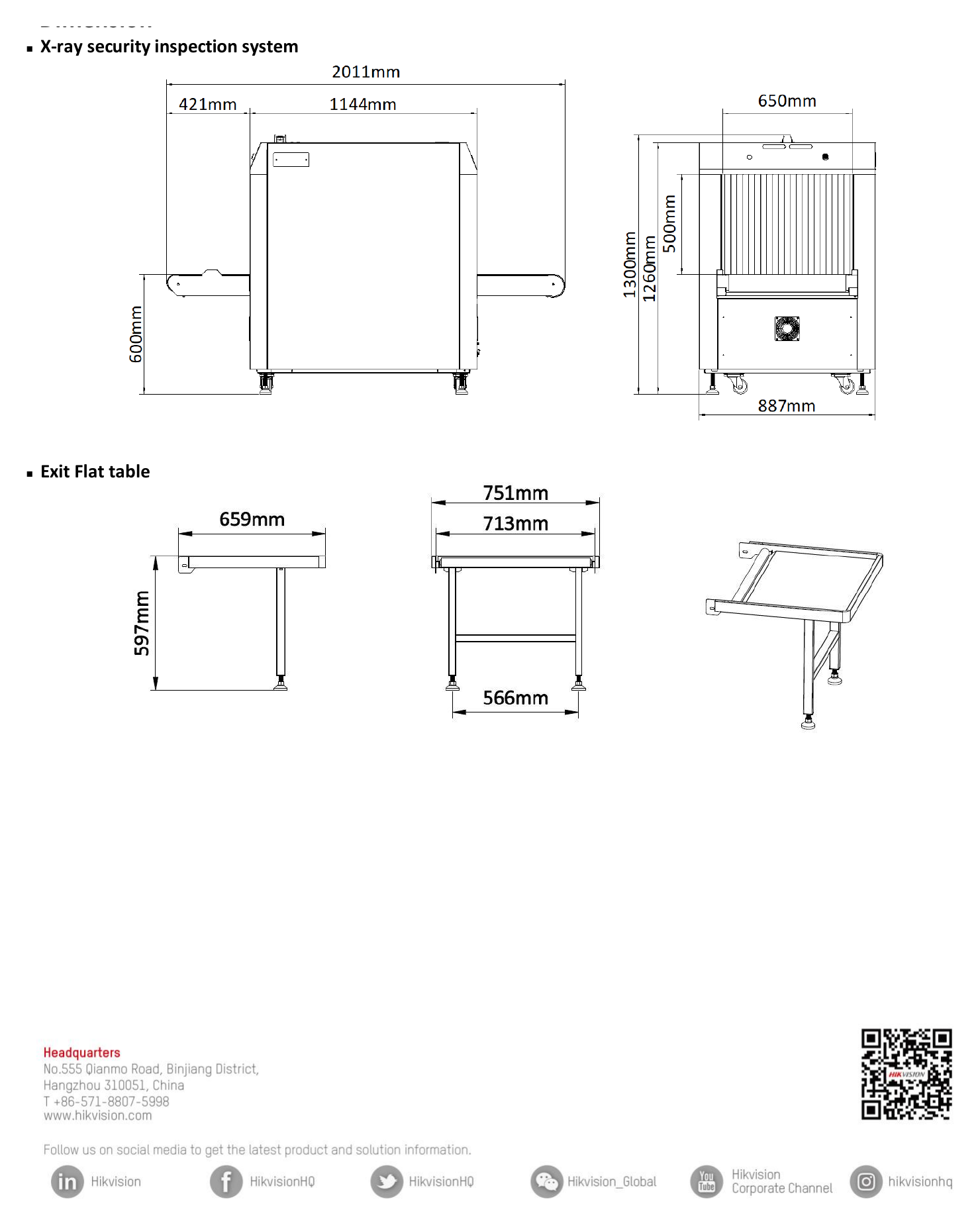

| 尺寸 | 2011 mm(L) × 887 mm(W) × 1300 mm(H) Performance |
|---|
| Line Resolution[1] | 36 AWG standard, 38 AWG typical |
|---|
| Penetration[1] (Steel) | 6 mm standard, 10 mm typical X-ray Generator |
|---|
| X-ray Generators | 1 |
|---|
| Anode Voltage / Current | 80 kV / 0.6 mA(Adjustable) |
|---|
| Cooling / Working Cycle | Oil-cooling / Continuous |
|---|
| Orientation | Vertically upward Radiation |
|---|
| External Dose Rate[2] | < 1.0 μSv/h (100mm away from the device surface) |
|---|
| Film Safety | Standard of ASA / ISO1600 Conveyor |
|---|
| Height | 600 mm |
|---|
| Speed | 0.2 m/s |
|---|
| Load | 165Kg Monitoring System |
|---|
| Sensor Type | 1/2.8" Progressive Scan CMOS |
|---|
| Cameras | 3-ch |
|---|
| 視頻壓縮 | H.265 / H.264 / MJPEG |
|---|
| 最大解像度 | 1920 × 1080 |
|---|
| Video Storage Capability | More than 30 days Display |
|---|
| 屏幕尺寸 | 21.5", single screen |
|---|
| 解像度 | 1920 × 1080 Intelligent Functions |
|---|
| AI Detection | 7 categories with 15 types |
|---|
| Login Method | Password System Functions Time / Date, baggage counting, user management, log management, Power |
|---|
| 標準 | on self-test, enhanced scanning, system information management, built-in system diagnostics, standby mode, non-penetration alarm, etc. |
|---|
| | Image Processing Functions Color / Black & White(C/B&W), Pseudo-color, multi-brightness, Negative, Absorptivity increase(ABS+), Absorptivity decrease(ABS-), Super Image Enhancement Enhancement(SEN), Edge Enhancement(Edge), 64X zoom in, 3X local magnification, etc. |
|---|
| Image Recall | Recall infinitely. |
|---|
| Image Storage Capability | 100,000 + Device Parameters |
|---|
| 功耗 | Max. 0.6 KW AC 230V (-10% to +10%) , 50Hz/60Hz (±3Hz) Power Supply AC 110V (-10% to +10%) , 50Hz/60Hz (±3Hz) |
|---|
| Noise Level | 60dB(A), 1000 mm away from the device surface |
|---|
| Operating Temperature / Humidity | 5 °C to 40 °C / 10 % to 95 % (non-condensing) |
|---|
| 重量 | Net: approx. 500 Kg Stated performance as measured by HIKVISION Imaging Standard Test Piece. The X-ray leakage rate reaches the natural environment background level, well comply with US FDA requirements. |
|---|
