| ment of product to plate. | S1215, S121575, S2415, S241575, Marshal |
|---|
| MEA | 319-96-E (P1215, P121575, P2415, P241575, P2475, 51609p1.jpg |
|---|
| source of power (non-coded power supply). | marks of System Sensor, a division of Pittway Corporation. This document is not intended to be used for installation purposes. We try to keep our product information up-to-date and accurate. We cannot cover all specific applications or anticipate all requirements. All specifications are subject to change without notice. For more information, contact Fire•Lite Alarms, One Fire-Lite Place, Northford |
|---|
| FEATURES | • Single-gang mounting without the use of a mounting plate (horn model only). |
|---|
| • | 24-volt strobe models: 15, 15/75, 75 and 110 candela. • Self-contained screw covers. |
|---|
| — 3000 Hz interrupted — electromechanical | a Sync•Circuit module (MDL). |
|---|
| — 96 peak dBA @ 10 ft. low output.* | SPECIFICATIONS |
|---|
| plate. | Operating voltage range:** 12 V: 10.5 - 17 V. 24 V: 20 - 30 |
|---|

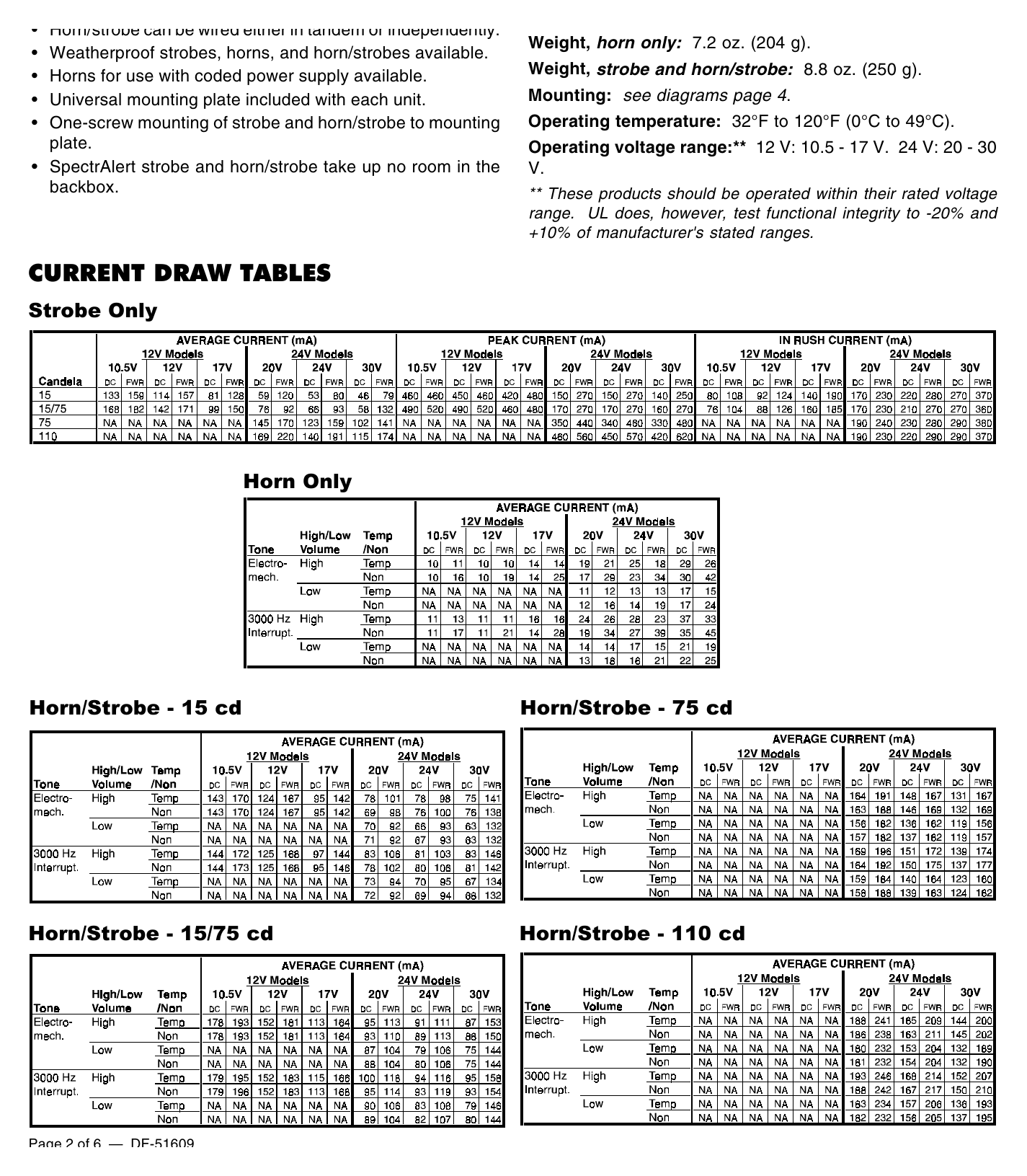

| backbox. | ** These products should be operated within their rated voltage range. UL does, however, test functional integrity to -20% and +10% of manufacturer's stated ranges. Horn Only |
|---|
| Horn/Strobe - 15 cd | Horn/Strobe - 75 cd |
|---|
| Horn/Strobe - 15/75 cd | Horn/Strobe - 110 cd |
|---|
| ENGINEERING SPECIFICATIONS | Horn/Strobe Combination — Horn/strobe shall be a System Sensor SpectrAlert model _________ listed to UL 1971 and UL 464 and shall be approved for fire protective service. Horn/strobe shall be wired as a primary signaling notification appliance and comply with the Americans with Disabilities Act requirements for visible signaling appliances, flashing at 1 Hz over its entire operating voltage range. |
|---|
| MOUNTING DIAGRAMS | Horn Surface Mount with accessory |
|---|
| Horn | Backbox Skirt Direct Mount Horn with Universal Mounting Plate (included with each product) Strobe or Horn/Strobe with Universal Mounting Plate (included with each product) Strobe or Horn/Strobe with accessory Small Footprint Mounting Plate |
|---|
| Sync•Circuit Module Direct Mount | Strobe or Horn/Strobe Surface Mount with accessory Backbox Skirt UL Reverberant Room dBA @ Volts DC Anechoic Room Peak dBA @ 10 ft./VDC 10.5 12 17 20 24 30 10.5 12 17 20 24 30 |
|---|
| LOW Electromechanical | NA NA NA 75 75 79 NA NA NA 94 96 98 |
|---|
| TONE 3000 Hz Interrupted | NA NA NA 75 79 79 NA NA NA 94 96 98 |
|---|
| HIGH Electromechanical | 75 75 79 82 82 82 94 95 98 100 101 102 |
|---|
| Temporal | HIGH Electromechanical 79 79 85 85 88 88 94 95 98 100 101 102 |
|---|
| RED | WHITE voltage candela nom. VDC nom. FWR |
|---|
| P1215 | P1215W 12 15 124 167 |
|---|
| Horn/Strobes | P121575 P121575W 12 15/75 152 181 |
|---|
| P2415 | P2415W 24 15 78 98 |
|---|
| P241575 | P241575W 24 15/75 91 111 |
|---|
| P2475 | P2475W 24 75 148 167 |
|---|
| P24110 | P24110W 24 110 165 209 |
|---|
| P241575K (weatherproof) | — 24 15/75 91 111 |
|---|
| P2475K (weatherproof) | — 24 75 148 167 |
|---|
| P24110K (weatherproof) | — 24 110 165 209 |
|---|
| P2415A | P2415WA 24 15 78 98 |
|---|
| P241575A | P241575WA 24 15/75 91 111 |
|---|
| P2475A | P2475WA 24 75 148 167 |
|---|
| Canadian Models, | P24110A P24110WA 24 110 165 207 Horn/Strobes |
|---|
| P241575KA (weatherproof) | — 24 15/75 91 111 |
|---|
| P2475KA (weatherproof) | — 24 75 148 167 |
|---|
| P24110KA (weatherproof) | — 24 110 165 209 |
|---|
| Spanish Labeling, H/S | P241575F (FUEGO) 24 15/75 91 111 |
|---|
| S1215 | S1215W 12 15 114 157 |
|---|
| Strobes | S121575 S121575W 12 15/75 142 171 |
|---|
| S2415 | S2415W 24 15 53 80 |
|---|
| S241575 | S241575W 24 15/75 66 93 |
|---|
| S2475 | S2475W 24 75 123 149 |
|---|
| S24110 | S24110W 24 110 140 191 |
|---|
| S241575K (weatherproof) | — 24 15/75 66 93 |
|---|
| S2475K (weatherproof) | — 24 75 123 159 |
|---|
| S24110K (weatherproof) | — 24 110 140 191 |
|---|
| S2415A | S2415WA 24 15 53 80 |
|---|
| S241575A | S241575WA 24 15/75 66 93 |
|---|
| S2475A | S2475WA 24 75 123 149 |
|---|
| S241575KA (weatherproof) | — 24 15/75 66 93 |
|---|
| S2475KA (weatherproof) | — 24 75 123 149 |
|---|
| S24110KA (weatherproof) | — 24 110 140 191 |
|---|
| Spanish Labeling, Strobes | S241575F (FUEGO) 24 15/75 66 93 |
|---|
| H12/24 | H12/24W 12/24 NA 12 / 23 12 / 21 |
|---|
| Horns | H12/24K (weatherproof) — 12/24 NA 12 / 23 12 / 21 |
|---|
| HC12/24 (coded power) | HC12/24W (coded power) 12/24 NA 12 / 23 12 / 21 |
|---|
| HC12/24K (weatherproof, | — 12/24 NA 12 / 23 12 / 21 for coded power) |
|---|
| H12/24A | H12/24WA 12/24 NA 12 / 23 12 / 21 |
|---|
| H12/24KA (weatherproof) | — 12/24 NA 12 / 23 12 / 21 |
|---|
| Accessories | HC12/24A (coded power) HC12/24WA (coded power) 12/24 NA 12 / 23 12 / 21 |
|---|
| MDL | MDLW 12/24 NA 16 24 Sync•Circuit Module |
|---|
| MDLA | MDLWA 12/24 NA 16 24 |
|---|
| Small Footprint Mounting | S-MP S-MPW NA NA NA NA Plate for Single-Gang ONLY |
|---|
| Surface-Mount Backbox Skirt BBS | BBSW NA NA NA NA |
|---|
| Universal Mounting Plate | D-MP D-MPW NA NA NA NA (replacement) |
|---|
| Weatherproof Backbox | WBB — NA NA NA NA NOTES: 1) Canadian model numbers end in “A”. 2) Latin American model numbers end in “F”. 3) All weatherproof models must use weatherproof backbox model WBB. 4) All SpectrAlert products are designed for wall-mount only. 5) Installation of less than 75 candela strobes may be permissible under the equivalent facilitation clause of the ADAAG (Sec. 2.2). However, it is the responsibil |
|---|
