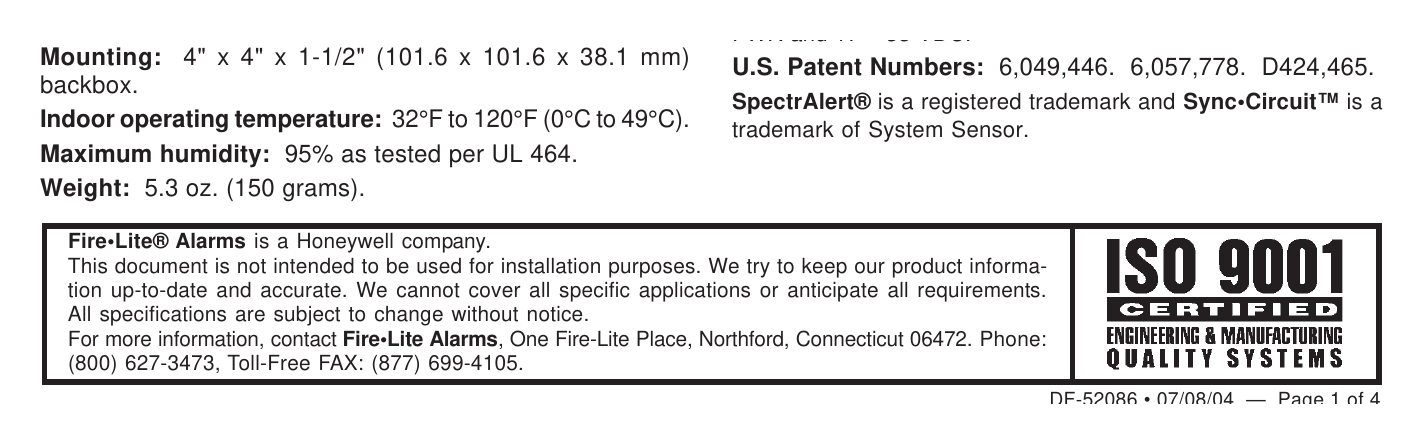

| Dimensions: 6.8" (172.72 mm) diameter. | FWR and 17 – 33 VDC. SpectrAlert® is a registered trademark and Sync•Circuit™ is a Fire•Lite® Alarms is a Honeywell company. This document is not intended to be used for installation purposes. We try to keep our product informa- tion up-to-date and accurate. We cannot cover all specific applications or anticipate all requirements. All specifications are subject to change without notice. For more i |
|---|
| FWR Max. | DC Max. FWR Max. FWR Max. |
|---|
| Model No. | Operating Operating Operating Operating |
|---|
| Current - | Current - Current - Current - Horn |
|---|
| Strobe | Strobe Horn Horn Audibility |
|---|
| Red | White Voltage Candela (mA RMS) (mA RMS) (mA RMS) (mA RMS) (dBA) |
|---|
| SC2415 | SC2415W 15/75 15 68 64 |
|---|
| SC241575 | SC241575W 24 15/75 77 78 |
|---|
| SC2430 | SC2430W 24 30 107 113 |
|---|
| SC2475 | SC2475W 24 75 197 205 |
|---|
| SC2495 | SC2495W 24 95 239 274 |
|---|
| SC24115 | SC24115W 24 115 298 325 |
|---|
| SC24177 | SC24177W 24 177 399 489 |
|---|
| PC2415 | PC2415W 24 15 68 64 57.5 57 75 |
|---|
| PC241575 | PC241575W 24 15/75 77 78 57.5 57 75 |
|---|
| PC2430 | PC2430W 24 30 107 113 57.5 57 75 |
|---|
| PC2475 | PC2475W 24 75 197 205 57.5 57 75 |
|---|
| PC2495 | PC2495W 24 95 239 274 57.5 57 75 |
|---|
| PC24115 | PC24115W 24 115 298 325 57.5 57 75 |
|---|
| PC24177 | PC24177W 24 177 399 489 57.5 57 75 |
|---|
| MDL | MDLW Average Current (mA) Peak Current (mA) In-rush Current (mA) |
|---|
| DC | FWR DC FWR DC FWR 12 10 12 30 31 87 122 24 11 15 35 37 198 262 |
|---|
| Temporal | Low Volume Electromechnical 300 Hz Interrupted |
|---|
| High Volume | Electromechnical 300 Hz Interrupted |
|---|
| Non-Temporal | Low Volume Electromechnical 300 Hz Interrupted |
|---|
| SC2415W | Ceiling-mount strobe, 24 volt, 15 candela, white |
|---|
| SC241575W | Ceiling-mount strobe, 24 volt, 1575 candela, white |
|---|
| SC2430W | Ceiling-mount strobe, 24 volt, 30 candela, white |
|---|
| SC2475W | Ceiling-mount strobe, 24 volt, 75 candela, white |
|---|
| SC2495W | Ceiling-mount strobe, 24 volt, 95 candela, white |
|---|
| SC24115W | Ceiling-mount strobe, 24 volt, 115 candela, white |
|---|
| SC24177W | Ceiling-mount strobe, 24 volt, 177 candela, white |
|---|

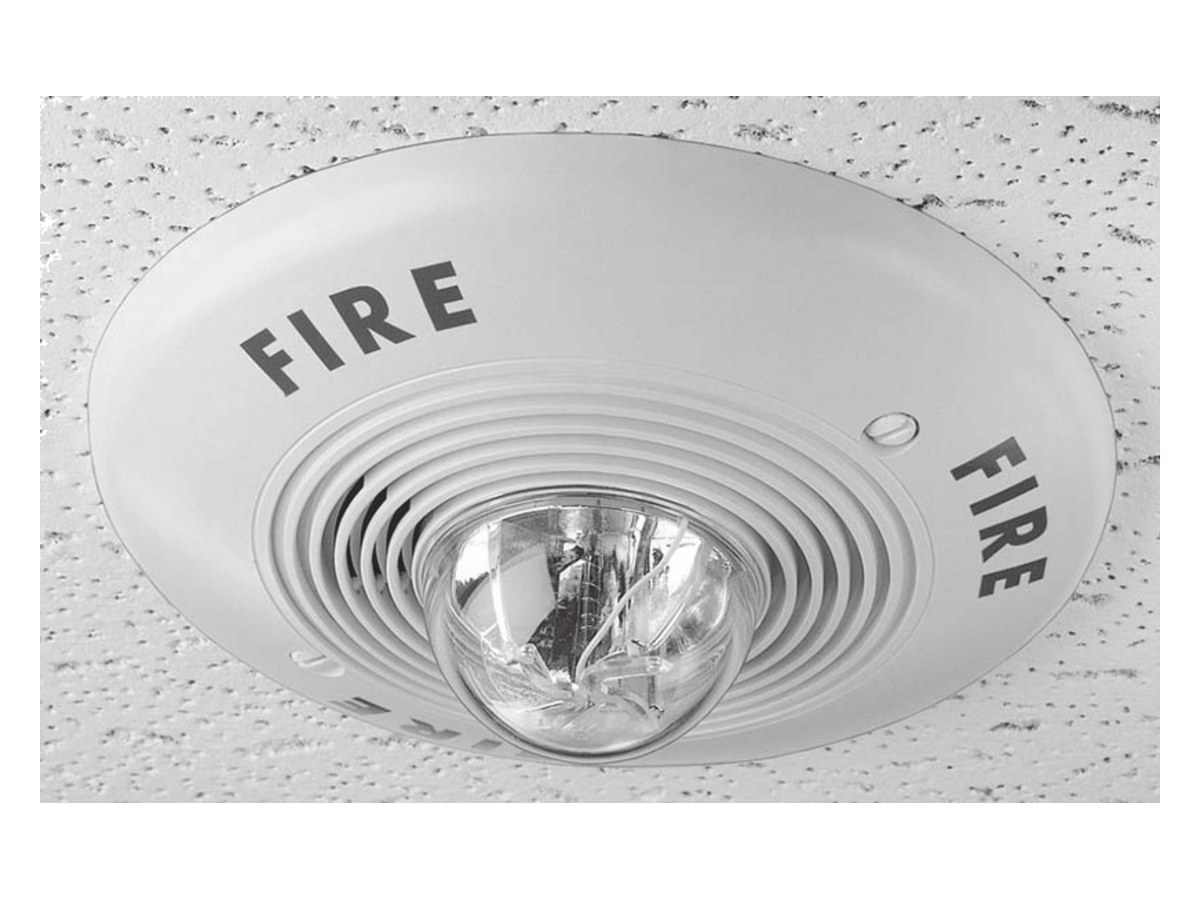

| PC2415W | Ceiling-mount horn/strobe, 24 volt, 15 candela, white |
|---|
| PC241575W | Ceiling-mount horn/strobe, 24 volt, 1575 candela, white |
|---|
| PC2430W | Ceiling-mount horn/strobe, 24 volt, 30 candela, white |
|---|
| PC2475W | Ceiling-mount horn/strobe, 24 volt, 75 candela, white |
|---|
| PC2495W | Ceiling-mount horn/strobe, 24 volt, 95 candela, white |
|---|
| PC24115W | Ceiling-mount horn/strobe, 24 volt, 115 candela, white |
|---|
| PC24177W | Ceiling-mount horn/strobe, 24 volt, 177 candela, white Accessories |
|---|
| MDLW | Sync•Circuit™ module, white |
|---|
| BBSC | Surface-mount back box skirt, red |
|---|
| BBSCW | Surface-mount back box skirt, white |
|---|
