| ease of maintenance. | Intelligent VESDA-E VEA-040-A10-NTF |
|---|
| requirements. | locations with the fire alarm event. To assist in investigation of the |
|---|
| in FlashScan® mode only. | pling points and sampling tubes, with faults indicated on the fire alarm control panel. Alarms and fire location are signaled to the |
|---|
| the environment. | • Automatic tube breakage and sampling point presence detection |
|---|
| CONNECTIVITY AND CONFIGURATION | and sampling point cleaning at set intervals. • Reliable linear pump technology. • 3.5” color touchscreen for status review. • Seven pre-configured relays. DN-61036:A • 8/17/18 — Page 1 of 4 |
|---|
| valve. | • Uses 45 detector SLC addresses. Sensitivity settings for all event |
|---|
| • Ethernet 100BASE-T. | thresholds are programmed with the VSC or VSM applications. |
|---|
| • WiFi, 802.11 b/g/n. | • Detector trouble reporting at panel. |
|---|
| • Local host-mode USB port. | NFS2-3030/NCA-2 CAPABILITIES |
|---|
| • Easy cable termination access. | • Displays the real-time read status of percent of alarm. |
|---|
| • Event Log (20,000 events). | • Put Intelligent VESDA-E VEA Series detectors into Service Mode, shutting the device down for maintenance. • Reset airflow baselines for an Intelligent VESDA-E VEA Series detector. ing Line Circuit (SLC) loop of the NFS-320, NFS2-640, and |
|---|
| Supply voltage | 18-30 VDC (24 V Nominal) |
|---|
| Device current consumption @ 24VDC | VEA-040-A00-NTF VEA-040-A10-NTF |
|---|
| Normal operation | 1.12A 1.12A |
|---|
| In alarm | 1.12A 1.12A |
|---|
| Peak current (scan mode) | 3.5A 3.5A |
|---|
| Aspirator | Linear Vacuum Pump |
|---|
| Dimensions (WHD) | 13.9 in x 13.2 in x 5.33 in (352 mm x 336 mm x 135.5 mm) |
|---|
| 重量 | 21.8 lbs (9.9 kg) 22.2 lbs (10 kg) |
|---|

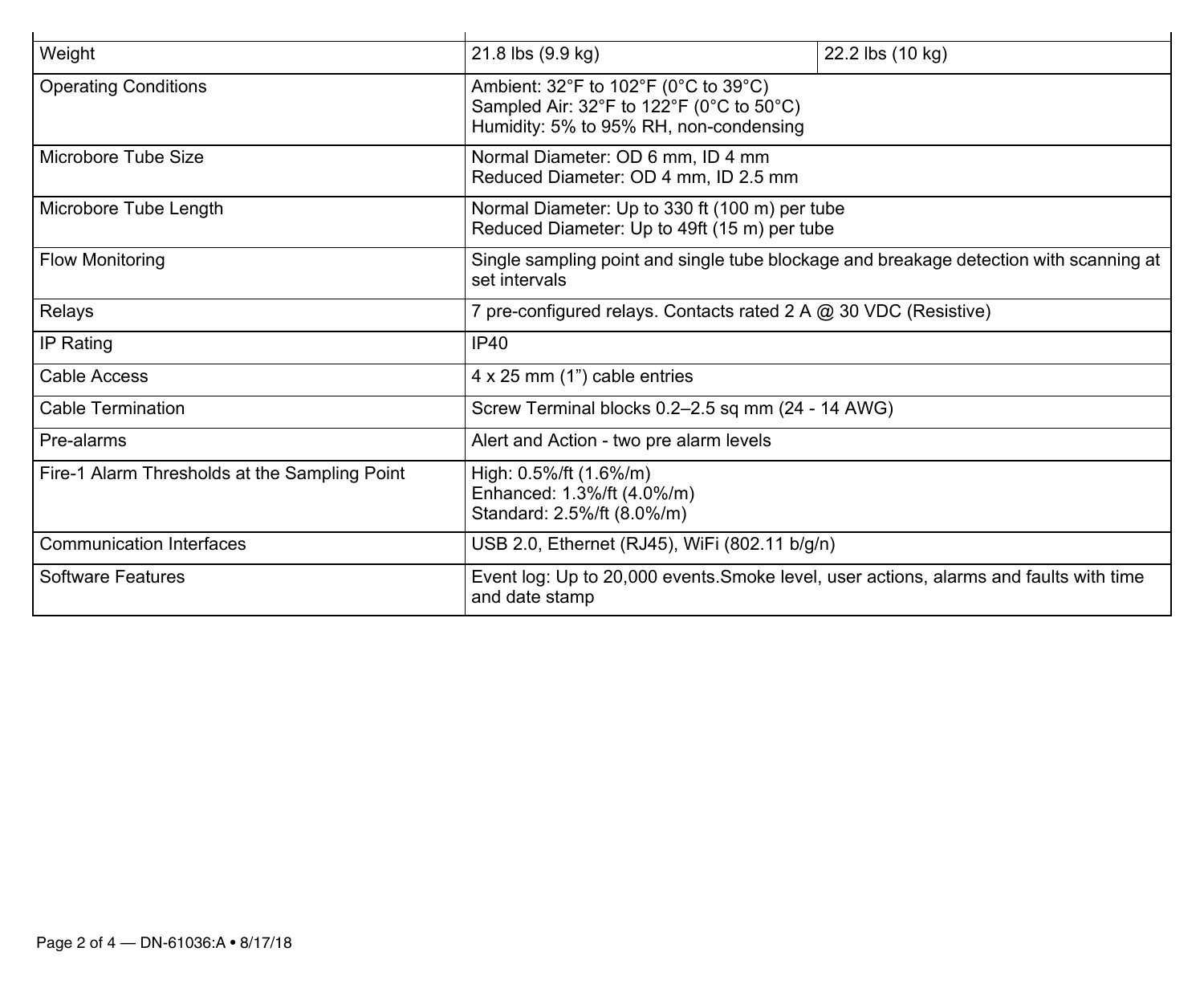

| Operating Conditions | Ambient: 32°F to 102°F (0°C to 39°C) Sampled Air: 32°F to 122°F (0°C to 50°C) Humidity: 5% to 95% RH, non-condensing |
|---|
| Microbore Tube Size | Normal Diameter: OD 6 mm, ID 4 mm Reduced Diameter: OD 4 mm, ID 2.5 mm |
|---|
| Microbore Tube Length | Normal Diameter: Up to 330 ft (100 m) per tube Reduced Diameter: Up to 49ft (15 m) per tube |
|---|
| Flow Monitoring | Single sampling point and single tube blockage and breakage detection with scanning at set intervals |
|---|
| Relays | 7 pre-configured relays. Contacts rated 2 A @ 30 VDC (Resistive) |
|---|
| IP Rating | IP40 |
|---|
| Cable Access | 4 x 25 mm (1”) cable entries |
|---|
| Cable Termination | Screw Terminal blocks 0.2–2.5 sq mm (24 - 14 AWG) |
|---|
| Pre-alarms | Alert and Action - two pre alarm levels Enhanced: 1.3%/ft (4.0%/m) Standard: 2.5%/ft (8.0%/m) |
|---|
| Communication Interfaces | USB 2.0, Ethernet (RJ45), WiFi (802.11 b/g/n) |
|---|
| Software Features | Event log: Up to 20,000 events.Smoke level, user actions, alarms and faults with time and date stamp |
|---|
| Symbol | LED Fire 2 VEU-A10 [Zone Number] Zone Name Fire 1 0.1100%/m Action Alert Disabled Fault Power This button is disabled. Smoke and Alarm Threshold Levels Detector Fault Aspirator Fault Power Fault Filter Fault Smoke Chamber Fault Communication Fault StaX Module Fault DN-61036:A • 8/17/18 — Page 3 of 4 We try to keep our product information up-to-date and accurate. We cannot cover all specific applic |
|---|
