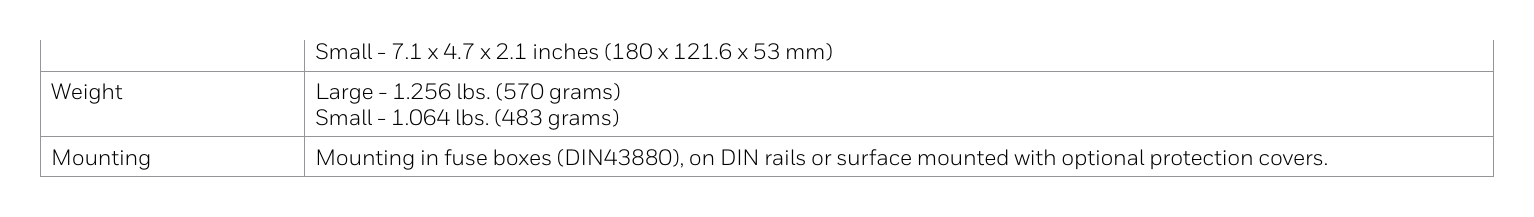

| PARAMETER | SPECIFICATION |
|---|
| CPU | Crossover processor NXP I.MRT, Cortex M7 |
|---|
| Memory capacity | 16 MB QSPI Flash, 16 MB SDRAM |
|---|
| Ethernet | BACnetTM IP: 2 x RJ-45 Ethernet ports with a protection that allows loop topology to continue the communication with other controllers even if one node fails, when used with an RSTP supporting device. |
|---|
| Real Time Clock | 24 hours backup after power failure After 24 hours, the time will reset to factory default time until the user performs a BACnetTM Time Sync |
|---|
| Small LEDs | Transmission or reception of communication signal (green) |
|---|
| Large LED | Controller status (Green, Yellow, and Red) ELECTRICAL |
|---|
| Rated Input Voltage | 20 - 30 VAC / 24 - 30 VDC • BACnetTM IP : 4 VA |
|---|
| Nominal Power Consumption | • BACnetTM MS/TP : 4 VA • BACnetTM T1L : 4 VA |
|---|
| Full Load Power Consumption | • BACnetTM IP : 30 VA (Maximum load including external loads, Sylk™, Communication, Universal IO output, and • BACnetTM MS/TP : 30 VA 24 VDC output, excluding the load on the SSRs and Relays). Note: For the current consumption of SSR, refer SSR section table. • BACnetTM T1L : 30 VA |
|---|
| Frequency Range | 50 - 60 Hz |
|---|
| Auxiliary Power Output | 1 x 24 VAC at 75 mA 1 x 24 VDC at 75 mA |
|---|
| Impulse Voltage | 330 VAC OPERATIONAL ENVIRONMENT |
|---|
| 儲存溫度 | -40 °F to 150 °F (-40 °C to 66 °C) |
|---|
| 工作溫度 | -40 °F to 122 °F (-40 °C to 50 °C) |
|---|
| Humidity | 5 % to 95 % RH., non-condensing |
|---|
| 防護等級 | IP20, NEMA 1 |
|---|
| Pollution Level | 2 SUPPORTED DEVICES* TR40, TR40-H, TR40-CO2, TR40-H-CO2, TR42, TR42-H, TR42-CO2, TR42-H-CO2, TR50 (emulation mode only), SylkTM Wall Modules TR71, TR71-H, TR75, TR75-H, TR75-HE, TR120 (TR75-E), and TR120-H (emulation mode only). |
|---|
| SylkTM Sensor | C7400S |
|---|
| SylkTM Actuators | MS3103, MS3105, MS3110, and MS3120 |
|---|
| Non Sylk™ Actuators | MS4103, MS4105, MS7403, MS7405, MS7503, MS7505, MS8103, and MS8105 |
|---|
| Hardwired Wall Modules | T7460 A, B, C, D, E, F and T7770 A, B, C, D, E, F, G Modbus RTU devices from any manufacturer (including Honeywell Modbus devices, for example Modbus Devices DALI64MODPSUF/S, TR50, and TR80) can be used. SOLID STATE RELAY (SSR) SSR works with maximum 24 VAC / VDC 1.5 A constant; 3.5 A inrush for 0.1 seconds per SSR output. Factory installed jumper between 24 VAC or 24 VDC supply and SSR input shar |
|---|
| AI | 16-bit A/D resolution • 0(2)…10 V direct/reverse or 0(4)…20 mA input. • Sensors: 10K Ohm NTC Type II, 10K Ohm NTC Type III, 10K3A1, 20K Ohm NTC, PT100, PT1000, NI1000TK5000, NI1000 Class B DIN43760, PT3000, 100 Ohm to 100K Ohm resistive (custom characteristic). |
|---|
| UI | • Hardwired wall modules*: space temperature, space temperature setpoint, fan speed override, occupancy mode override. • Dry contact binary input with direct/reverse. • Pulse input with maximum frequency 100 Hz, minimum pulse width 5 ms. Compatible with the S0* interface for pulse counters. • Voltage output with 0(2)…11 V direct/reverse with -3 mA …+20 mA. |
|---|
| AO | • Current output with 0(4)…20 mA direct/reverse. • Hardwired wall modules*: LED Control. |
|---|
| DO | Dry contact binary output with direct/reverse. |
|---|
| COMMUNICATION | STANDARDS AND APPROVALS |
|---|
| Protocol | • BACnet™ IP (RJ45 or T1L) BACnet™ BTL®-Listed; BACnet™ Advanced Application Controller |
|---|
| supported | • BACnet™ MS/TP* (B-AAC) certification pending, expected in 2023. |
|---|
| • Modbus RTU (Modbus client only) | UL 916 |
|---|
| IP Addressing | • Dynamic: DHCP and Link-local UL/ULC 60730-1 |
|---|
| Modes | • Static: Assigned FCC/IC Product Class B |
|---|
| Sylk™ | 2-wire, polarity-insensitive * Auto Baud rate detection is provided for the BACnet™ MS/TP |
|---|
| controllers. | APPLICABLE TECHNICAL LITERATURE |
|---|
| TITLE | REFERENCE |
|---|
| Honeywell Unitary Controller 24 V - | 31-00572 Mounting Instructions T1L COMMUNICATION |
|---|
| Connection | Screw terminal, auto MDI-X |
|---|
| Cable Type | Single twisted pair, 18AWG, shielded or unshielded |
|---|
| Distance | Maximum 984 ft. (300 m) to Honeywell T1L controller in daisy chain. Maximum 2,952 ft. (900 m) to any other T1L device without a daisy chain. |
|---|
| Transmission | 10 Mbps speed @U.S. Registered Trademark © 2023 Honeywell International Inc. |
|---|
| Honeywell Building Control | 31-00613-01 | Rev. 04-23 |
|---|
