| Dimensions (Detector) | Height 6” (152.4 mm); Width 10” (254 mm); Depth 4.5” (114.3 mm) |
|---|
| Dimensions (Reflector) | Height 9.06” (230 mm); Width 7.87” (200 mm) |
|---|
| Weight (Installed) | 2.48 lbs (1.12 kg) |
|---|
| Weight (Shipping): | 3.91 lbs (1.77 kg) |
|---|
| Wire Gauge for Terminals | 14 AWG (2.08 mm²) Electrical Specifications: OSI-RI-SS |
|---|
| Operating Voltage Range | 15 to 32 VDC (24 VDC nominal) |
|---|
| Maximum Standby Current | 13 mA @ 32 VDC (polling device once per second) 14 mA @ 24 VDC (polling device once per second) 20 mA @ 15 VDC (polling device once per second) |
|---|
| Maximum Alarm Current (LED on) | 22 mA @ 32 VDC (polling device once per second) 15 mA @ 24 VDC (polling device once per second) 22 mA @ 15 VDC (polling device once per second) Note: OSID-R devices are limited by SLC loop current draw restrictions. To determine the maximum number of detectors by loop, divide the panel’s normal operating current by 22mA, and round down. Environmental Specifications |
|---|
| Operating Humidity Range | 0 to 95% Relative Humidity, Non-condensing |
|---|
| Operating Temperature Range | UL-Listed for use from 32°F to 100°F (0°C to 37.8°C) Application Temperature Range: -20°C to +55°C (-4°F to 131°F) Operational Specifications |
|---|
| Protection Range | 16 ft to 328 ft (5 m to 100 m) |
|---|
| Adjustment Angle | 20 degrees vertical, 50 degrees horizontal |
|---|
| Sensitivity Levels | Level 1 25%, Level 2 30%, Level 3 40%, Level 4 50% |
|---|
| Fault Condition (Trouble) | Long-term drift reference out of 20% range, beam blockage or detector out of alignment, imager saturated. |
|---|
| Alignment Aid | LED directional arrows |
|---|
| Alarm Indicator | Local red LED and remote output |
|---|
| Trouble Indicator | Local yellow LED and remote trouble output |
|---|
| Normal Indicator | Local flashing green LED |
|---|
| Test/Reset Features | Local alarm test switch, local alarm reset switch, Remote test and reset switch (Compatible with RTS151 and RTS151KEY(-A) test stations), OSID-R test filter. |
|---|
| Smoke Detector Spacing | On smooth ceilings, 30-60 feet between projected beams and not more than one-half that spacing between a projected beam and a sidewall. Other spacing may be used depending on the ceiling height, airflow characteristics, and response requirements. See NFPA 72 (S524 in Canadian applications). |
|---|
| Voltage Range | 15 to 32 V |
|---|
| Maximum Current | 450 mA Max at 32 V |
|---|
| 功耗 | 7.7 W @ 24 V 15 W @ 32 V |
|---|

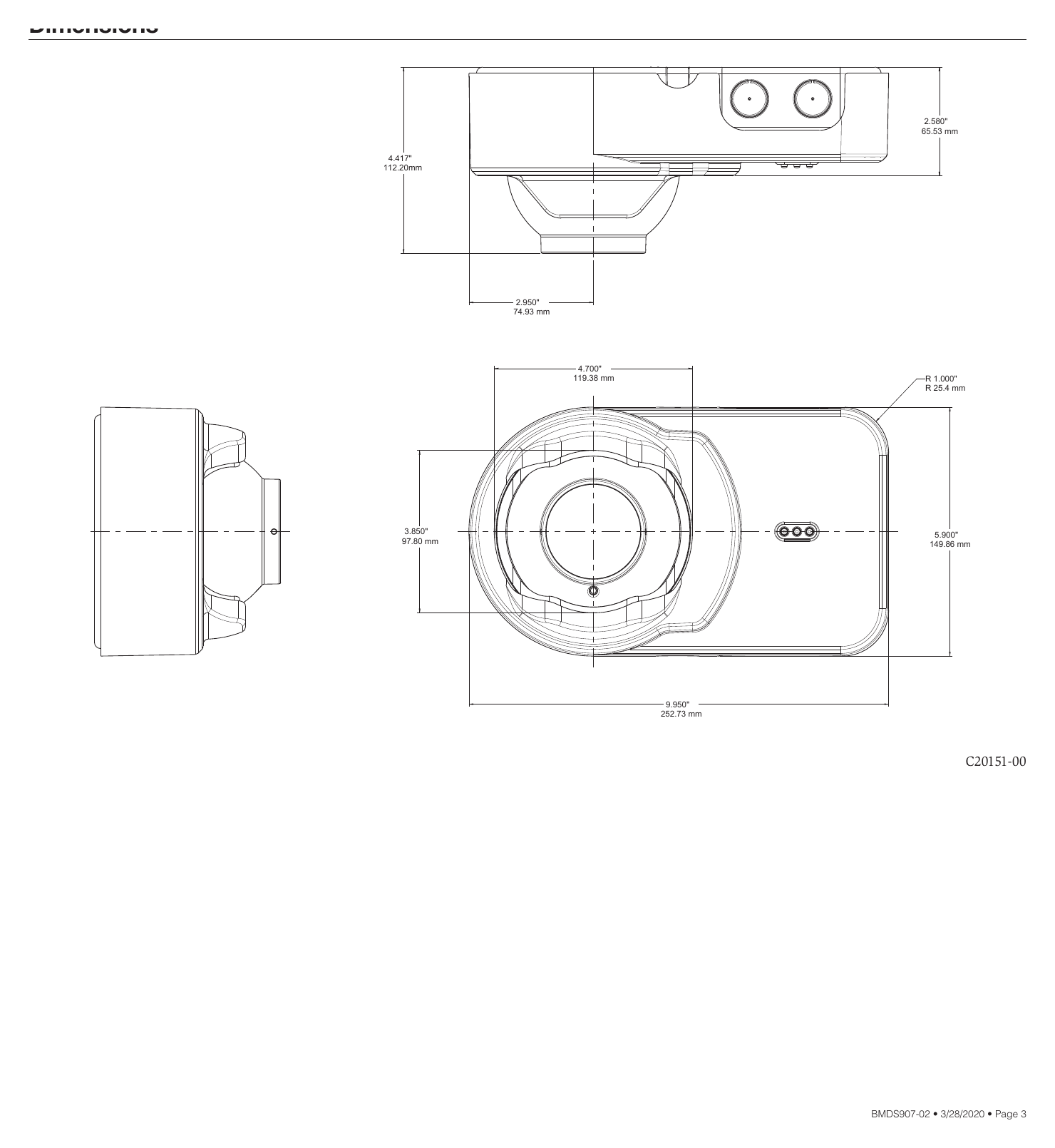

| Current Range | 9 mA Min to 11 mA Max 2.580" 65.53 mm 4.417" 112.20mm 2.950" 74.93 mm 4.700" 119.38 mm R 1.000" R 25.4 mm 3.850" 5.900" 97.80 mm 149.86 mm 9.950" 252.73 mm C20151-00 BMDS907-02 • 3/28/2020 • Page 3 |
|---|
| Part No. | Description |
|---|
| OSI-RI-SS | Intelligent imaging beam smoke detector including reflector, UL/ULC-listed |
|---|
| OSP-002 | Laser alignment tool |
|---|
| OSP-004 | Test filter, 10-pack |
|---|
| RTS151 | Remote test station, UL listed |
|---|
| RTS151KEY | Test and reset station with key lock, flush mount, UL listed |
|---|
| RTS151KEY-A | Test and reset station with key lock, flush mount, ULC listed |
|---|
| BEAMHKR | Heater kit for the reflector wall mounting with additional mounting adjustment ©2020 System Sensor. 3825 Ohio Avenue • St. Charles, IL 60174 Product specifications subject to change without notice. Visit systemsensor.com for current product information, including the latest version of this data sheet. |
|---|
