| SYSTEM | Centralised or distributed system 600 mm x 600 mm x 300 mm (Mild Steel) |
|---|
| Dimensions (H x W x D) | 800 mm x 600 mm x 300 mm (Mild Steel) 1200 mm x 600 mm x 300 mm (Mild Steel) 600 mm x 600 mm x 300 mm (Mild Steel) 800 mm x 600 mm x 300 mm (Mild Steel) |
|---|
| Front Panel Dimension | 483 mm x 222 mm |
|---|
| 工作溫度 | -20°C to +55°C |
|---|
| 儲存溫度 | -20°C to +55°C |
|---|
| 工作濕度 | 10% to 90% RH (non-condensing) |
|---|
| Input Voltage | 18-32 Vdc (24 Vdc nominal) |
|---|
| Voltage Ripple | 50 mVp-p (maximum) Green Power LED Red Alarm LED Yellow Fault LED Yellow Inhibit LED Alarm Accept Push Button, Alarm Reset Push Button; Alarm Buzzer |
|---|
| Relay Outputs | 2 System State Relays Redundant Control Centre Board (CCB) Ring Network Redundant RS485 Modbus |
|---|
| Interfaces | RTU interface Ethernet |
|---|
| 供電 | 18-32 Vdc (24 Vdc nominal) |
|---|
| DIN rail compatibility | TS-35 / 15 -40°C to 55°C |
|---|
| Operating Humidity Range | 10 to 90% RH (non-condensing) Up to 16 Input Modules (64 Input channels) per system Analogue Input Module 4-20 mA; 4-channels for 2 or 3 wire 20 mA detector signals Analogue Input Module mV-Bridge; 4-channels for mV-Bridge signals Digital Input Module; 4-channels for switched input devices Up to 32 Output Modules (128 Output channels) per system Relay Output Module; 4-channels incorporating 4 sing |
|---|
| Sensors | Catalytic or IR for combustible 4-20 mA transmitters Electrochemical for toxic and Oxygen Conventional smoke, heat and fire detectors 5, 7, 9, or 10-way Communication / Power Rail consists of 1 DIN Rail, 1 Ring Coupling Module (RCM) and 5, 7, 9, or 10-way backplanes |
|---|
| Power Supply mounted on | 24 Vdc, Power Supply Redundancy |
|---|
| Din-Rail | Module (RDN Module), Uninterruptible Power Supply Module (UPS) 24 V sealed lead acid battery, 12 Ah or 27 Ah options |
|---|
| Electrical Connection | 2 x 12 Vdc batteries in series |
|---|

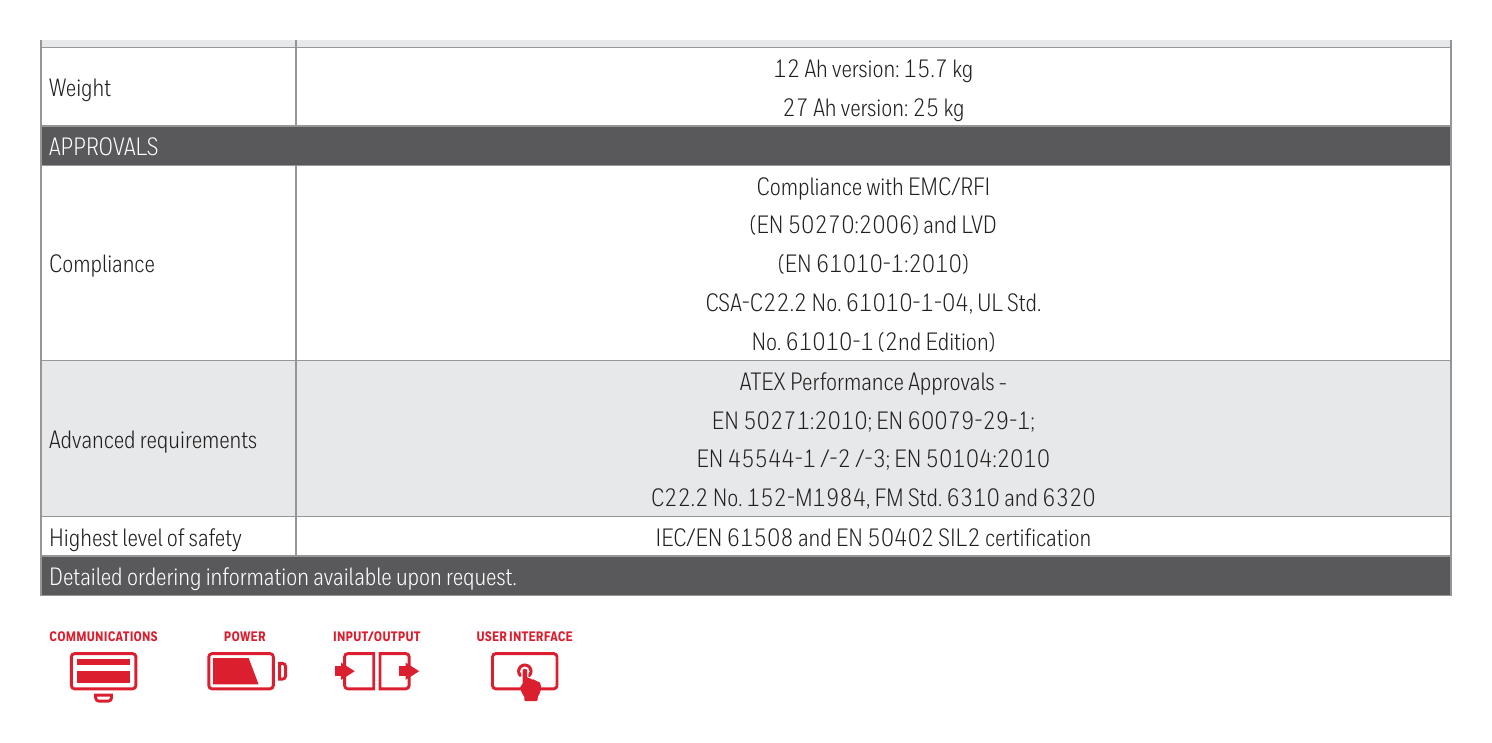

| Compliance | (EN 61010-1:2010) CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition) ATEX Performance Approvals - EN 50271:2010; EN 60079-29-1; EN 45544-1 /-2 /-3; EN 50104:2010 C22.2 No. 152-M1984, FM Std. 6310 and 6320 |
|---|
| Highest level of safety | IEC/EN 61508 and EN 50402 SIL2 certification |
|---|
| COMMUNICATIONS | POWER INPUT/OUTPUT USER INTERFACE |
|---|
| BUILD YOUR SYSTEM | 4 COMPLETE 1 2 3 |
|---|
| INPUT/OUTPUT | POWER COMMUNICATION/ |
|---|
| MODULES | SUPPLIES POWER RAIL FIXED GAS DETECTORS FLAMMABLE AND TOXIC FLAME DETECTORS HI-TECH GAS DETECTORS VISIBLE AND AUDIBLE ALARMS |
|---|
