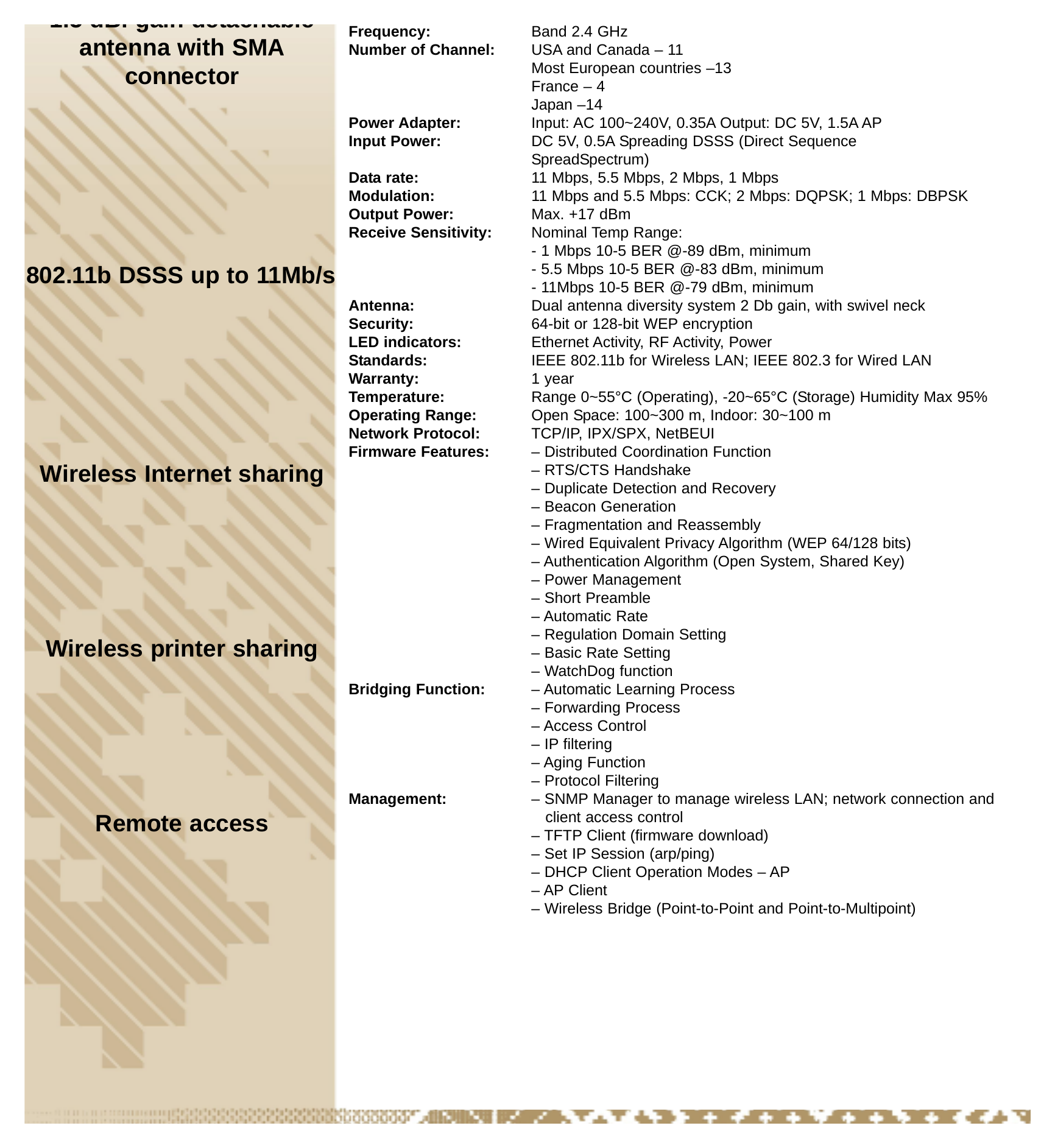

| Product Name: | 11 Mbps Wireless Multi-mode Access Point |
|---|
| 網絡接口 | 10/100 Mbps network interface |
|---|
| 尺寸 | 03mmX145mm Weight 330g 1.5 dBi gain detachable Frequency: Band 2.4 GHz |
|---|
| antenna with SMA | Number of Channel: USA and Canada – 11 Most European countries –13 |
|---|
| connector | France – 4 Japan –14 |
|---|
| Power Adapter: | Input: AC 100~240V, 0.35A Output: DC 5V, 1.5A AP |
|---|
| Input Power: | DC 5V, 0.5A Spreading DSSS (Direct Sequence SpreadSpectrum) |
|---|
| Data rate: | 11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps |
|---|
| Modulation: | 11 Mbps and 5.5 Mbps: CCK; 2 Mbps: DQPSK; 1 Mbps: DBPSK |
|---|
| Output Power: | Max. +17 dBm |
|---|
| Receive Sensitivity: | Nominal Temp Range: - 1 Mbps 10-5 BER @-89 dBm, minimum - 5.5 Mbps 10-5 BER @-83 dBm, minimum |
|---|
| Antenna: | Dual antenna diversity system 2 Db gain, with swivel neck |
|---|
| 安全 | 64-bit or 128-bit WEP encryption |
|---|
| LED indicators: | Ethernet Activity, RF Activity, Power |
|---|
| Standards: | IEEE 802.11b for Wireless LAN; IEEE 802.3 for Wired LAN |
|---|
| Warranty: | 1 year |
|---|
| Temperature: | Range 0~55°C (Operating), -20~65°C (Storage) Humidity Max 95% |
|---|
| Operating Range: | Open Space: 100~300 m, Indoor: 30~100 m |
|---|
| 網絡協議 | TCP/IP, IPX/SPX, NetBEUI |
|---|
| Firmware Features: | – Distributed Coordination Function |
|---|
| Wireless Internet sharing | – RTS/CTS Handshake – Duplicate Detection and Recovery – Beacon Generation – Fragmentation and Reassembly – Wired Equivalent Privacy Algorithm (WEP 64/128 bits) – Authentication Algorithm (Open System, Shared Key) – Power Management – Short Preamble – Automatic Rate – Regulation Domain Setting |
|---|
| Wireless printer sharing | – Basic Rate Setting – WatchDog function |
|---|
| Bridging Function: | – Automatic Learning Process – Forwarding Process – Access Control – IP filtering – Aging Function – Protocol Filtering |
|---|
| Management: | – SNMP Manager to manage wireless LAN; network connection and client access control |
|---|
| Remote access | – TFTP Client (firmware download) – Set IP Session (arp/ping) – DHCP Client Operation Modes – AP – AP Client – Wireless Bridge (Point-to-Point and Point-to-Multipoint) Mikrotikls Ltd. Pernavas 46, LV-1009, Riga, LATVIA Page 2 of 2 Phone: +371 7317700; Fax: +371 7317701; http://www.mikrotik.com |
|---|
