| 影像感測器 | 1/2.7" CMOS Sensor Default: 2560 x 1920 (5.0 megapixels) at Video Resolution 20 frames/sec |
|---|
| 鏡頭 | f=2.7-13.5mm F=1.6-3.3, with IR cut |
|---|
| 視頻壓縮 | H.264 • Horizontal: 27°- 96° Field of View • Vertical: 21°- 69° |
|---|
| 日夜切換 | IR-Cut filter with auto-switching Up to 30 meters (LED: 4pcs/28mil/ Infrared Night Vision 850nm) Spotlights: 5pcs/4W/6500K/450 Color Night Vision lumens) |
|---|
| Audio | Two-way audio |
|---|
| DC Power | 93 1A, <12W DC 12.0V 23 |
|---|
| 供電 | DC power port |
|---|
| System | Reset button |
|---|
| Ethernet | One 10M/100Mbps RJ45 |
|---|
| Storage | Micro SD card slot (Max. 256GB) |
|---|
| Frame Rate | 20fps) • Substream: 4fps - 15fps (default: 10fps) • Mainstream: 1024Kbps - 8192Kbps (default: 4096Kbps) • Substream: 64Kbps - 512Kbps (default: 256Kbps) |
|---|
| Browsers Supported | IE, Edge, Chrome, Firefox, Safari PC: Windows, Mac OS; Smartphone: iOS, Android Motion detection/human detection/ vehicle detection Motion recording (default); scheduled recording; 24/7 recording HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, |
|---|
| Protocols & Standards | UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P 20 Users (1 admin account & 19 user accounts); Support up to 12 |
|---|
| Maximal User Access | simultaneous video streams (10 substreams & 2 mainstreams) |
|---|
| Work with | Google Assistant |
|---|
| 無線標準 | IEEE 802.11a/b/g/n |
|---|
| Operating Frequency | 2.4GHz/5GHz |
|---|
| Wireless Security | WPA-PSK/WPA2-PSK Operating temperature: -10°C~+55°C (14°F~131°F) |
|---|
| Humidity | Operating humidity: 10% ~ 90% |
|---|
| Weatherproof | IP67 |
|---|
| 尺寸 | Φ80 x 72x 238mm |
|---|
| 重量 | 838g 2-year limited warranty. For support, |
|---|

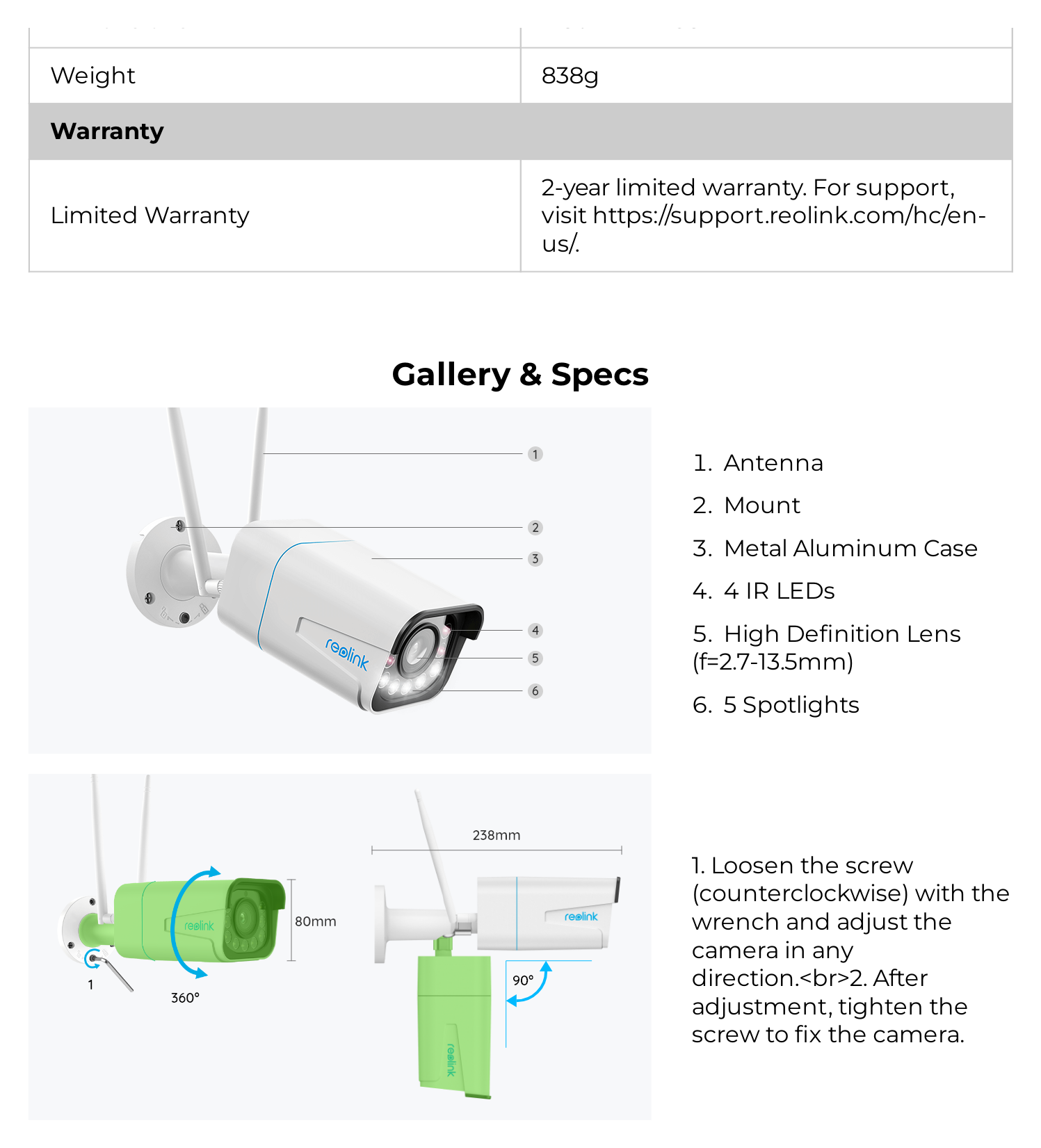

| Limited Warranty | visit https://support.reolink.com/hc/en- us/. Gallery & Specs 1. Antenna 2. Mount 3. Metal Aluminum Case 4. 4 IR LEDs 5. High Definition Lens (f=2.7-13.5mm) 6. 5 Spotlights 1. Loosen the screw (counterclockwise) with the wrench and adjust the camera in any direction.
2. After adjustment, tighten the screw to fix the camera. www.reolink.com |
|---|
