| Automatically recognize and add the new equipment to the network |
|---|
| Radio | 2.4GHz & 5GHz dual-band dual-stream |
|---|
| Protocol | 2.4GHz: 802.11 b/g/n；5GHz: 802.11a/b/g/n/ac |
|---|
| Spatial Streams | 2.4GHz: 2 Spatial Streams, 2x2 MIMO 5GHz: 2 Spatial Streams, 2x2 MIMO |
|---|
| Max | 2.4GHz: 300Mbps |
|---|
| Throughput | 5GHz: 867Mbps Up to 1167Mbps per AP |
|---|
| Transmit Power | ≤500mw（27dBm，RF transmit power only） |
|---|

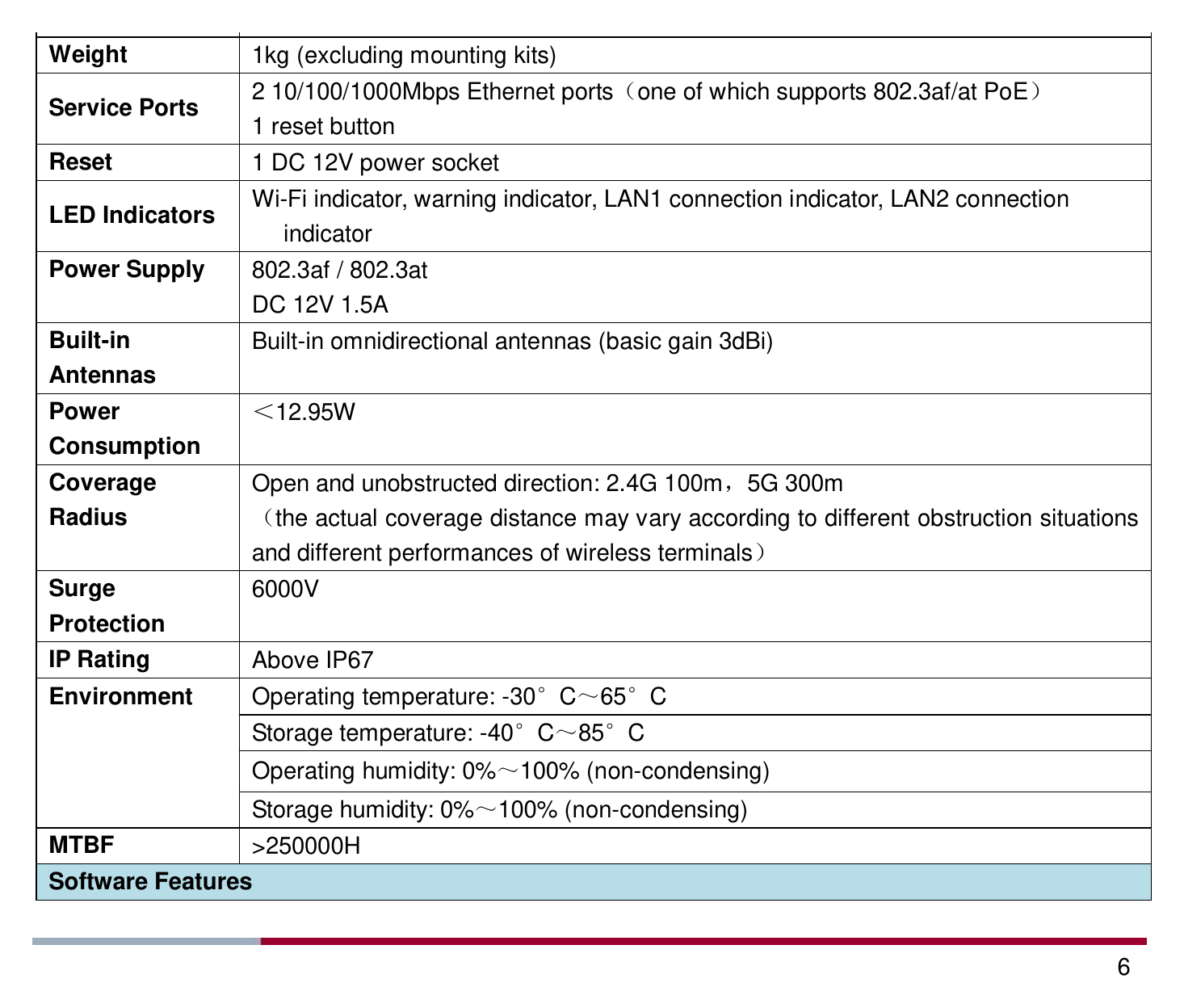

| 尺寸 | 200mm*220mm*166mm (excluding mounting kits) |
|---|
| 重量 | 1kg (excluding mounting kits) 2 10/100/1000Mbps Ethernet ports（one of which supports 802.3af/at PoE） 1 reset button |
|---|
| 重設 | 1 DC 12V power socket Wi-Fi indicator, warning indicator, LAN1 connection indicator, LAN2 connection indicator |
|---|
| 供電 | 802.3af / 802.3at DC 12V 1.5A |
|---|
| Built-in | Built-in omnidirectional antennas (basic gain 3dBi) |
|---|
| Coverage | Open and unobstructed direction: 2.4G 100m，5G 300m |
|---|
| Radius | （the actual coverage distance may vary according to different obstruction situations and different performances of wireless terminals） |
|---|
| Surge | 6000V |
|---|
| IP Rating | Above IP67 |
|---|
| Environment | Operating temperature: -30°C～65°C Storage temperature: -40°C～85°C Operating humidity: 0%～100% (non-condensing) Storage humidity: 0%～100% (non-condensing) |
|---|
| MTBF | >250000H |
|---|
| WLAN | Maximum number of clients: 164 Recommended number of clients: 96 Up to 8 SSIDs Support SSID hiding Configuring the authentication mode, encryption mechanism, and VLAN attributes for each SSID SSID-based and radio-based STA limit Support Layer 2 user isolation |
|---|
| 安全 | Support PSK authentication Support static blacklist and whitelist Support WPA (TKIP), WPA2 (AES), and WPA-PSK data encryption |
|---|
| Routing | Support static IP address and DHCP |
|---|
| Management | Support local or remote management with app |
|---|
| and | Support local management with web |
|---|
| maintenance | Support remote management with MACC platform |
|---|
| 管理平台 | Automatic RF adjustment via the platform |
|---|
| management | Unified configuration via the platform |
|---|
| features | Unified monitoring via the platform 802.11ac Wave2 high-power outdoor omnidirectional dual-band wireless access point, built-in high-gain omnidirectional antennas, maximum access rate: RG-EAP602 300Mbps+867Mbps, support 802.11a/b/g/n/ac, DC power supply and PoE (DC power adapter or PoE power module are sold separately) |
|---|
