Samsung PM1743 網絡設備安裝・保養

Name: SAMSUNG Samsung PM1743 MA
Brand: samsung
SKU: Samsung PM1743

產品簡介

samsung Samsung PM1743 為MA，HKEZIT 提供原廠行貨連保養、上門安裝、調試及使用教學一站式服務。詳細規格以下方原廠 Datasheet 欄位為準，歡迎聯絡我們查詢 Samsung PM1743 香港價格連安裝報價。

Data Sheet：SAMSUNG PROPRIETARY Samsung SSD 980 PRO
Usage Application：Client PCs
接口：PCIe Gen 4.0 x4, NVMe 1.3c
Capacity1)：250GB 500GB 1TB 2TB
Controller：Samsung in-house Controller

HKEZIT 提供原廠行貨保養。硬件連專業安裝、設定及使用教學一站式報價，無需自行研究安裝與設定。我們同時承接裝WIFI、裝ROUTER、裝FIREWALL工程，硬件與工程同一團隊負責。

查詢價格連安裝 →

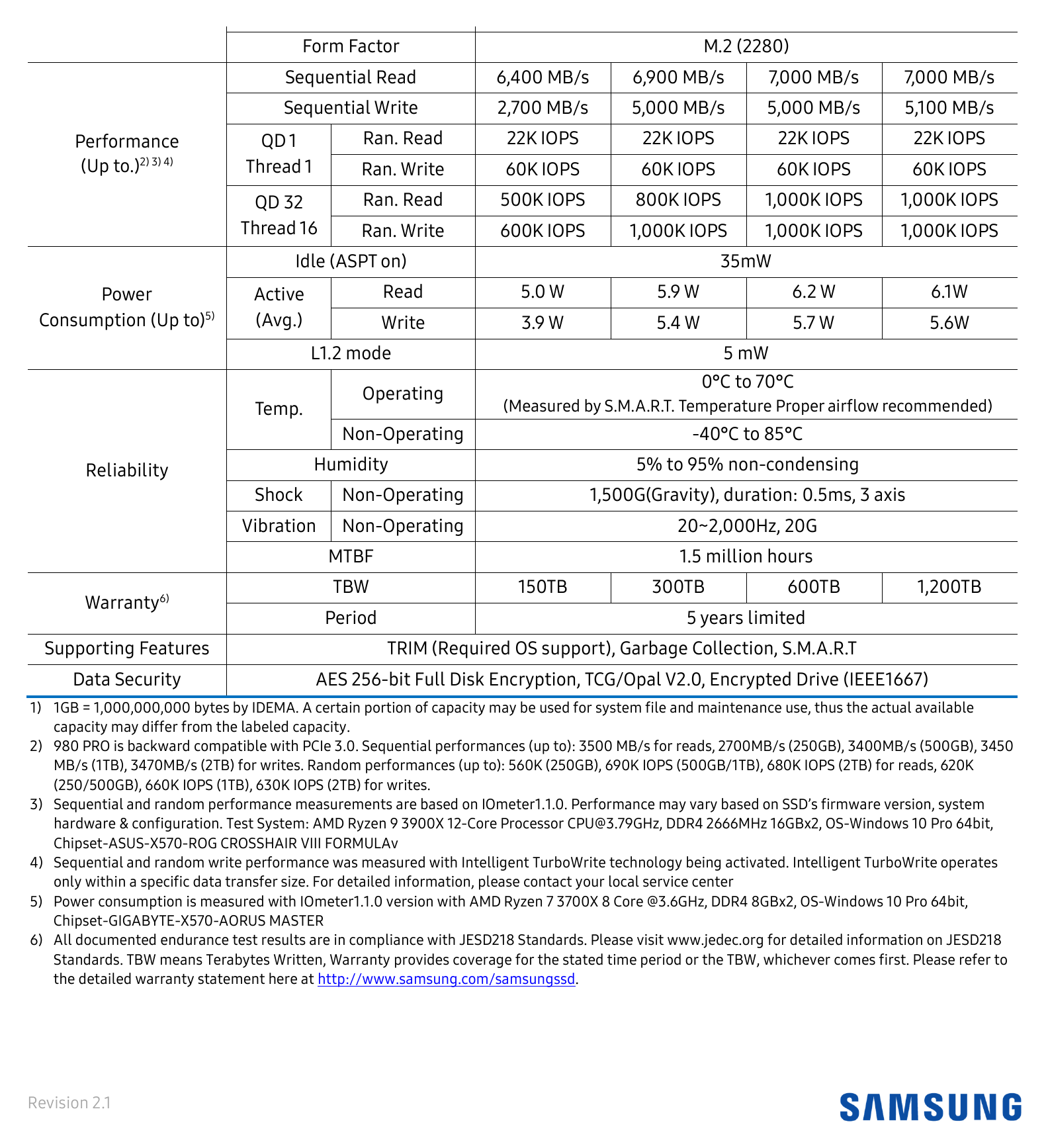

詳細規格

Data Sheet	SAMSUNG PROPRIETARY Samsung SSD 980 PRO
Usage Application	Client PCs
接口	PCIe Gen 4.0 x4, NVMe 1.3c
Capacity1)	250GB 500GB 1TB 2TB
Controller	Samsung in-house Controller
NAND Flash Memory	Samsung V-NAND 3bit MLC Hardware Information
DRAM Cache Memory	512MB LPDDR4 1GB LPDDR4 2GB LPDDR4
尺寸	Max 80.15 x Max 22.15 x Max 2.38 (mm)
Form Factor	M.2 (2280)
Sequential Read	6,400 MB/s 6,900 MB/s 7,000 MB/s 7,000 MB/s
Sequential Write	2,700 MB/s 5,000 MB/s 5,000 MB/s 5,100 MB/s
Performance	QD 1 Ran. Read 22K IOPS 22K IOPS 22K IOPS 22K IOPS (Up to.)2) 3) 4) Thread 1 Ran. Write 60K IOPS 60K IOPS 60K IOPS 60K IOPS
QD 32	Ran. Read 500K IOPS 800K IOPS 1,000K IOPS 1,000K IOPS
Thread 16	Ran. Write 600K IOPS 1,000K IOPS 1,000K IOPS 1,000K IOPS
Idle (ASPT on)	35mW
供電	Active Read 5.0 W 5.9 W 6.2 W 6.1W
Consumption (Up to)5)	(Avg.) Write 3.9 W 5.4 W 5.7 W 5.6W
L1.2 mode	5 mW 0°C to 70°C Operating
Temp.	(Measured by S.M.A.R.T. Temperature Proper airflow recommended)
Non-Operating	-40°C to 85°C
Reliability	Humidity 5% to 95% non-condensing
Shock	Non-Operating 1,500G(Gravity), duration: 0.5ms, 3 axis
Vibration	Non-Operating 20~2,000Hz, 20G
MTBF	1.5 million hours
TBW	150TB 300TB 600TB 1,200TB Warranty6)
Period	5 years limited
Supporting Features	TRIM (Required OS support), Garbage Collection, S.M.A.R.T
Data Security	AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667) capacity may differ from the labeled capacity. MB/s (1TB), 3470MB/s (2TB) for writes. Random performances (up to): 560K (250GB), 690K IOPS (500GB/1TB), 680K IOPS (2TB) for reads, 620K (250/500GB), 660K IOPS (1TB), 630K IOPS (2TB) for writes. hardware & configuration. Test System: AMD Ryzen 9 3900X 12-Core Processor CPU@3.7
Density	Model Name Box Contents Model Code
Samsung SSD 980 PRO 250GB	MZ-V8P250BW 250GB* MZ-V8P250
Warranty Statement	MZ-V8P250B/AM
Samsung SSD 980 PRO 500GB	MZ-V8P500BW 500GB* MZ-V8P500
Read/Write Performance	Power Consumption
OS	Windows 10 Pro 64bit Windows 10 Pro 64bit
CPU	AMD Ryzen 9 3900X 12-Core CPU@3.79GHz AMD Ryzen 7 3700X 8 Core @3.6GHz
Memory	DDR4 2666MHz 16GBx2 DDR4 8GBx2
Chipset	ASUS-X570-ROG CROSSHAIR VIII FORMULAv GIGABYTE-X570-AORUS MASTER
Test Program	IOmeter 1.1.0 IOmeter 1.1.0 The test values in the review were obtained under the following BIOS settings. 1) BIOS version: 1201(2019/11/18) 2) Advanced/AMD CBS/CPU Common Options/Global C-state Control: Auto -> Disabled 3) Overclock 3-1) Ai Overclock Tuner: Default -> Manual 3-2) Memory Frequency: Auto -> DDR4-3600MHz 3-3) Core Performance Boost: Auto -> Disabled 3-4) CPU Core Ratio: Auto -> 43.7
Description	Revision Date Number 1.0 Initial Release August, 2020 1.1 SKU information and test configuration is added September, 2020 2.0 2TB Model added January, 2021 2.1 The footnote 4 is fixed, the controller name is deleted February, 2021
